Vacuum Pump: Service and Repair

Brake vacuum pump -V192-
There are no provisions for servicing the brake vacuum pump -V192-. If a malfunction is detected the brake vacuum pump -V192- must be replaced.
The brake vacuum pump -V192- is located lower left on the subframe.

Removing





^ Remove bolts -1- on bracket for brake vacuum pump-V192-.
^ Remove hose -arrow- off brake vacuum pump -V192-.
^ Take out brake vacuum pump -V192-.

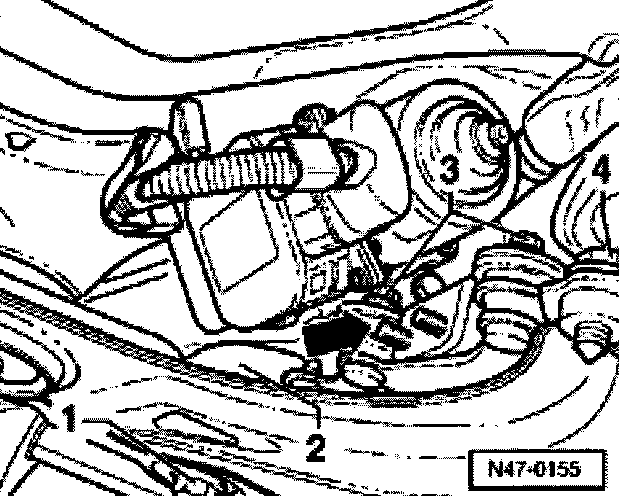

^ Bracket -arrow- for brake vacuum pump -V192-.
^ Remove lock nut -2- from bolt -1-.
^ Remove bolt -4- and take bracket out.
^ Remove bolts -3- to disassemble the bracket -arrow- further.

Installing
Install in reverse order.

Tightening torques
Torx socket head bolt for brake vacuum pump -V192 to bracket - 8 Nm
Nut -2- to bracket - 20 Nm
Bolts -3- to bracket - 8 Nm
Bolt-4- to bracket - 20 Nm
