Volkswagen
>>
2000
>>
GTI (1J1) V6-2.8L (AFP)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Stations
>>

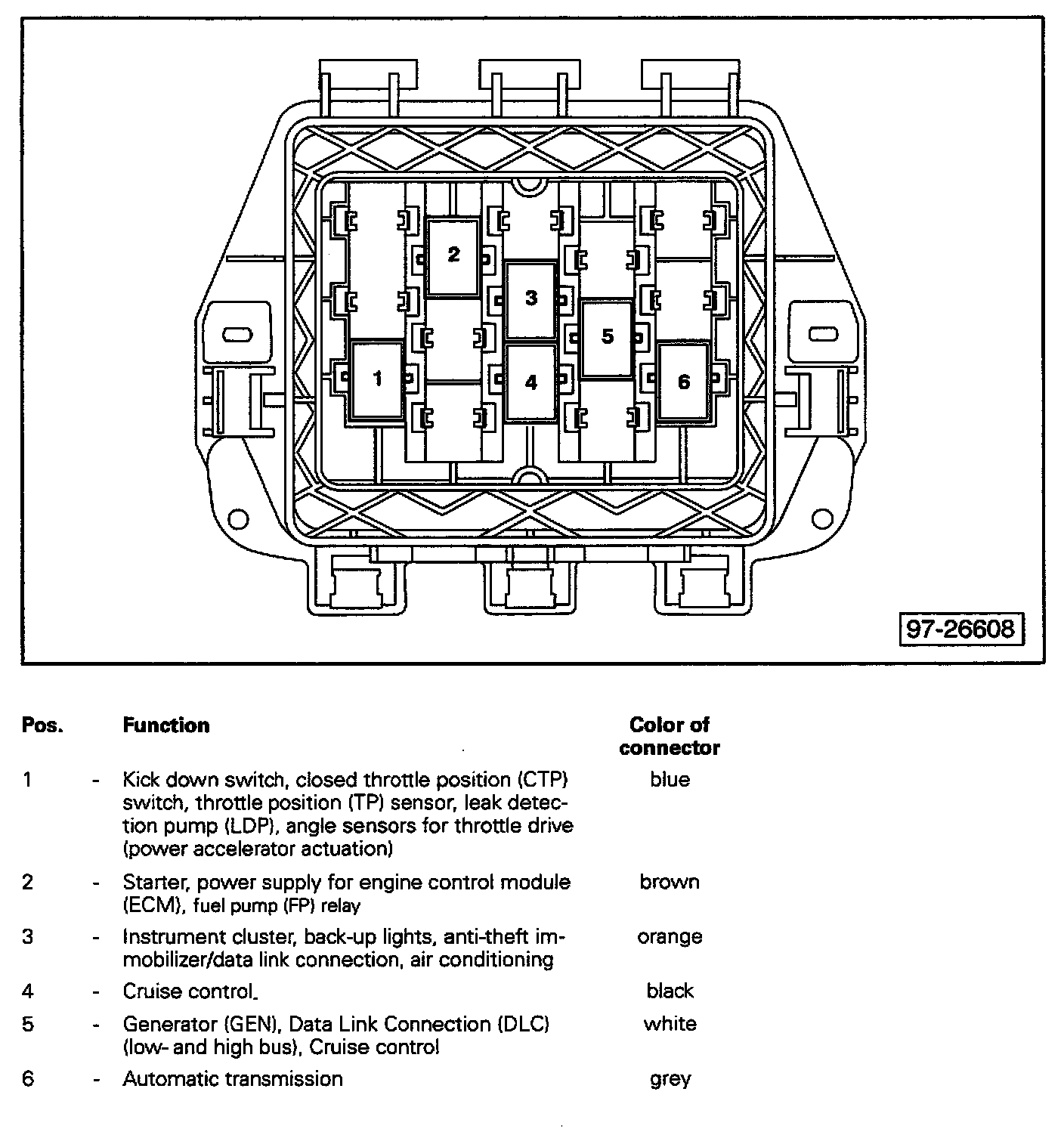

Connector Station In Protective Housing, In Plenum Chamber Left
Connector Station In Protective Housing, In Plenum Chamber Left
Connector Station In Protective Housing, In Plenum Chamber Left
