Quarter Window Glass: Locations

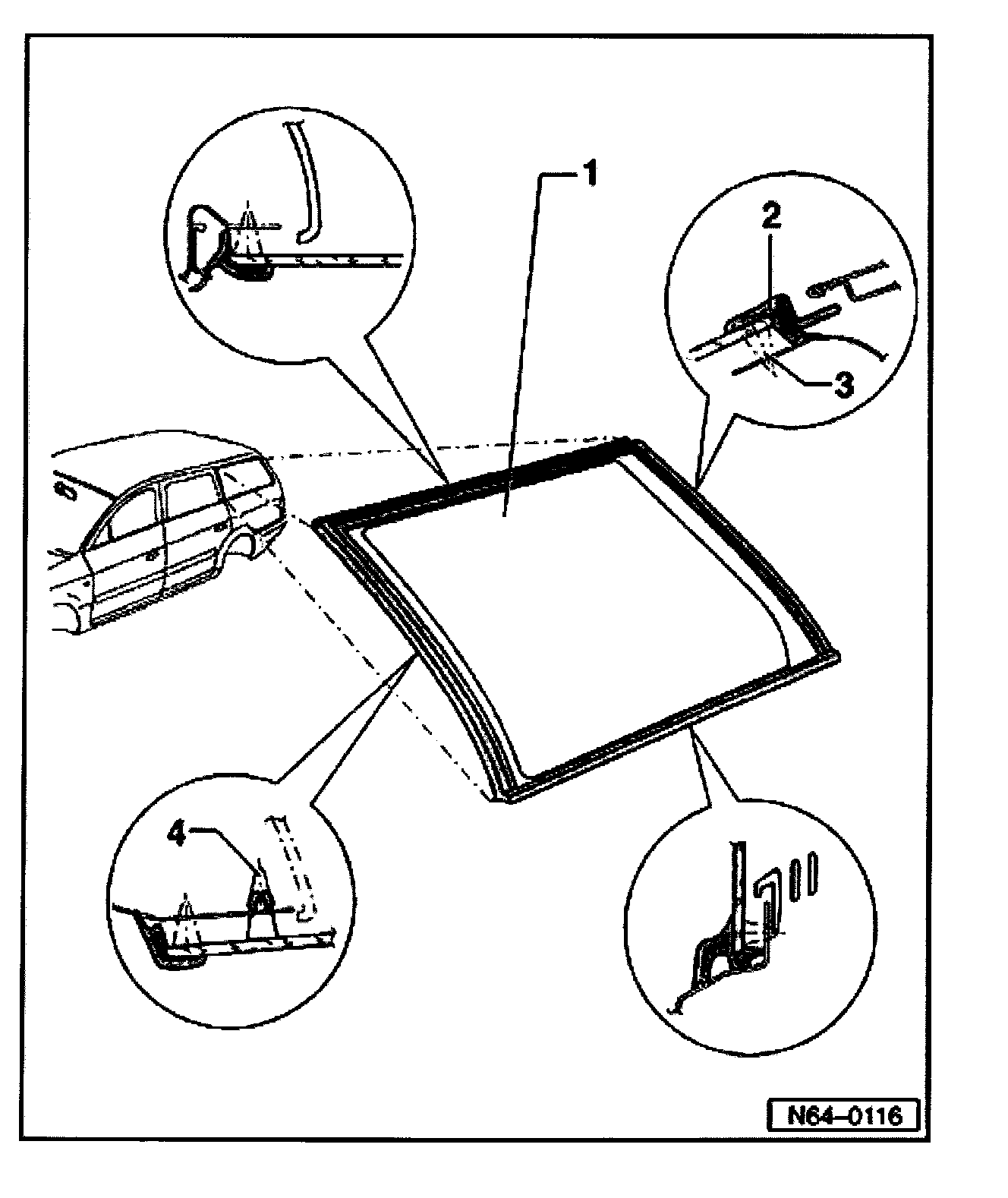

Side Window, Assembly Overview






1. Side window
Side window has no pre-coating

2. Seal with spacer (component of window)

3. PUR adhesive sealant
Cross section of bead:
Width = 8 mm
Height = 12 mm
including residual material on window glass and window flange

4. Securing pin: Qty. 2
Secure side window between rear door and trunk lid
