Air Injection Relief Valve: Locations

N152, N112, S162, S163, S176, S177:

N112:

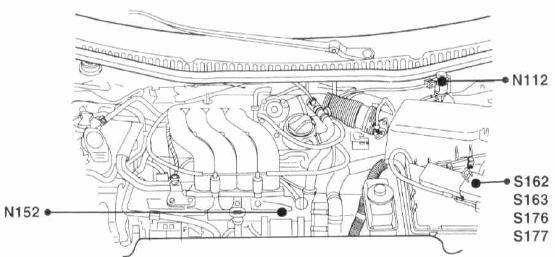

Component View

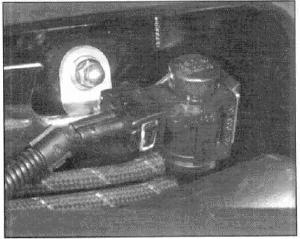

N112 Secondary Air Injection (AIR) Solenoid Valve
^ In engine compartment, left side, to rear of air cleaner housing
