Windshield Washer Spray Nozzle: Adjustments

Windshield Washer Jets, Checking And Adjusting


CAUTION!
Washer jets must not be cleaned opposite to the spray direction, e.g.: blown through from front


> m.y. 1999

Washer jets are preset but small height adjustments can be made.

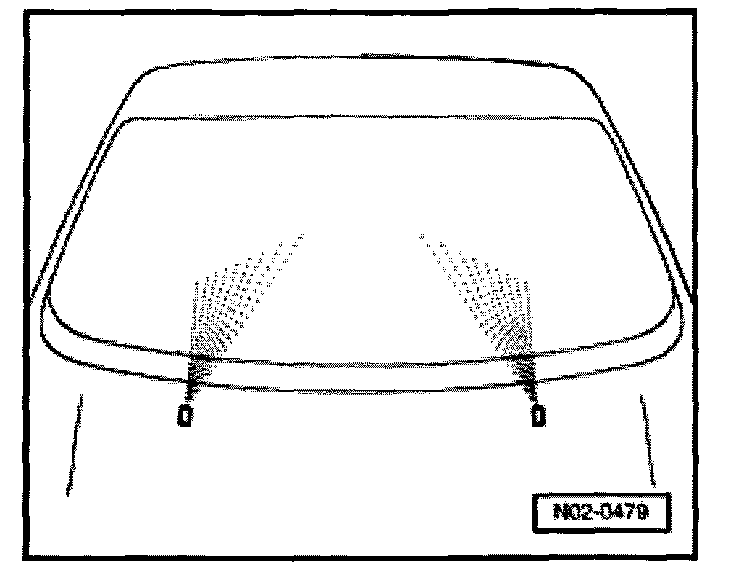

- If both spray fields are not at the same height (as illustrated), correct as follows:







- Slightly turn eccentric on spray jet in direction of arrow with a screwdriver.
