Air Injection Pump: Locations
T42, V101, V50:
Component Location View
V101:

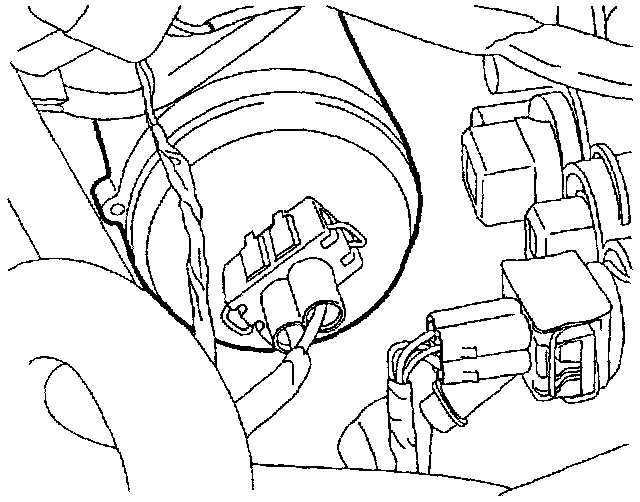

Component View
V101 Secondary Air Injection (AIR) pump motor
- Below intake manifold, left-side
- Near thermostat housing
Component Location View
Component View
V101 Secondary Air Injection (AIR) pump motor
- Below intake manifold, left-side
- Near thermostat housing
