Heater Core/Bulkhead Seal, Installation Position

Heater core/bulkhead seal, installation position

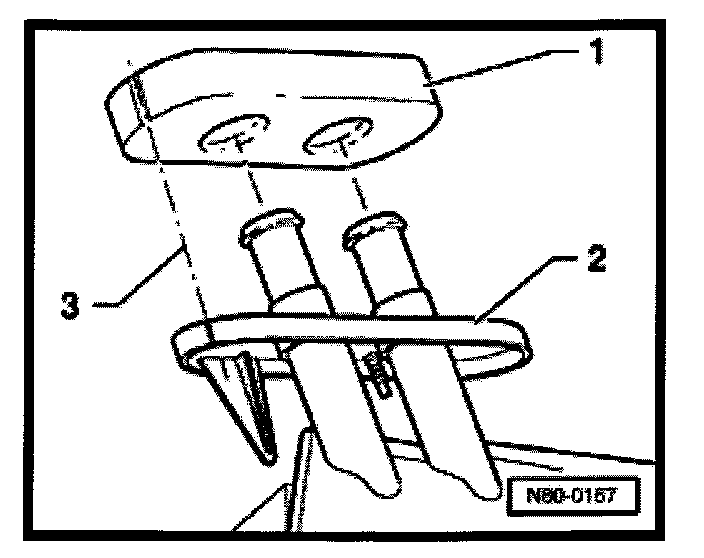

The seal between the heater core and the bulkhead has a positioning mark.
- Install seal -1- so that the notches on the seal and the base plate -2- align -3-.
