Central Locking System - Function Options
Group: 01Number: 98-16
Date: Nov. 25, 1998
Subject:
Central Locking System, Function Options
Model(s):
Passat 1998
New Beetle
Supersedes T.B. Group 01 Number 98-01 dated Mar. 25, 1998
Note:
Supersession due to m.y change only.
Condition
Customer refers to statements in the Owner's Manual indicating that specific remote/central locking functions can be "activated" by a Volkswagen Dealer.
Service
First review Owner's Manual with customer to confirm the desired function changes. Then refer to Table of Contents below and select appropriate options.
Note:
^ For New Beetle models, the following Information is contained in Repair Manual, Body, On Board Diagnostic (OBD), Repair Group 01.
^ For Passat models, the following information will be included in the Repair Manual at the next update.
Table of Contents
Description
Unlocking options
Locking options
Adaptation example
Unlocking options
^ Selective unlocking (--> Owner's Manual for detailed description)
^ All doors unlock simultaneously
- Connect VAG 1551/1552 Scan Tool to Data Link Connector (DLC) --> Repair Manual, Body, On Board Diagnostic (OBD), Repair Group 01.
For Passat & New Beetle with Power Windows:
- Enter address word 46, Comfort System and select function 07, Code Control Module.
For New Beetle without Power Windows:
- Enter address word 35, Central Locking System and select function 07, Code Control Module.

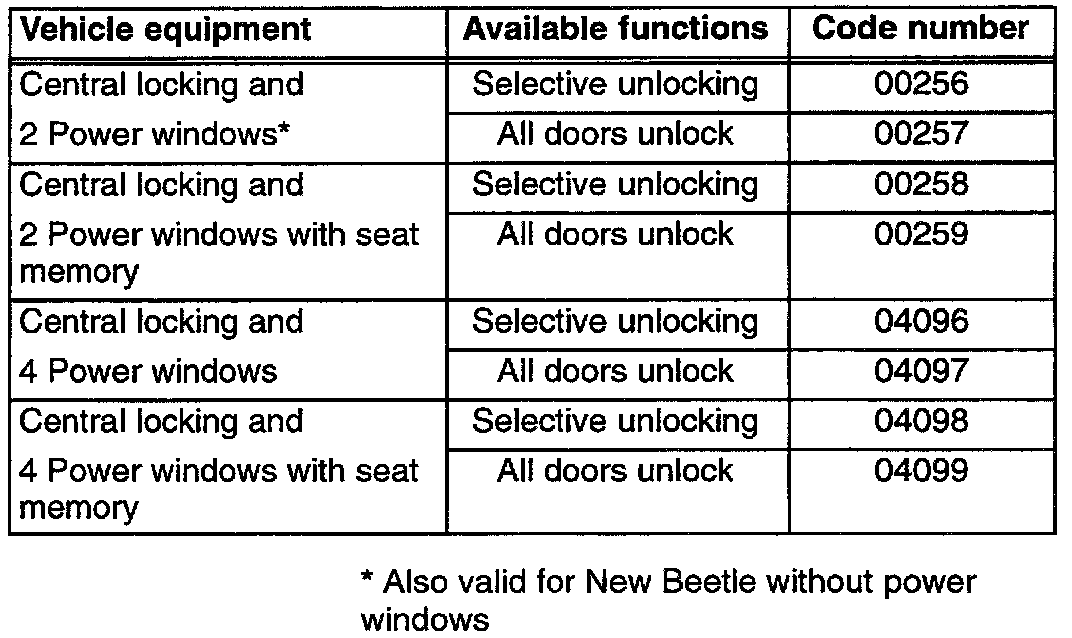

- Review available function descriptions in the table above and enter corresponding Control Module code based on applicable equipment.
- After entering code number, confirm entry with -Q- button.
Locking options
^ Automatic lock/unlock* (all doors are locked automatically at 15 km/h /10 mph and unlocked when key is removed from ignition switch).
^ Alarm system confirmation signals on or off
* May not be possible on Passat built prior to 08.97
- Connect VAG 1551/1552 Scan Tool to Data Link Connector (DLC) --> Repair Manual, Body, On Board Diagnostic (OBD), Repair Group 01.
For Passat & New Beetle with Power
Windows:
- Enter address word 46, Comfort System and select function 10, Adaptation.
For New Beetle without Power Windows:
- Enter address word 35, Central Locking System and select function 10, Adaptation.

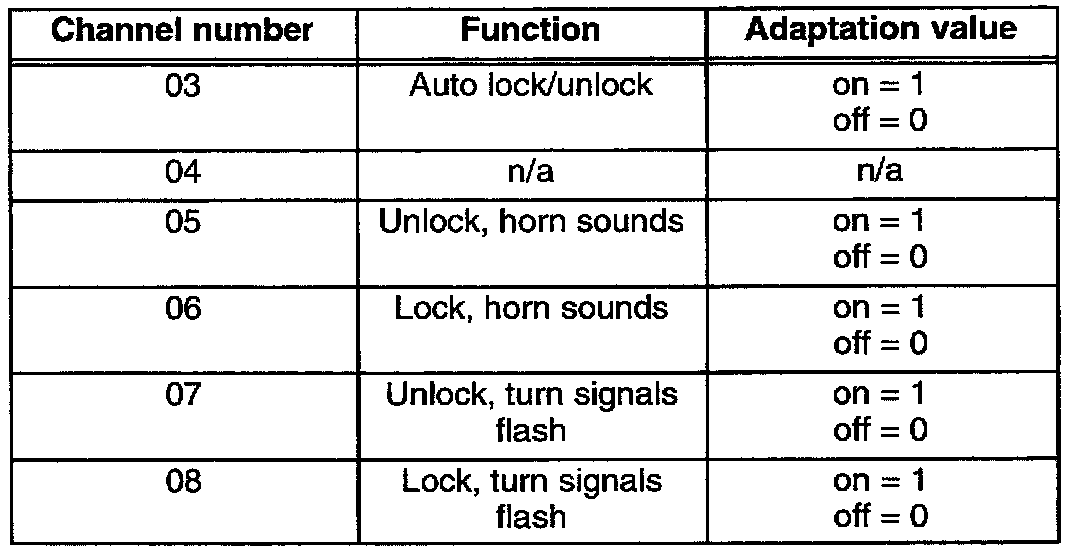

- Review available channel function descriptions in the table above.
- Using the VAG 1551/1552 keypad, enter the corresponding adaptation value either directly or step-by-step.
Step-by-step adaptation example (activating "Auto lock/unlock"):

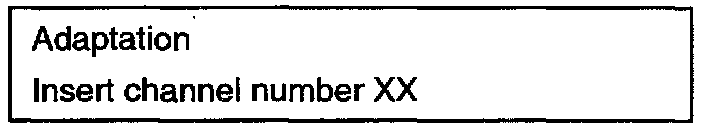

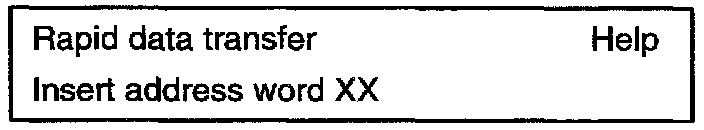

Indicated on display:
- Press buttons -0- and -3- to insert channel 3 (Auto lock/unlock function).
Indicated on display:
- Press -Q- button to confirm input.

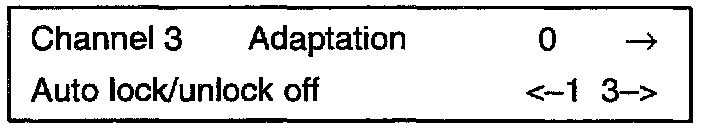

Indicated on display (0 = Auto lock/unlock off):
- Press --> button

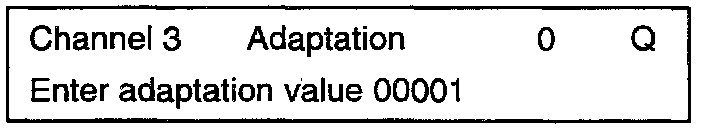

Indicated on display:
- Press -->button.
- Press -0- button four times and -1- button once.

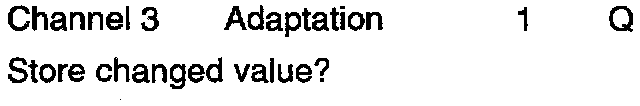

Indicated on display:
- Press -Q- button to confirm input.

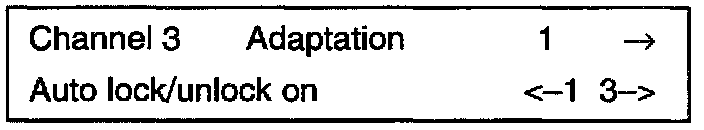

Indicated on display (1 = Auto lock/unlock on):
- Press --> button.
Indicated on display:
- Press -Q- button to confirm input.

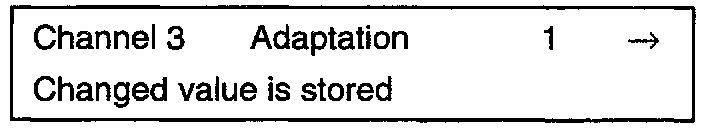

Indicated on display:
- Press --> button
Indicated on display:
- Press buttons -0- and -6- to select function 06, "End Output".
Indicated on display:
- Disconnect VAG 1551/1552 from Data Link Connector (DLC)
