ABS And ABS/EDL - On Board Diagnostic Update
Group: 01Number: 98-04
Date: May 1, 1998
File this Technical Bulletin in Repair Manual No: W42 008 198 110
Subject:
ABS & ABS / EDL On-Board Diagnostic, Update
Model(s):
New Beetle 1998 -->
This Bulletin includes new or revised information which will be integrated into the Repair Manual at the next update.

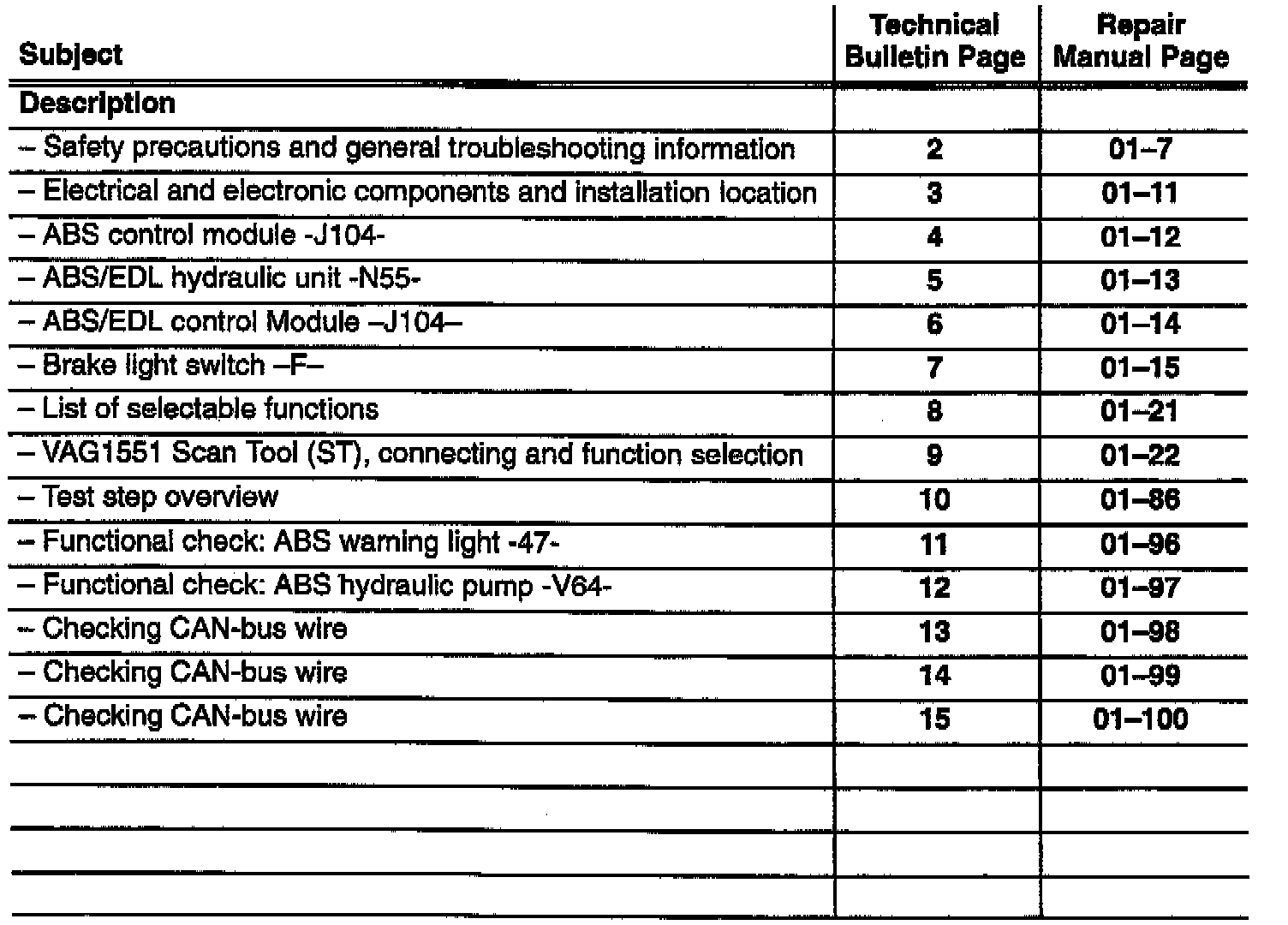

Contents

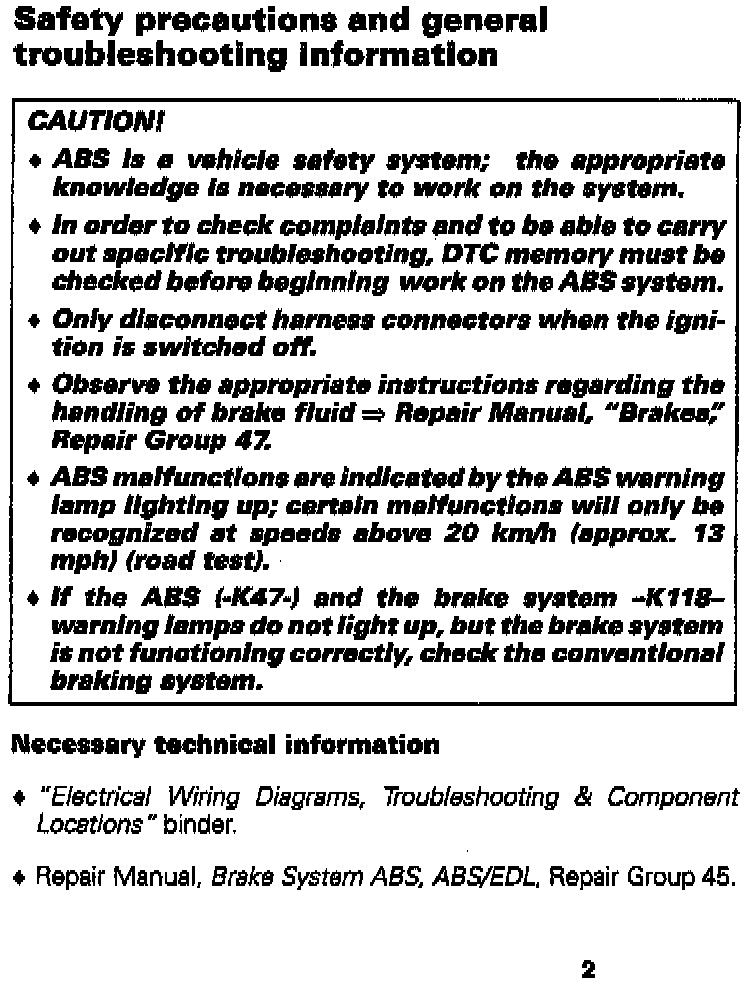

Safety precautions and general troubleshooting information

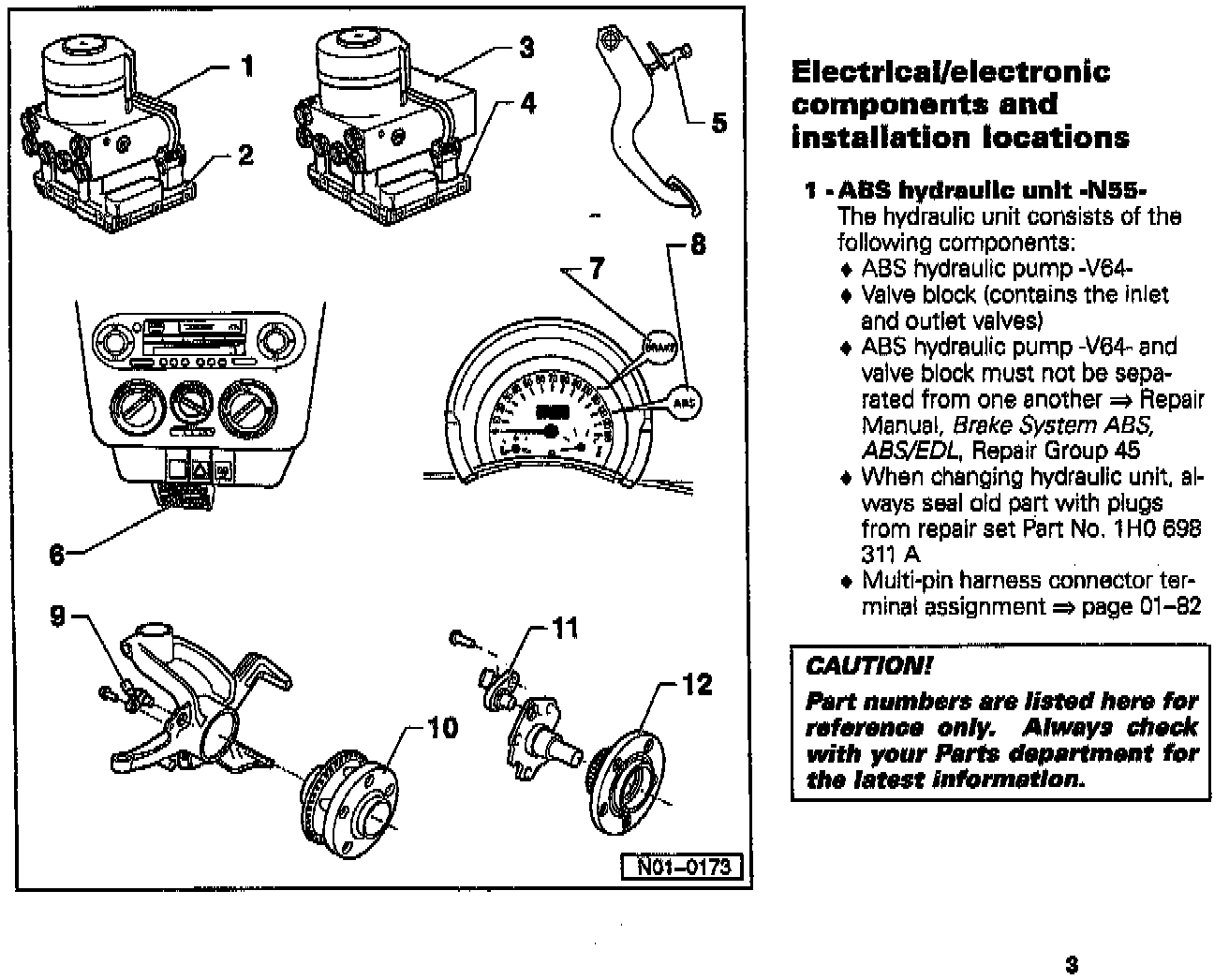

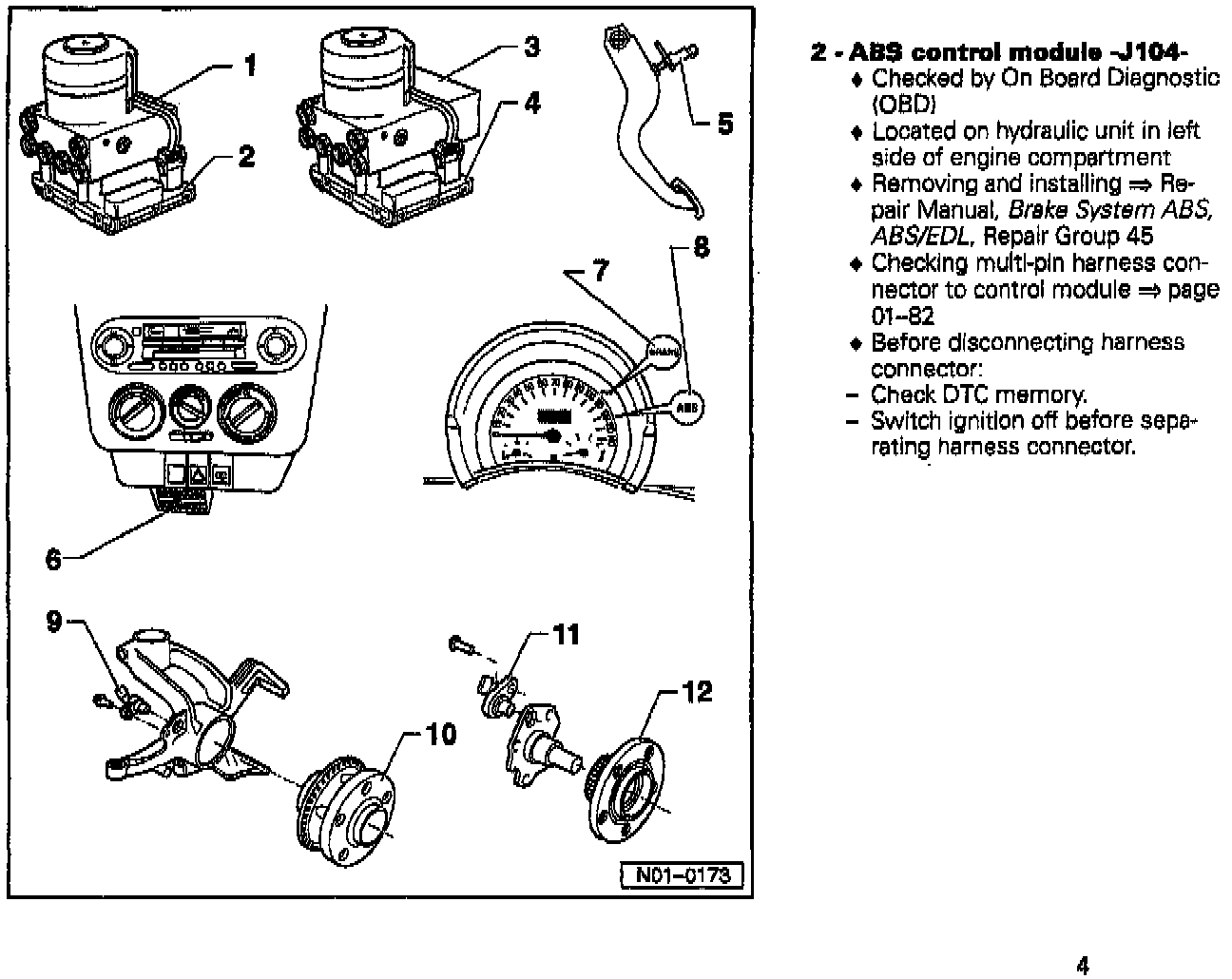

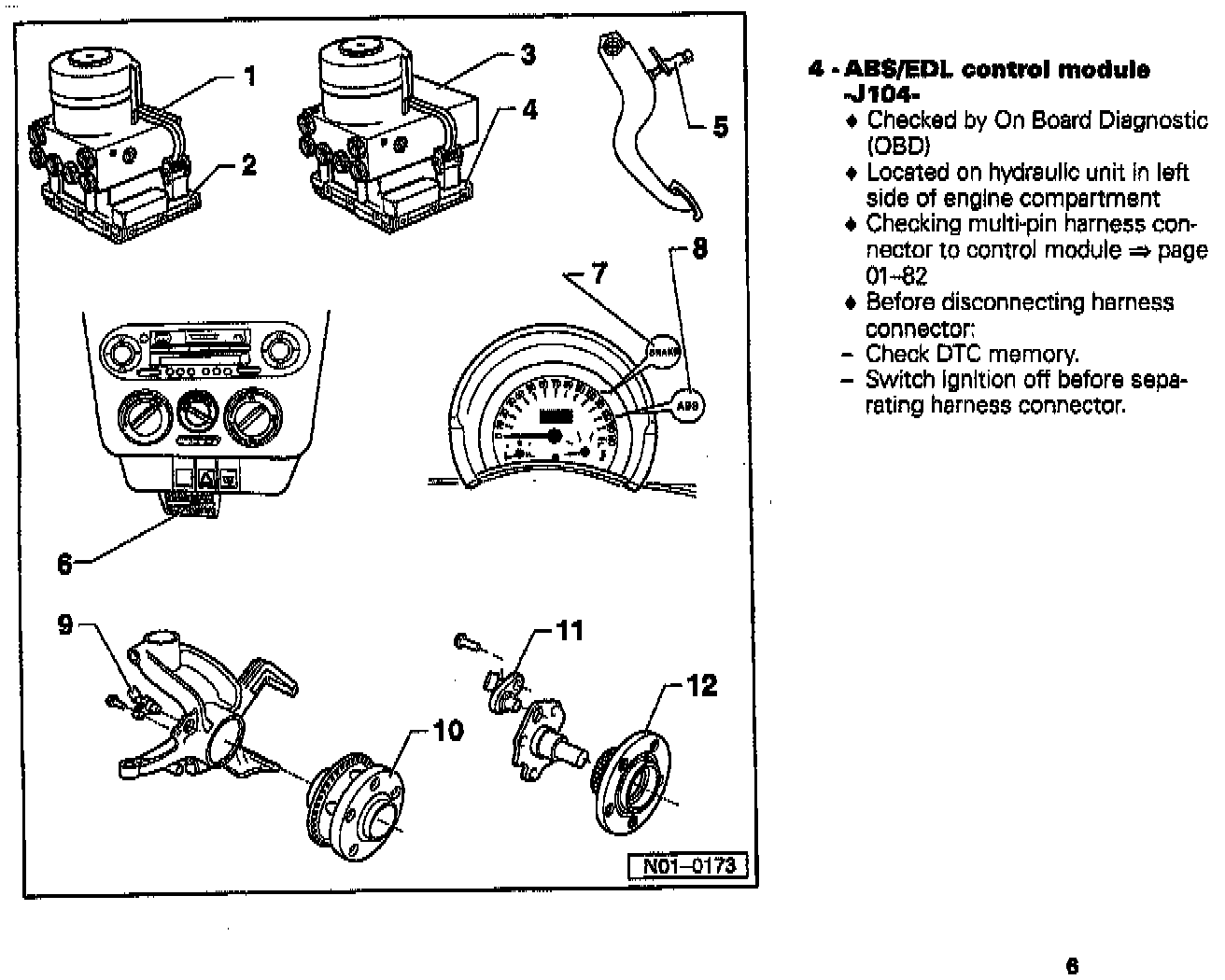

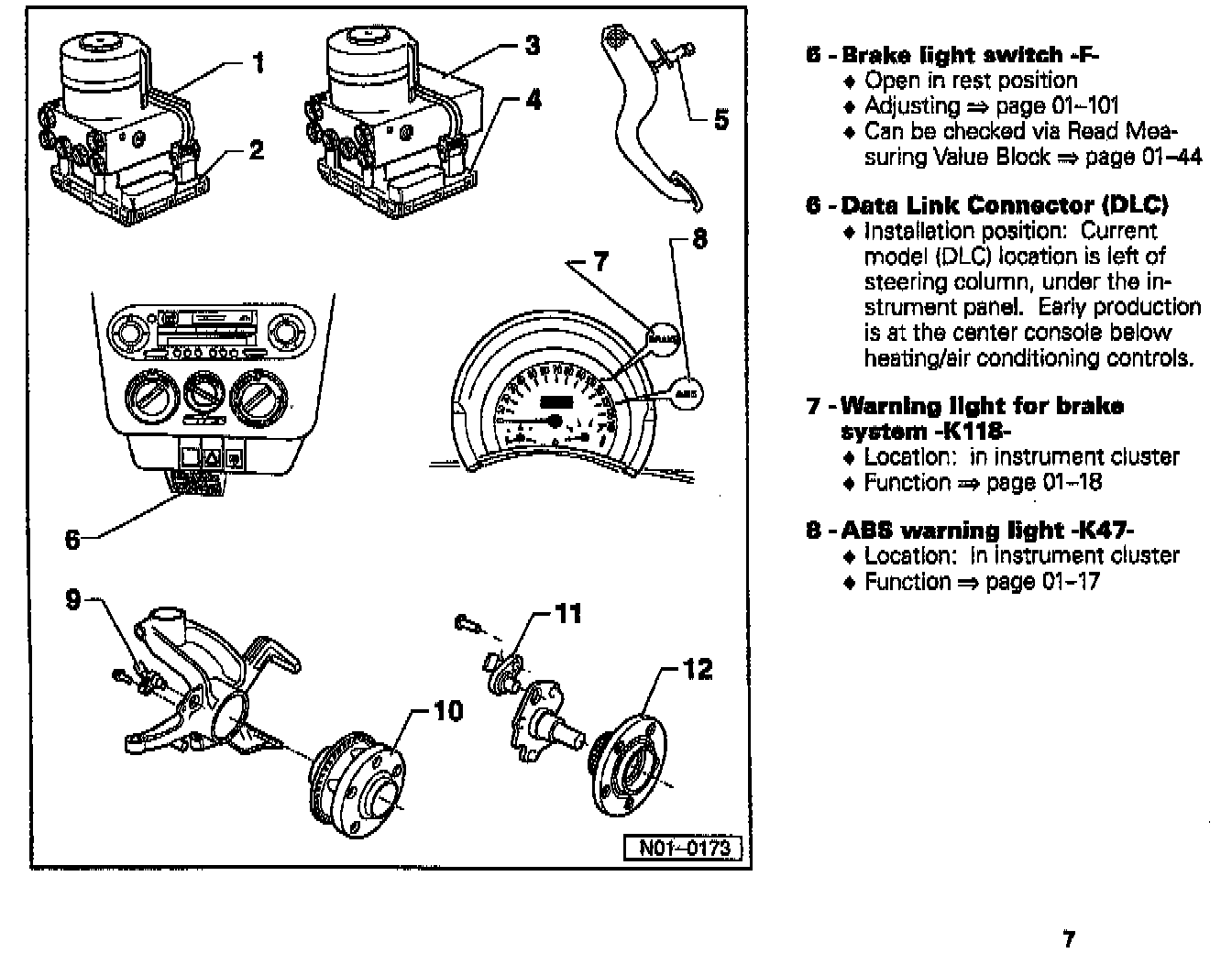

Electrical/electronic components and installation locations

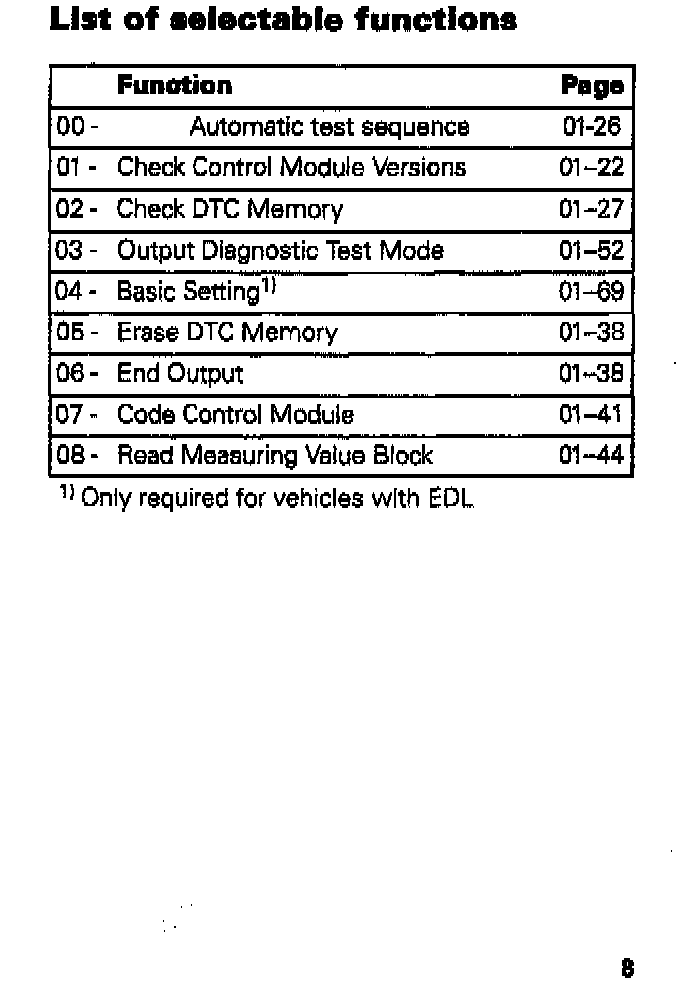

List of selectable function

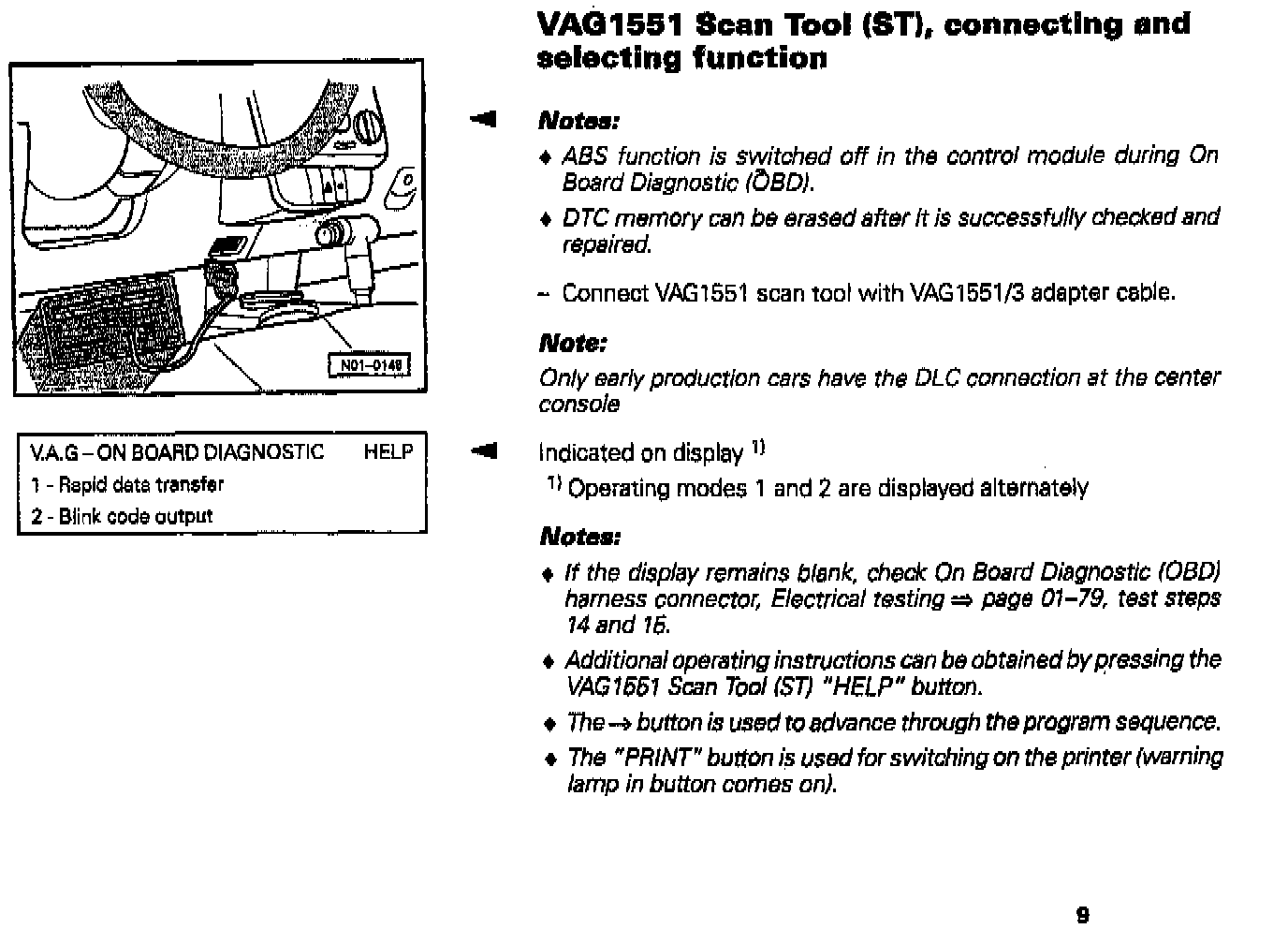

VAG 1551 Scan Tool (ST), connecting and selecting functions

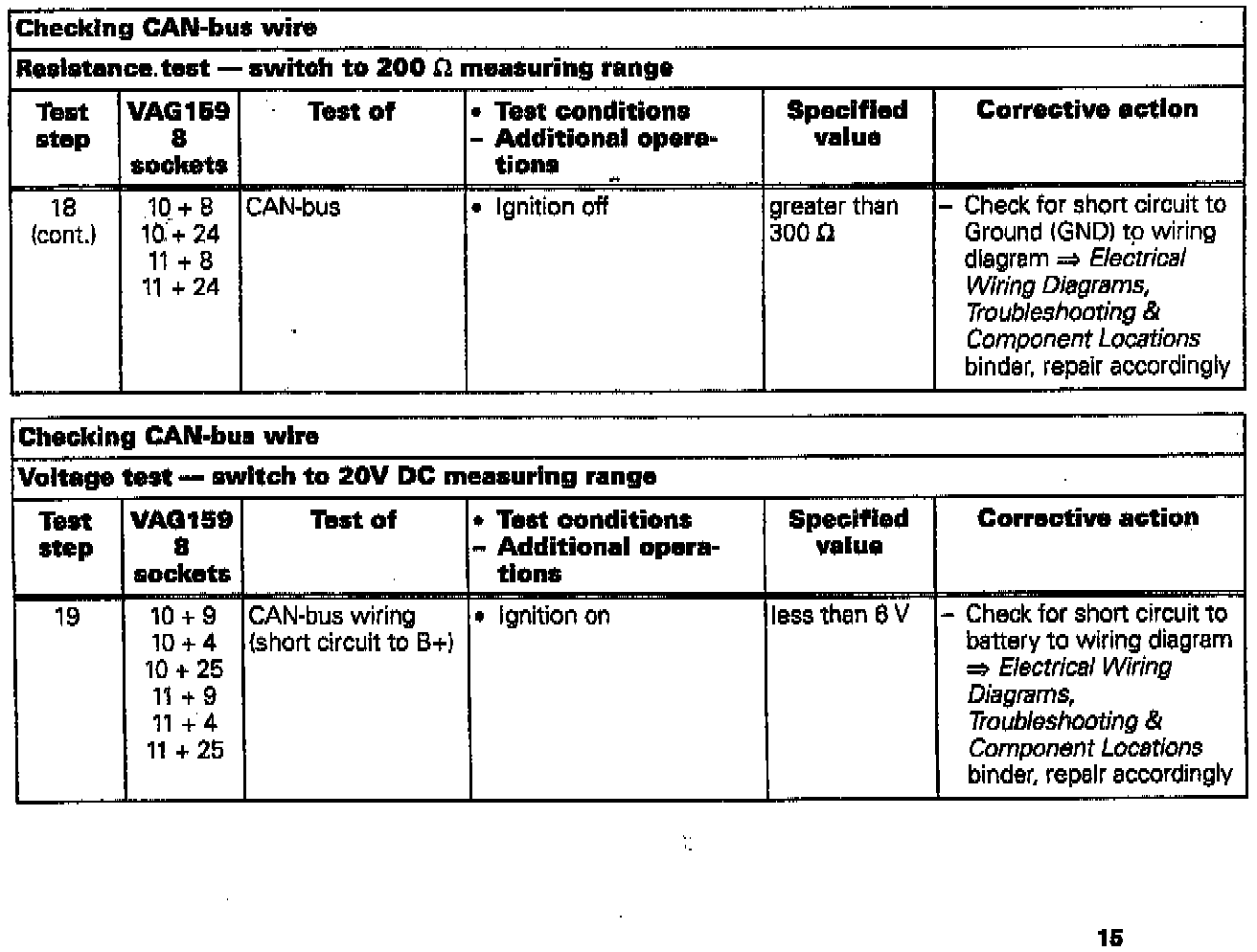

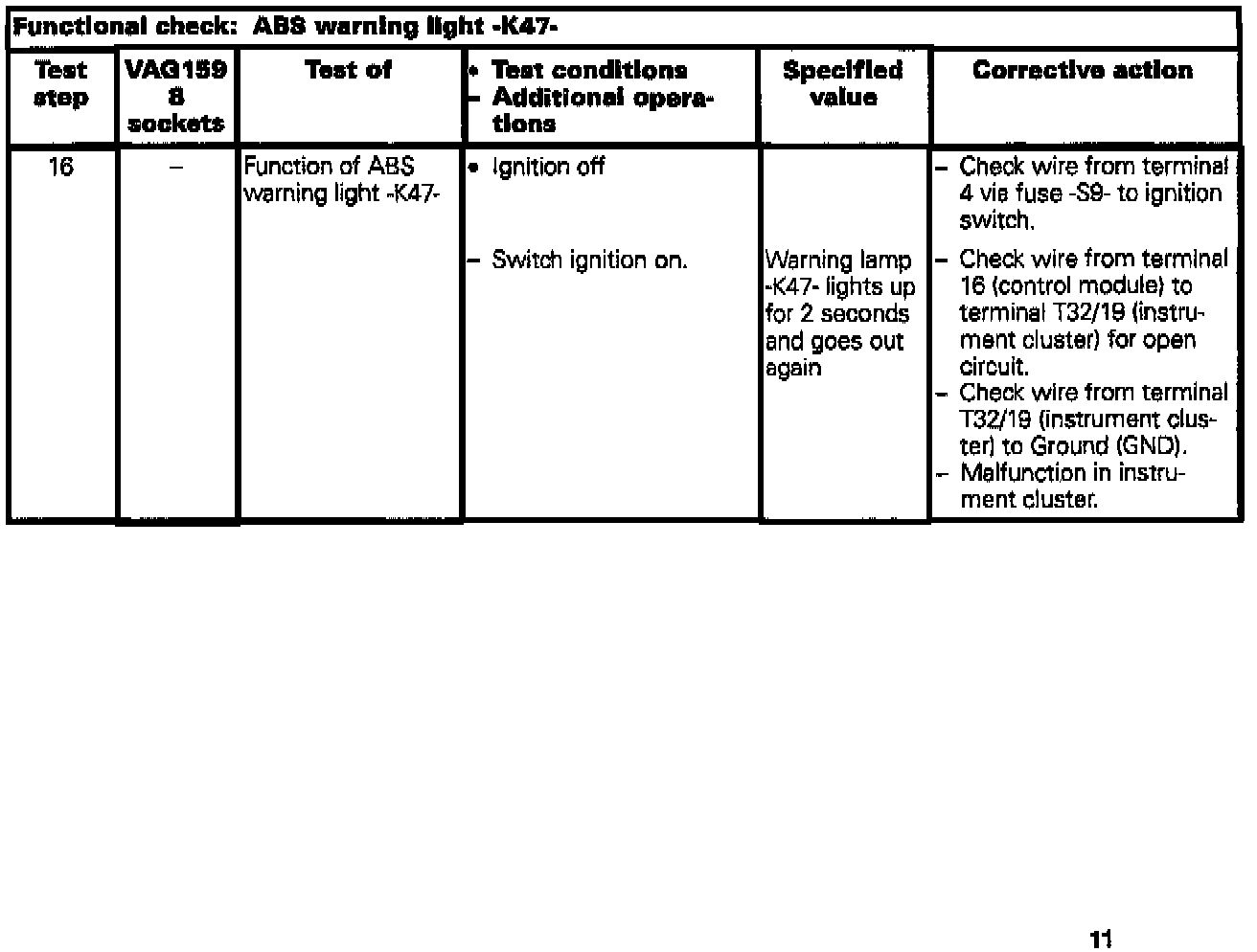

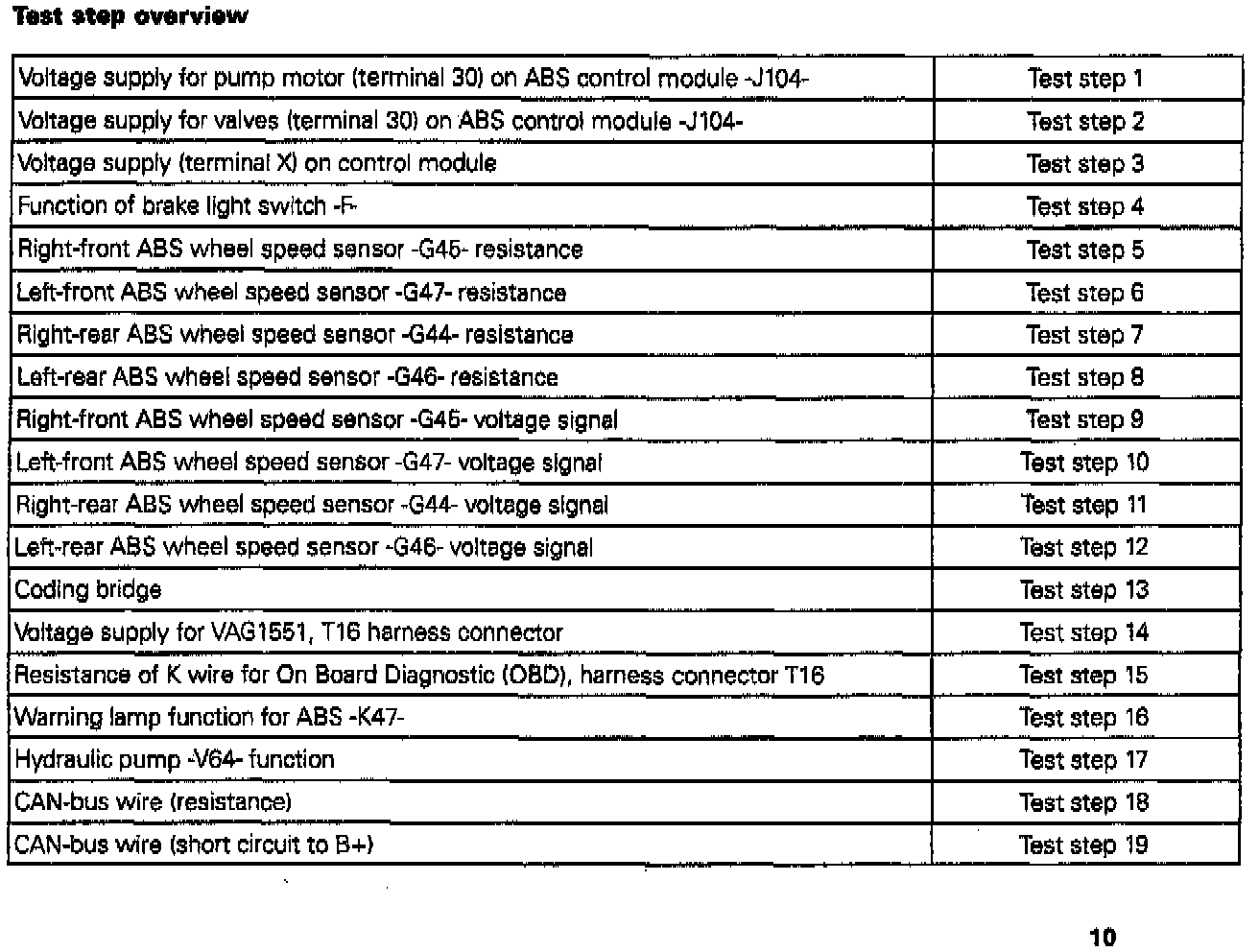

Test step overview
These pages have been updated for content and clairity. Please file them in your ABS & ABS/EDL-On Board Diagnostic (OBD) Repair Manual
