Comfort System - Read Measured Value BLock (OBD)

Group: 01

Number: 98-06

Date: May 15, 1998

File this Technical Bulletin in Repair Manual No: W42 008 198 112

Subject:

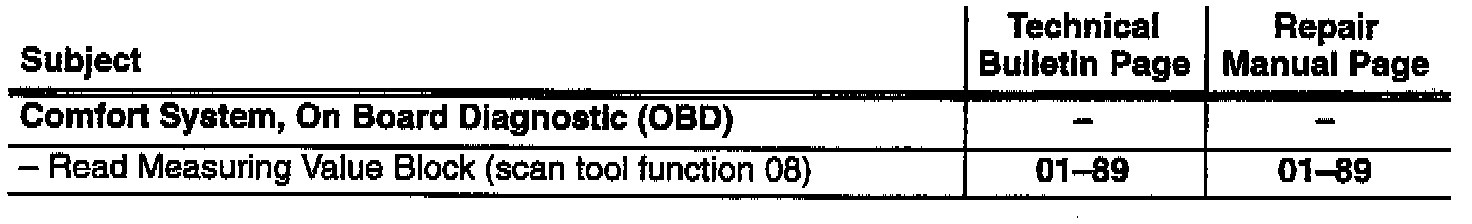

Comfort System, On Board Diagnostic (OBD) Read Measured Value Block (Scan Tool Function 08)

Model(s):
New Beetle 1998 -->





Contents

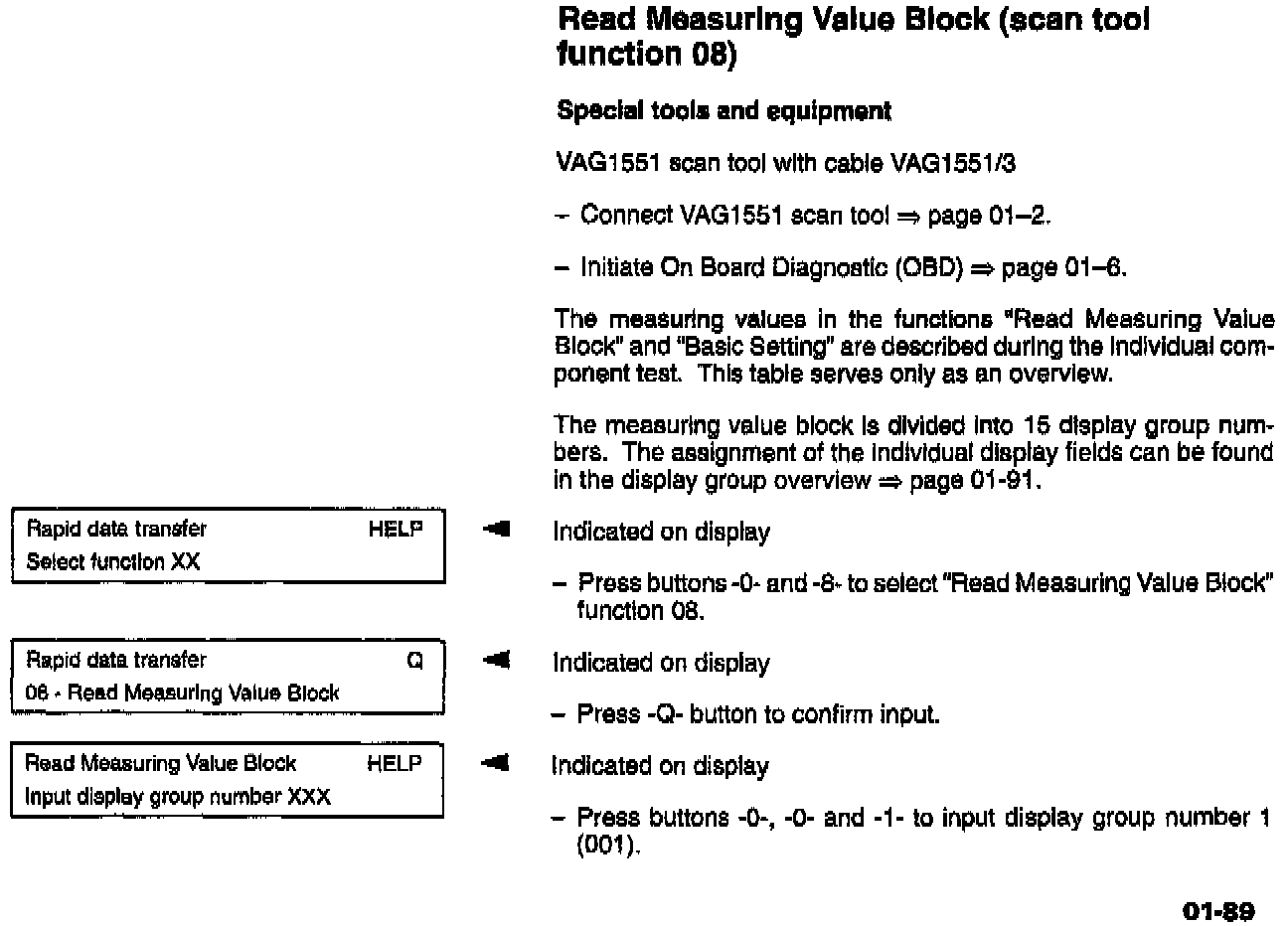

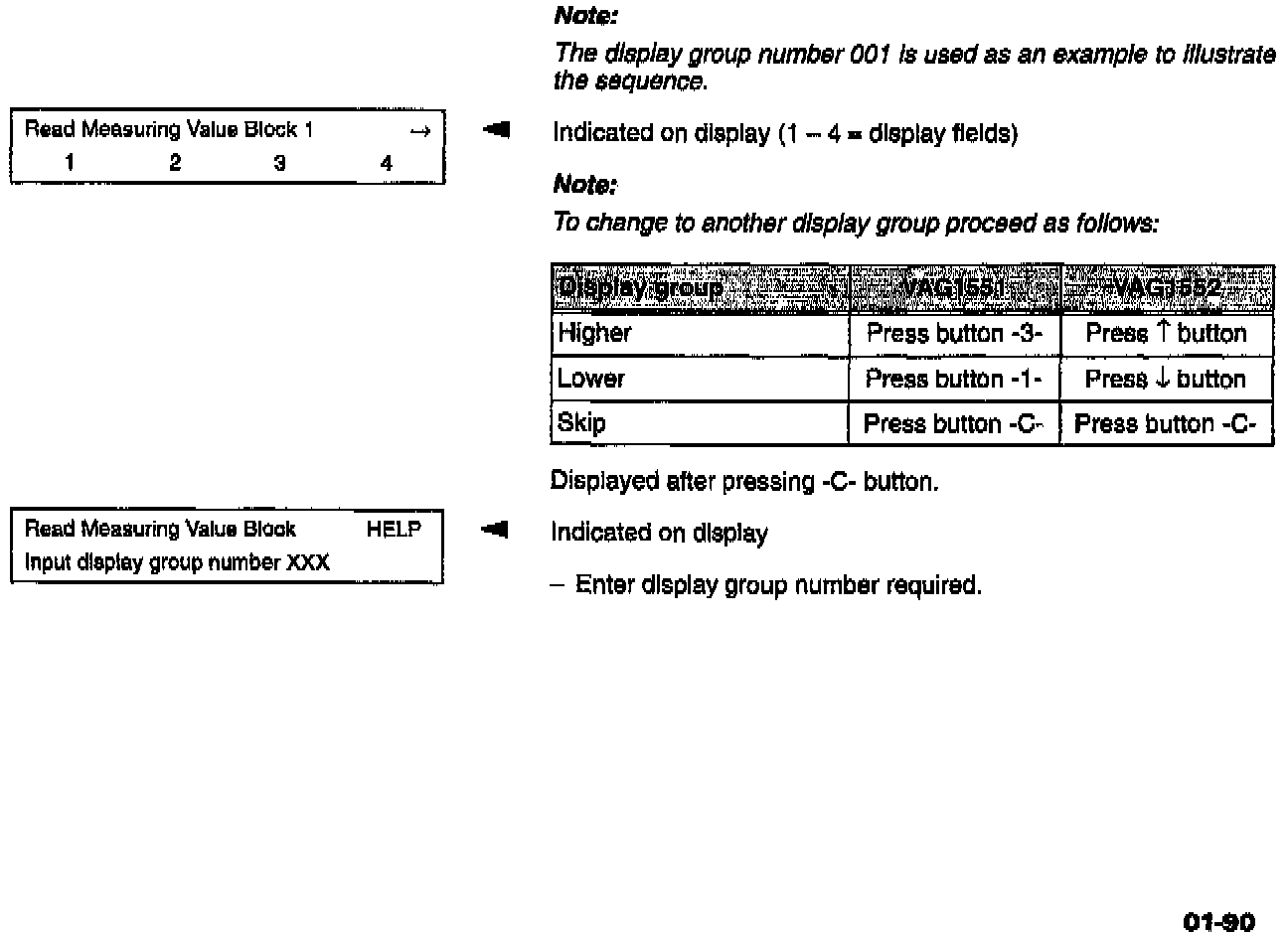

Read Measuring Value Block (scan tool function 08)

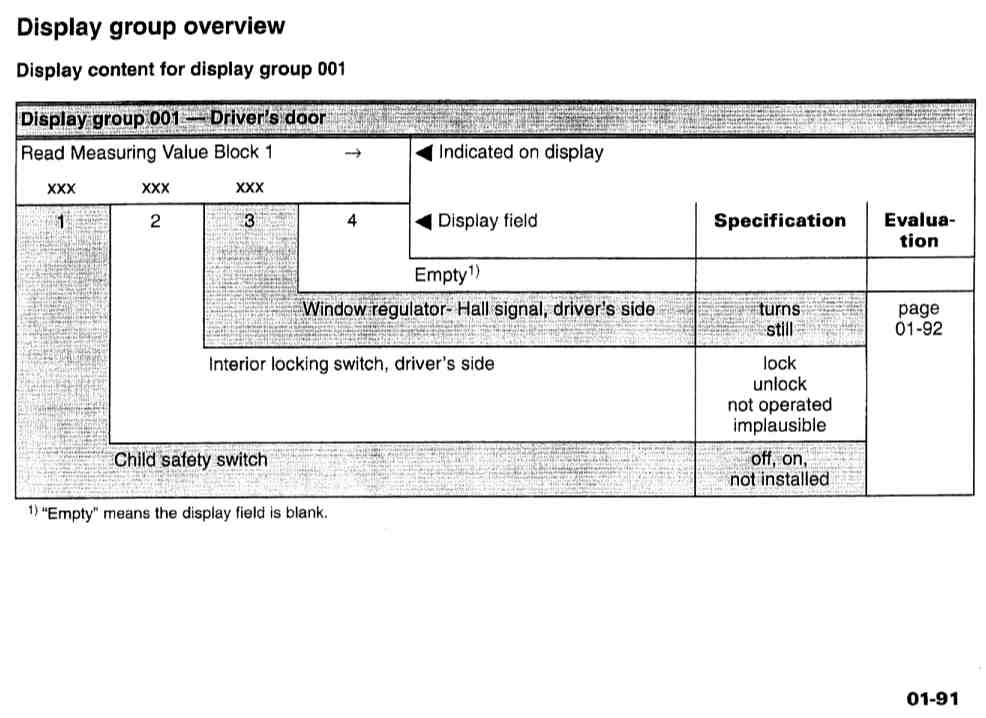

Display group overview





Display content for display group 001

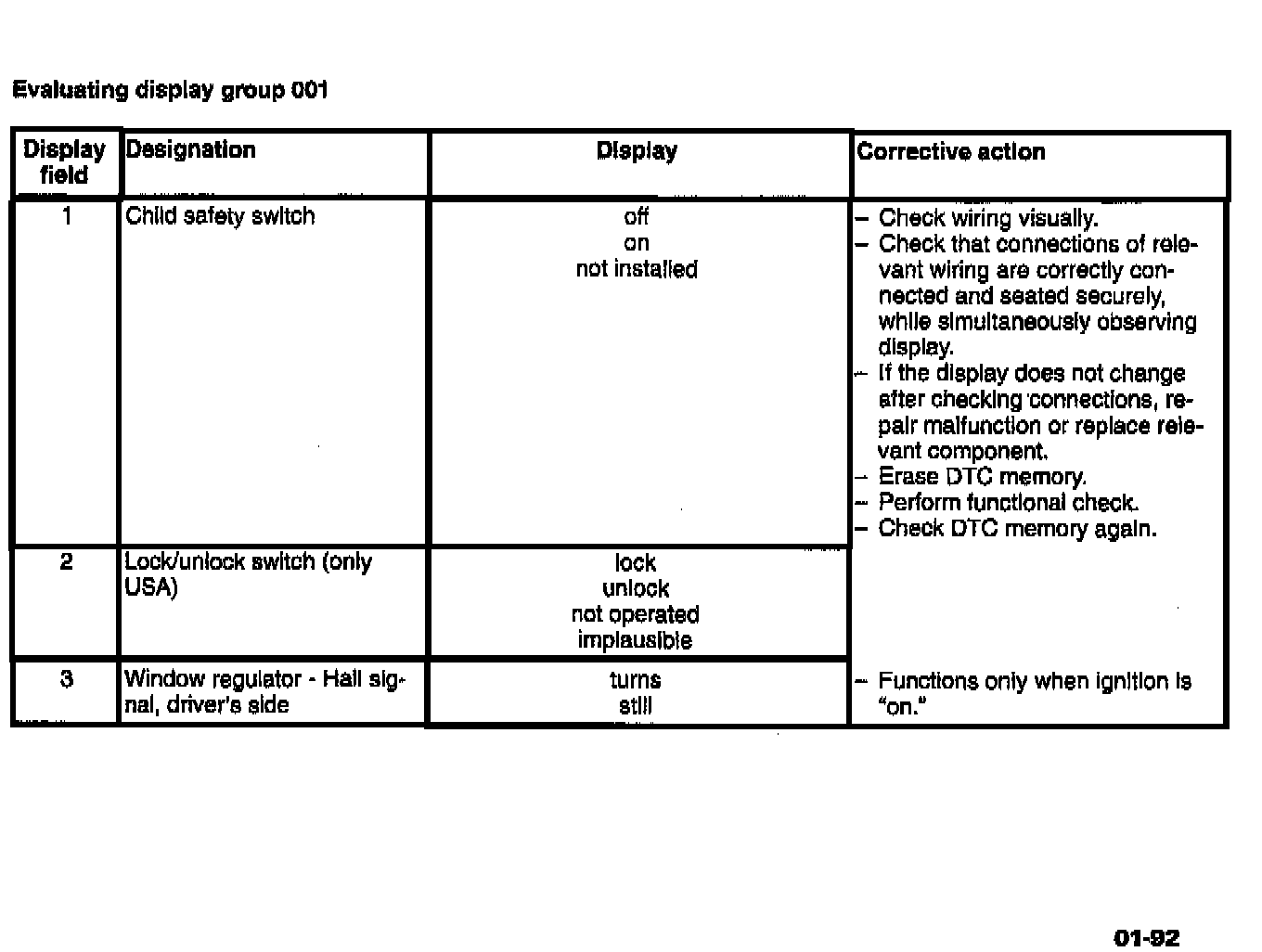

Evaluating display group 001

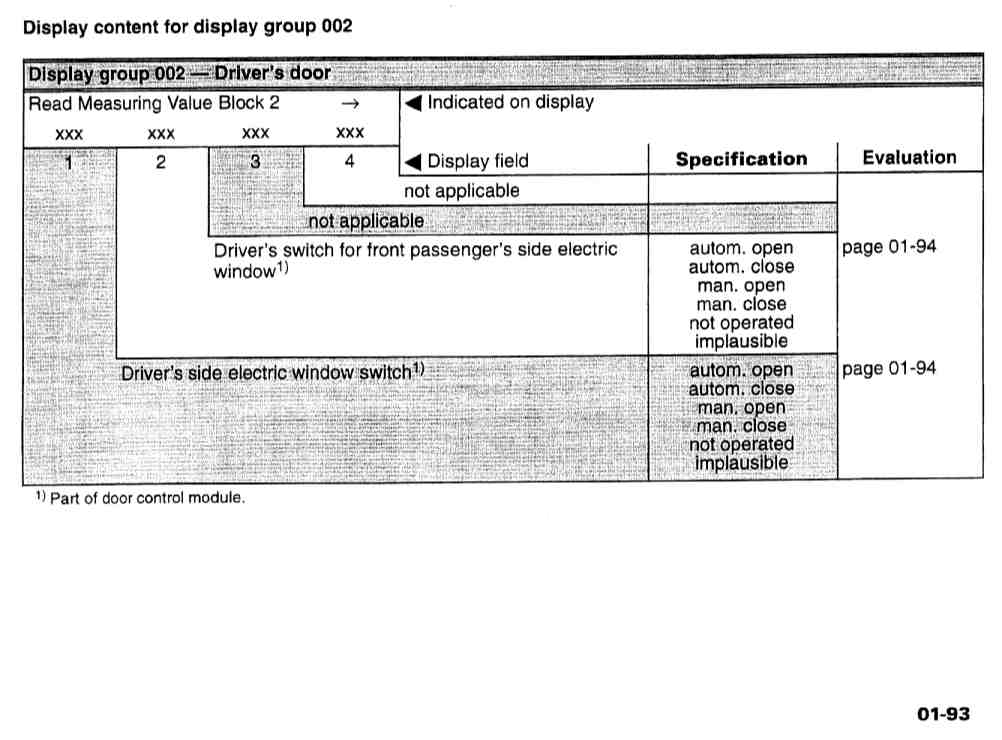

Display content for display group 002

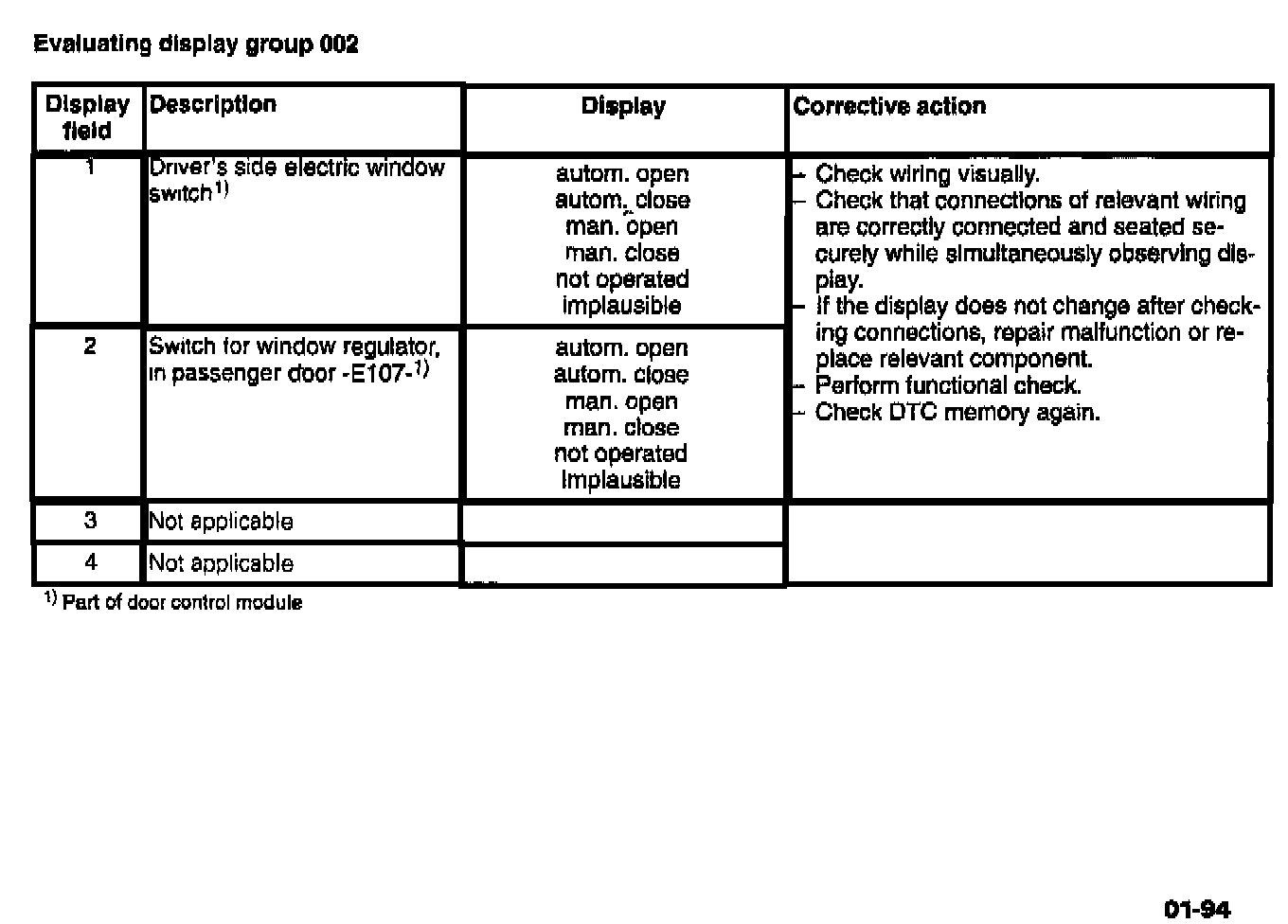

Evaluating display group 002

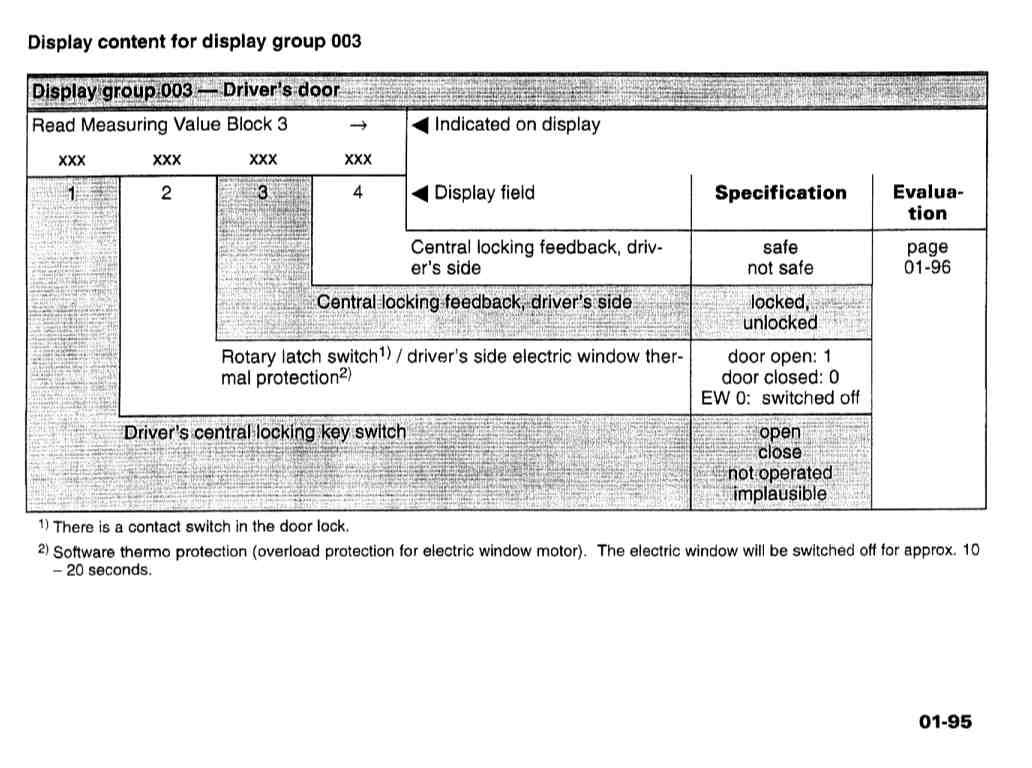

Display content for display group 003

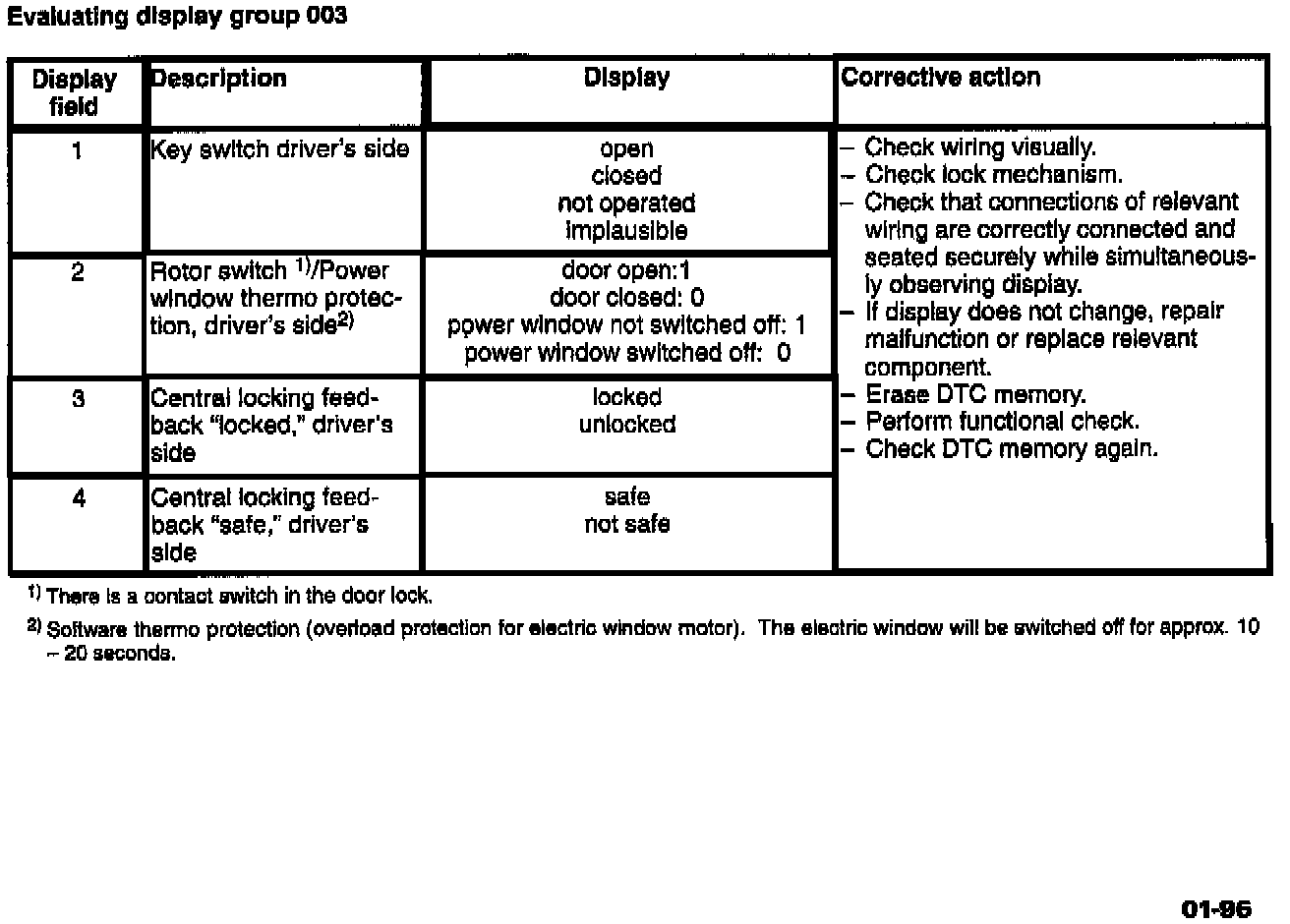

Evaluating display group 003

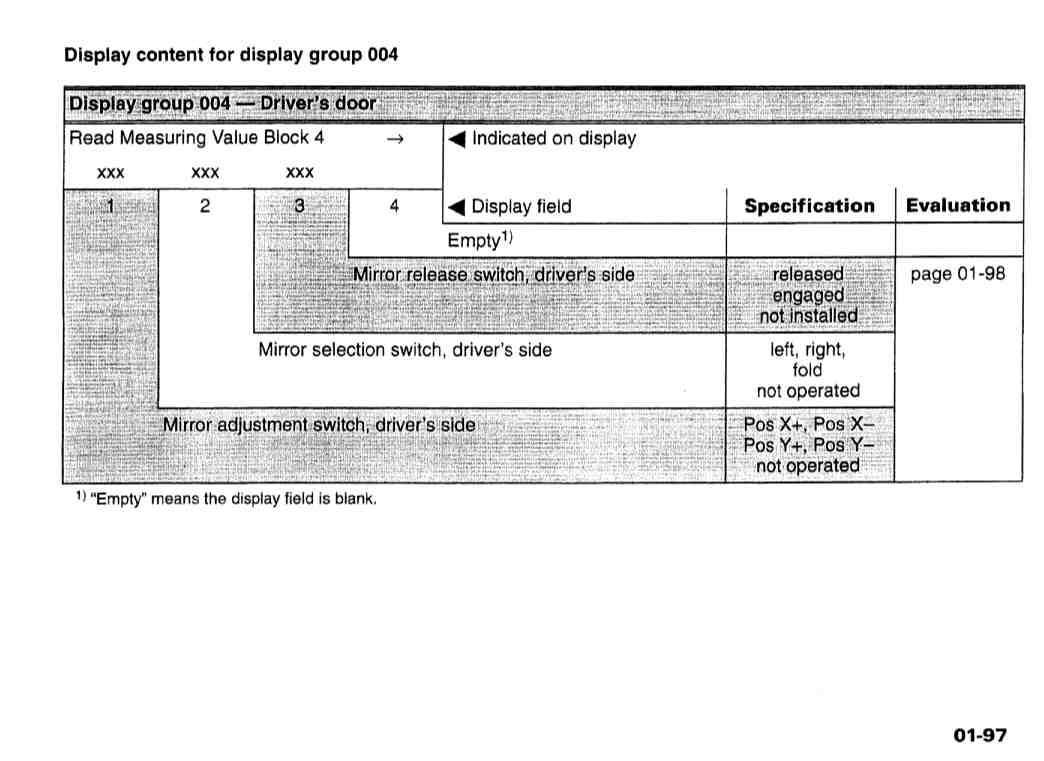

Display content for display group 004

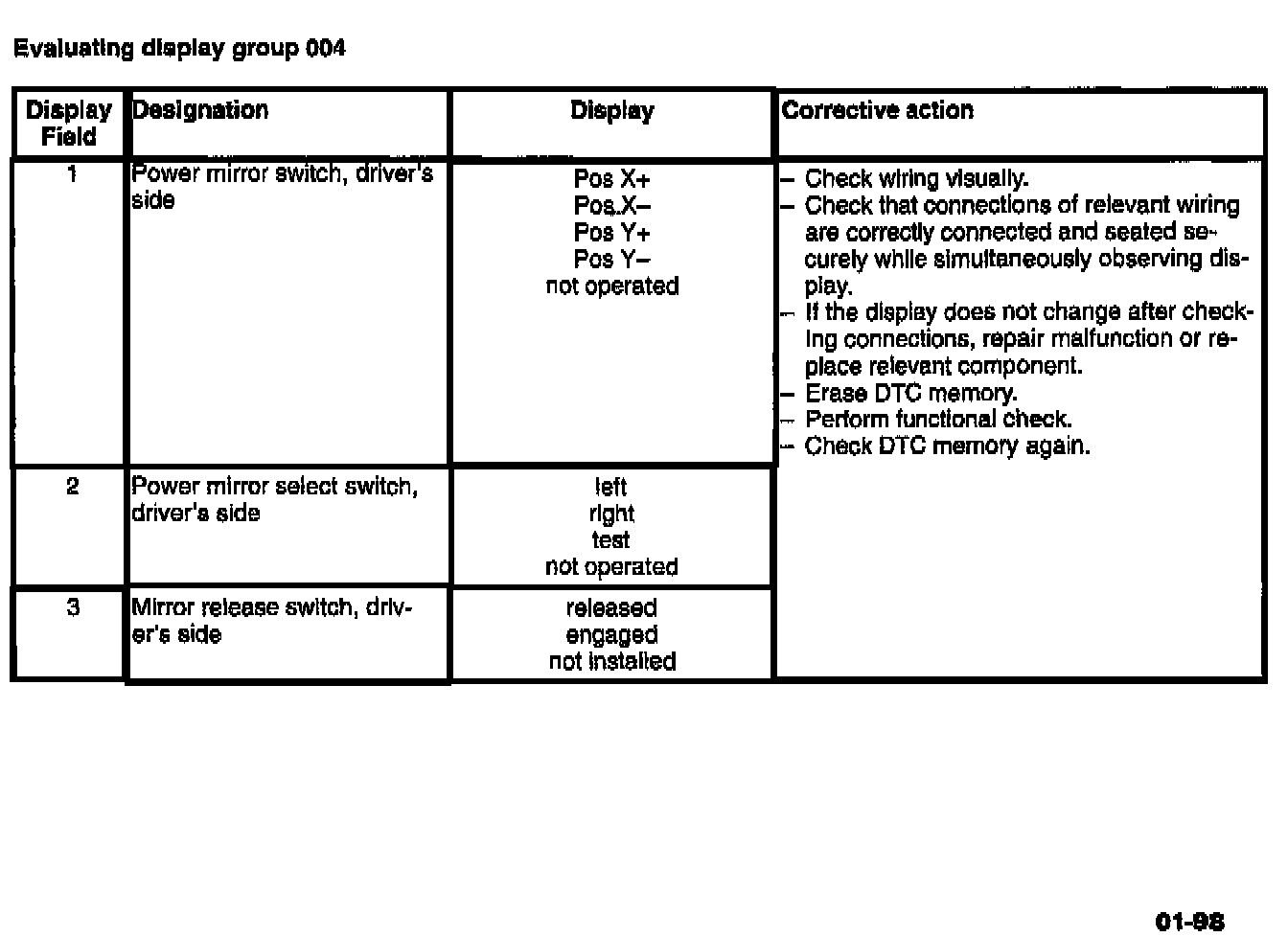

Evaluating display group 004





Display content for display group 005

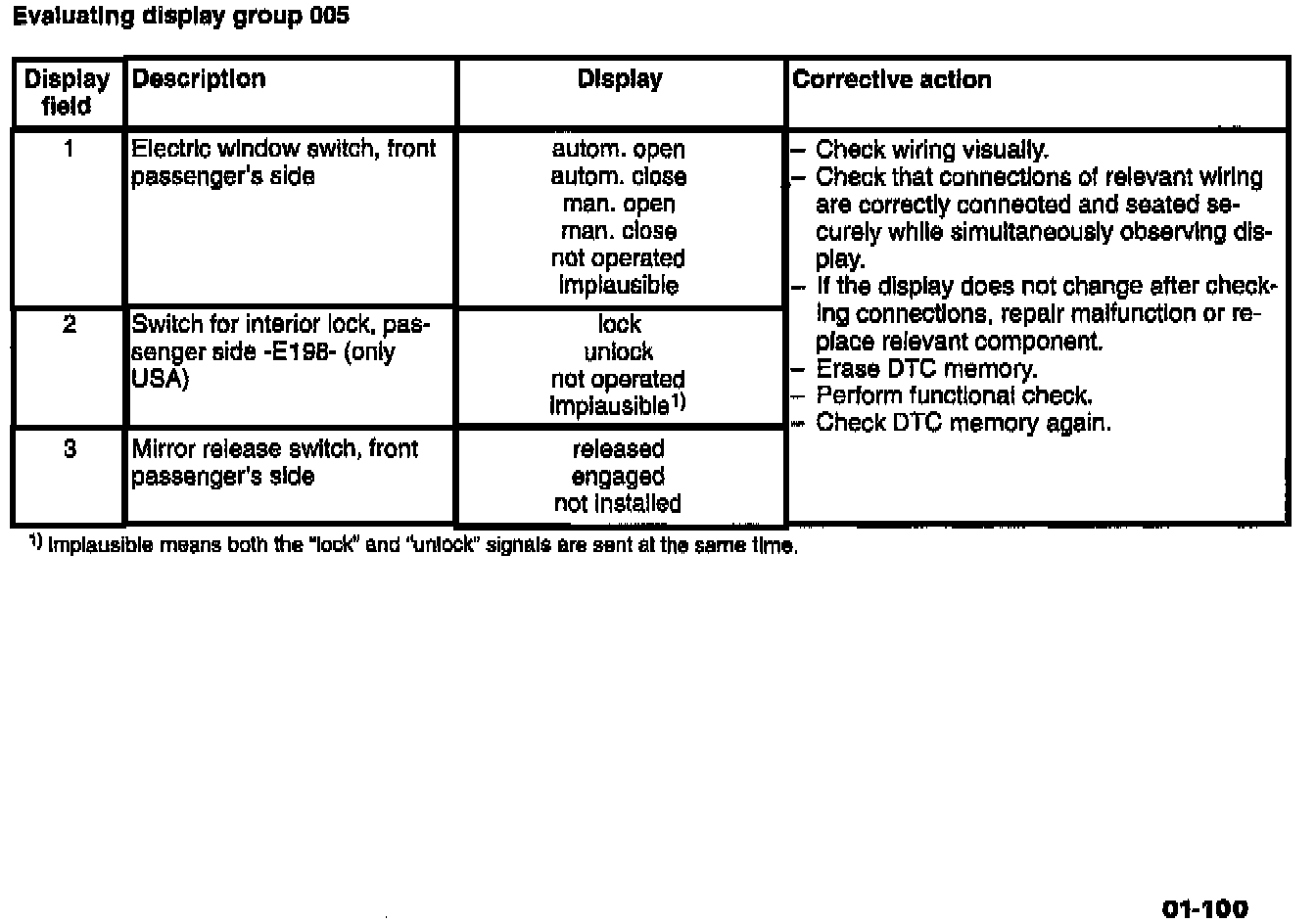

Evaluating display group 005

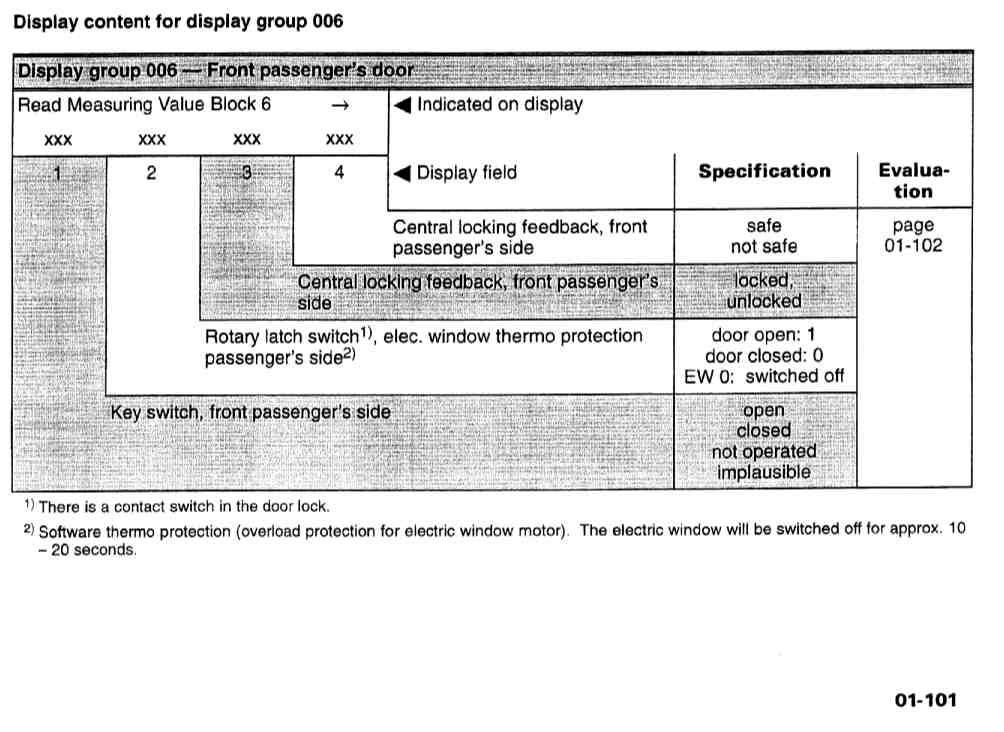

Display content for display group 006

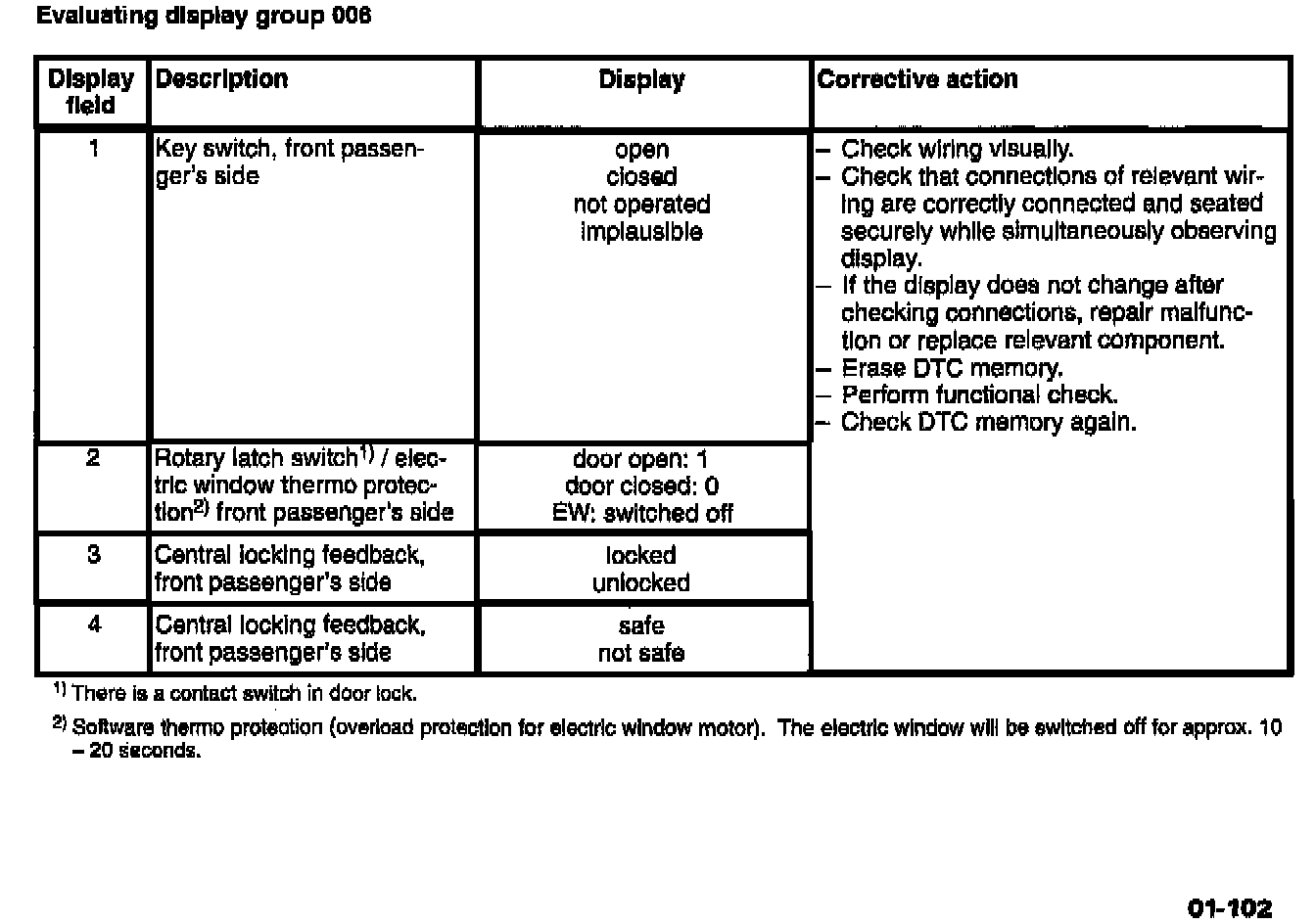

Evaluating display group 006





Display content for display group 007

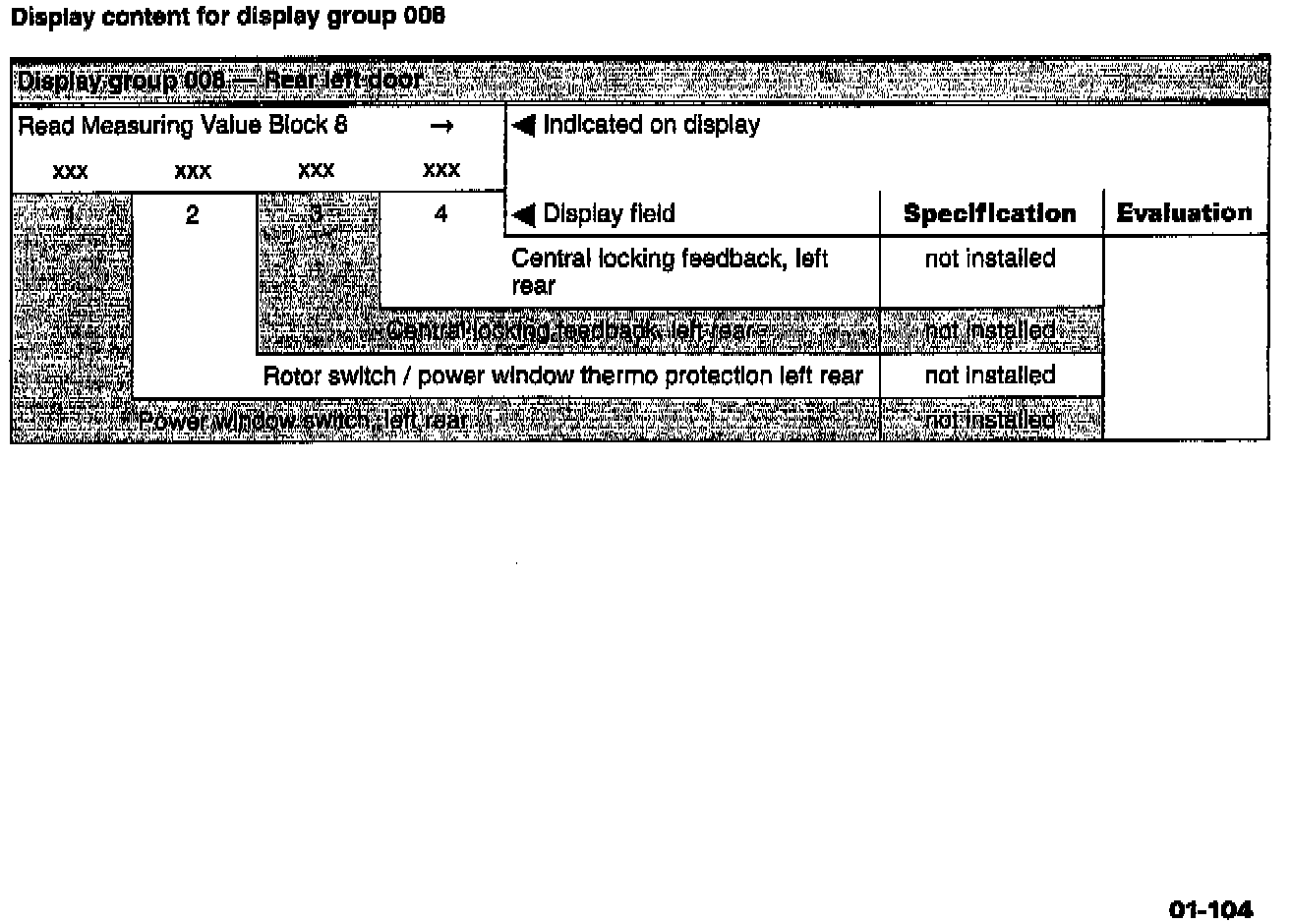

Display content for display group 008

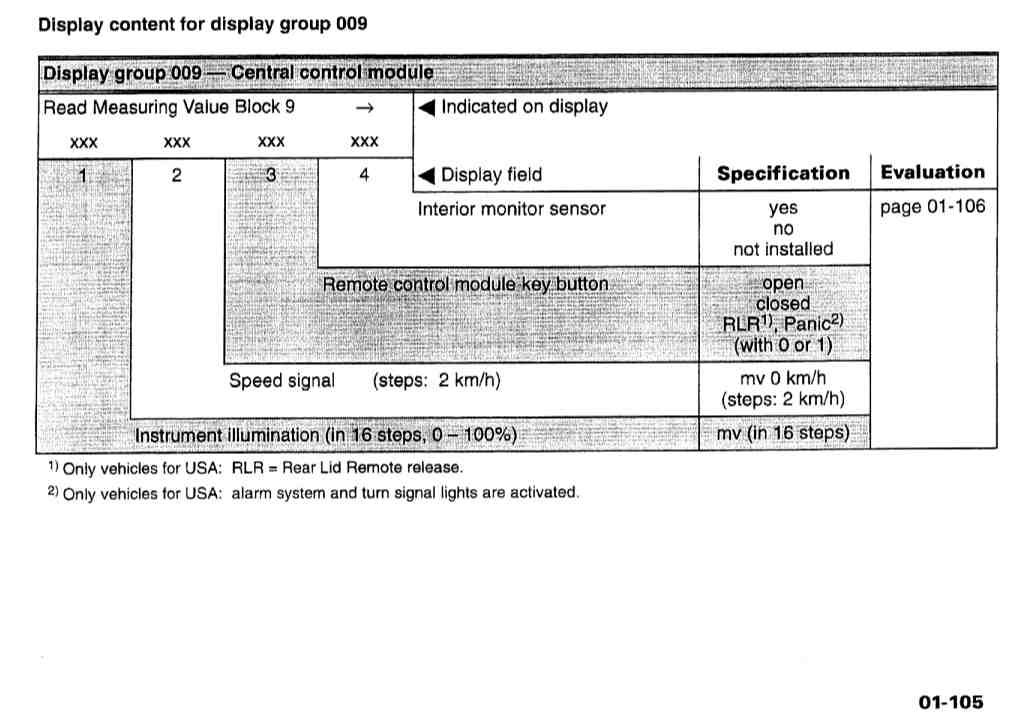

Display content for display group 009





Evaluating display group 009

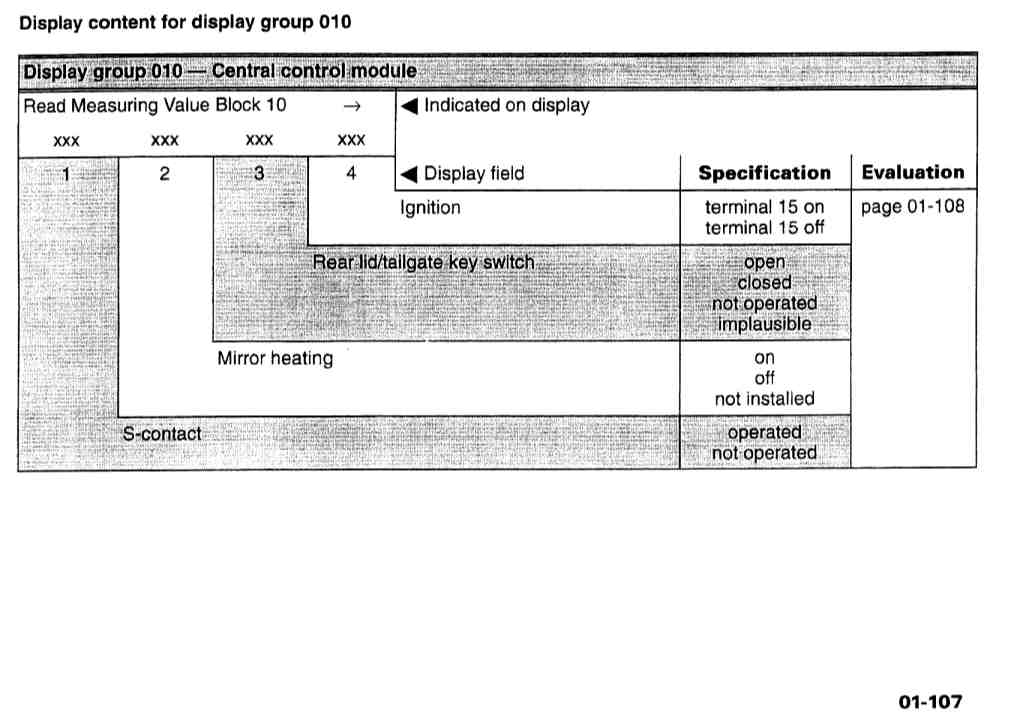

Display content for display group 010

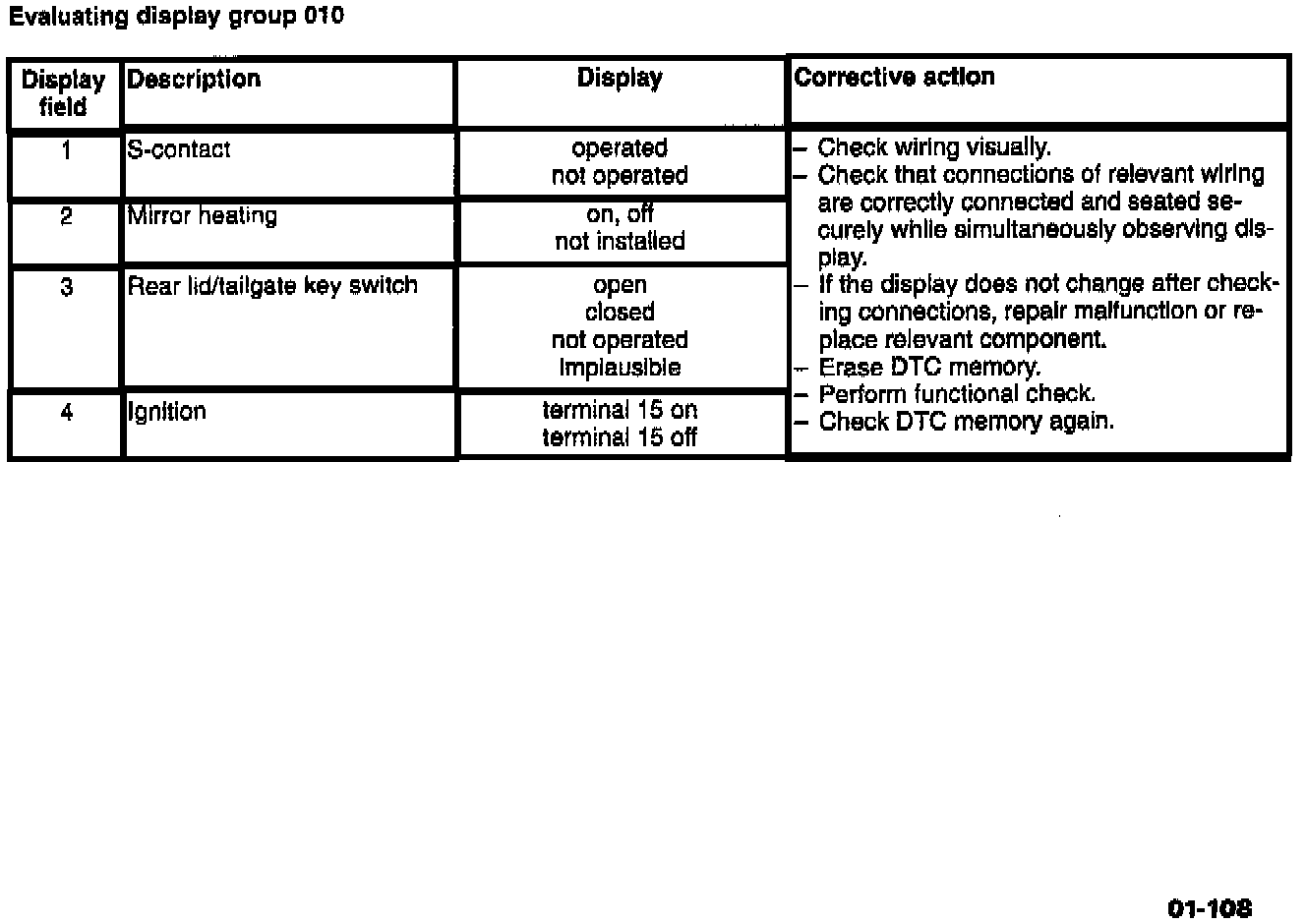

Evaluating display group 010

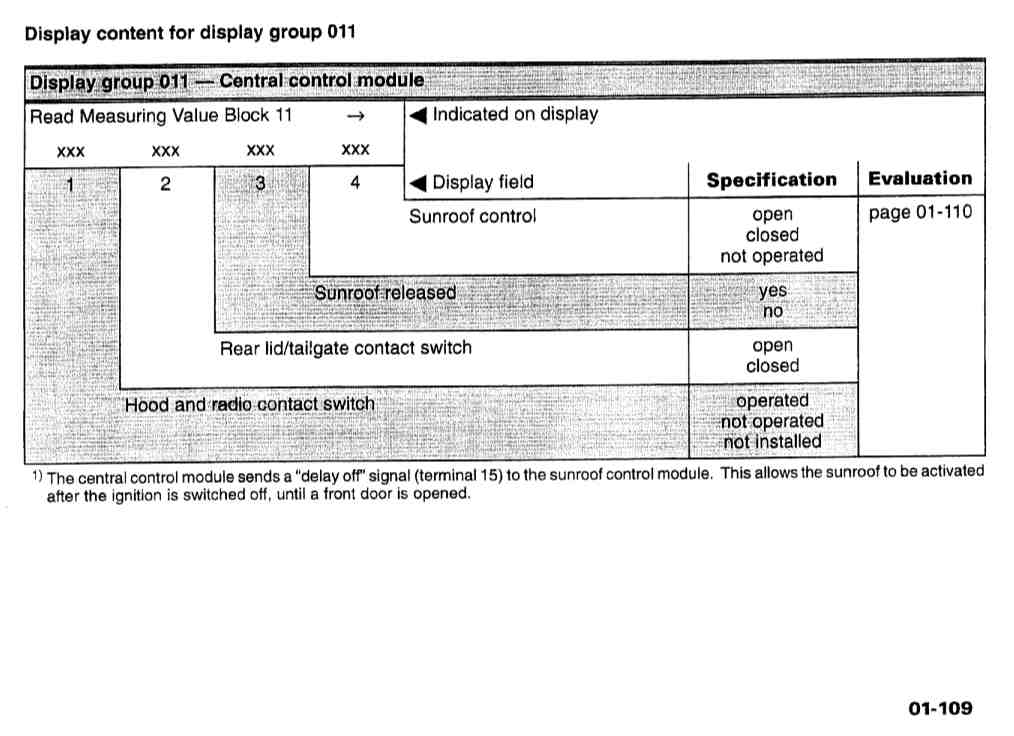

Display content for display group 011

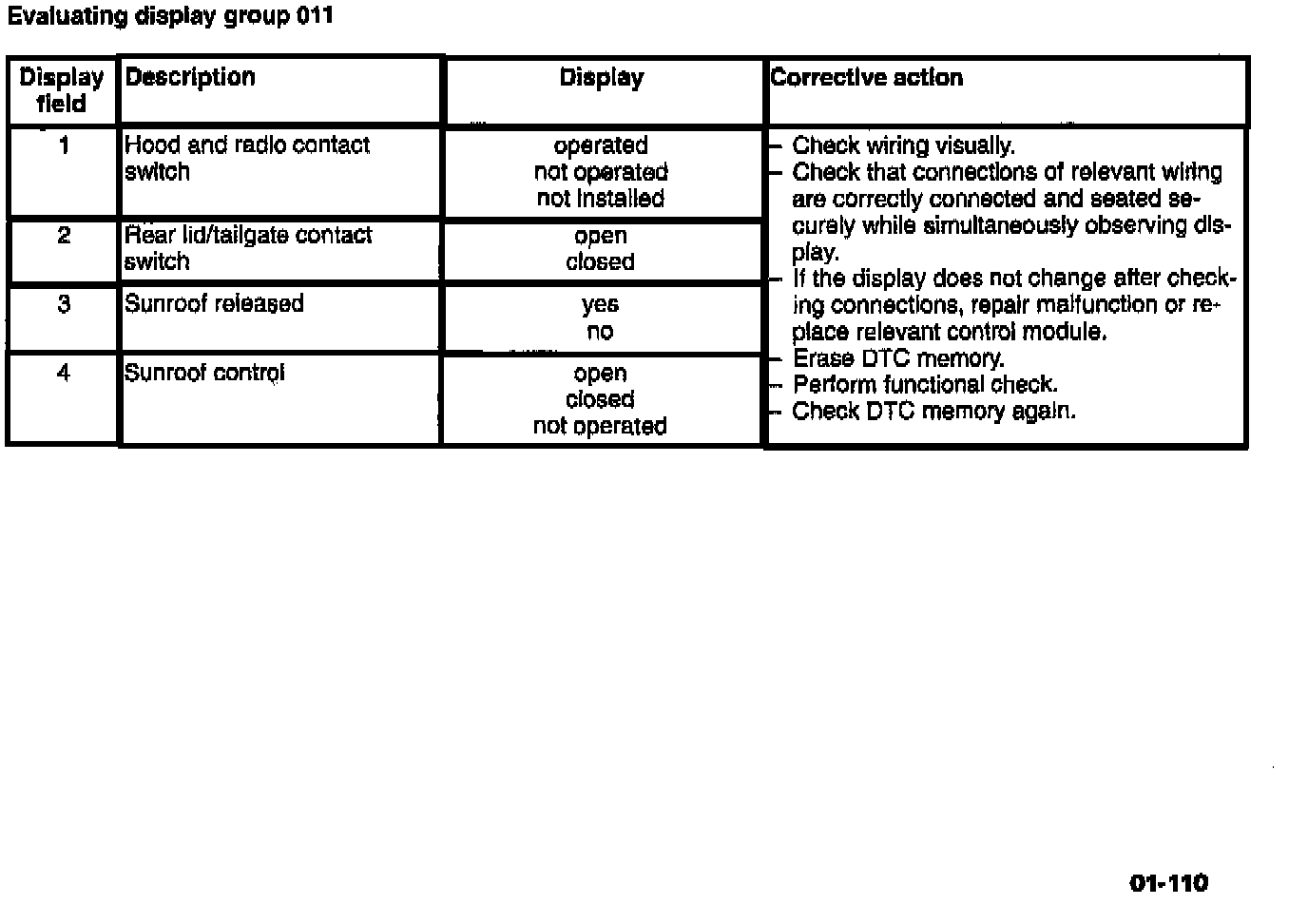

Evaluating display group 011

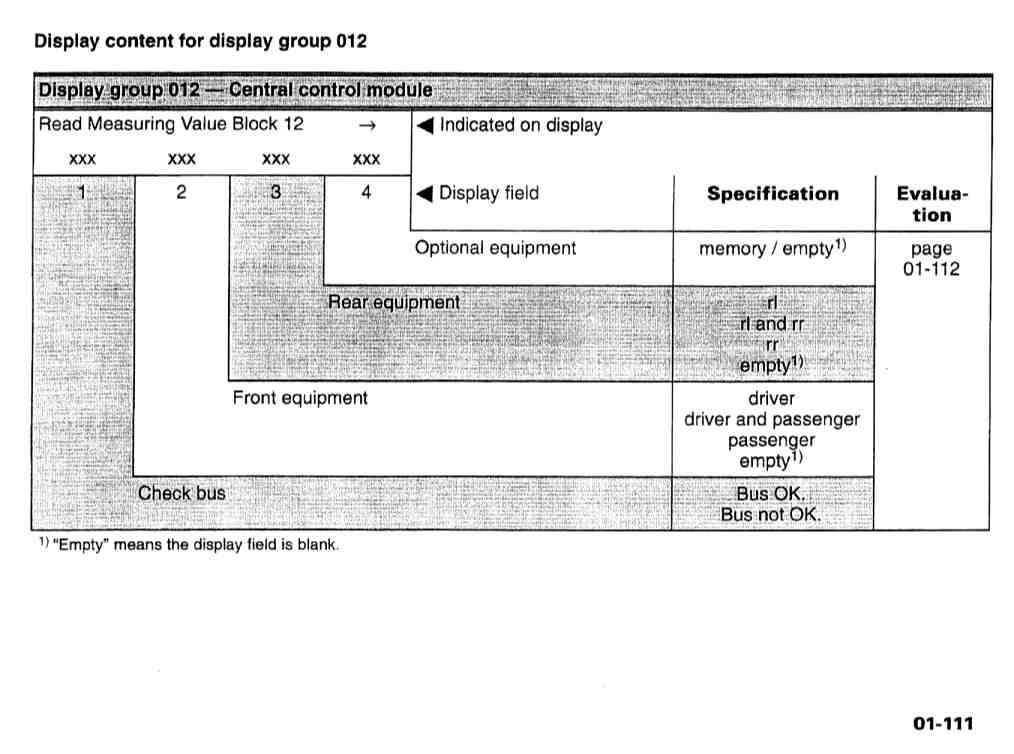

Display content for display group 012

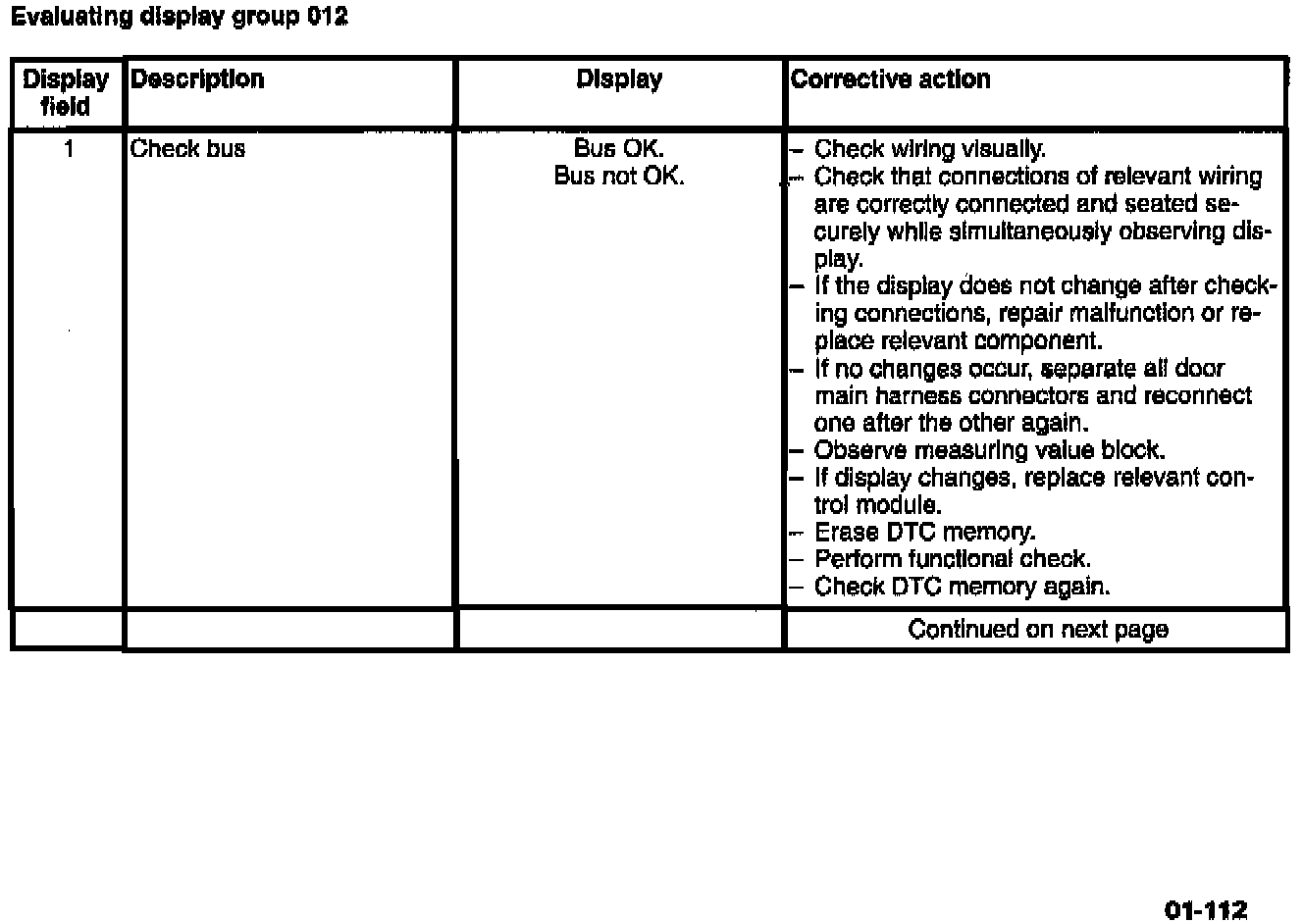

Evaluating display group 012

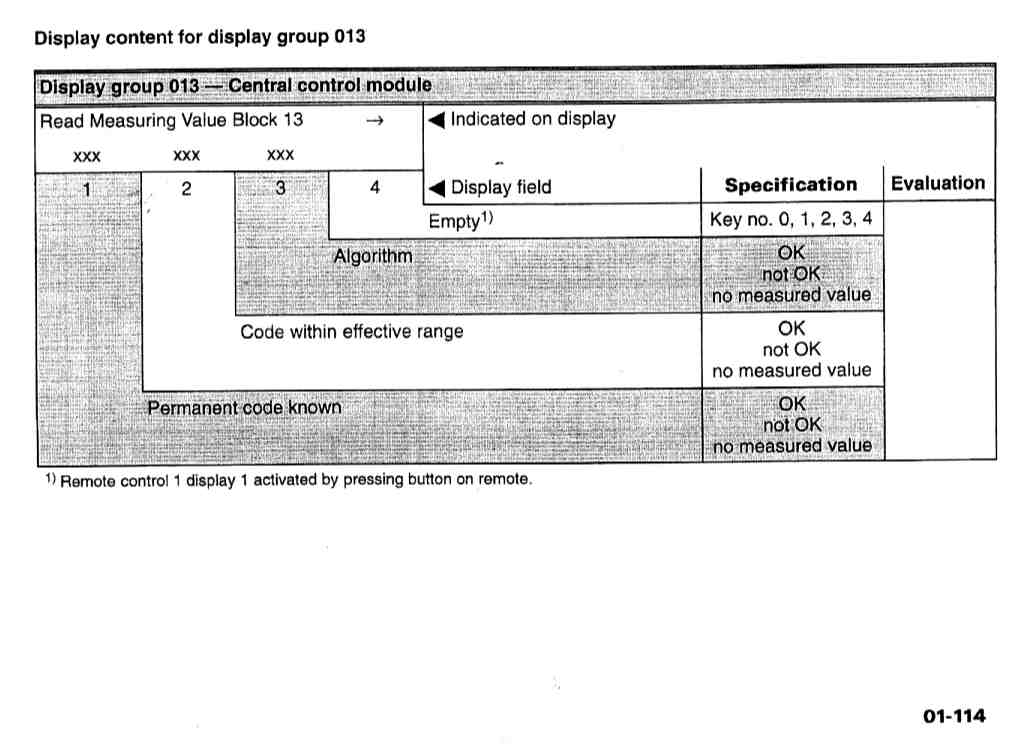

Display content for display group 013

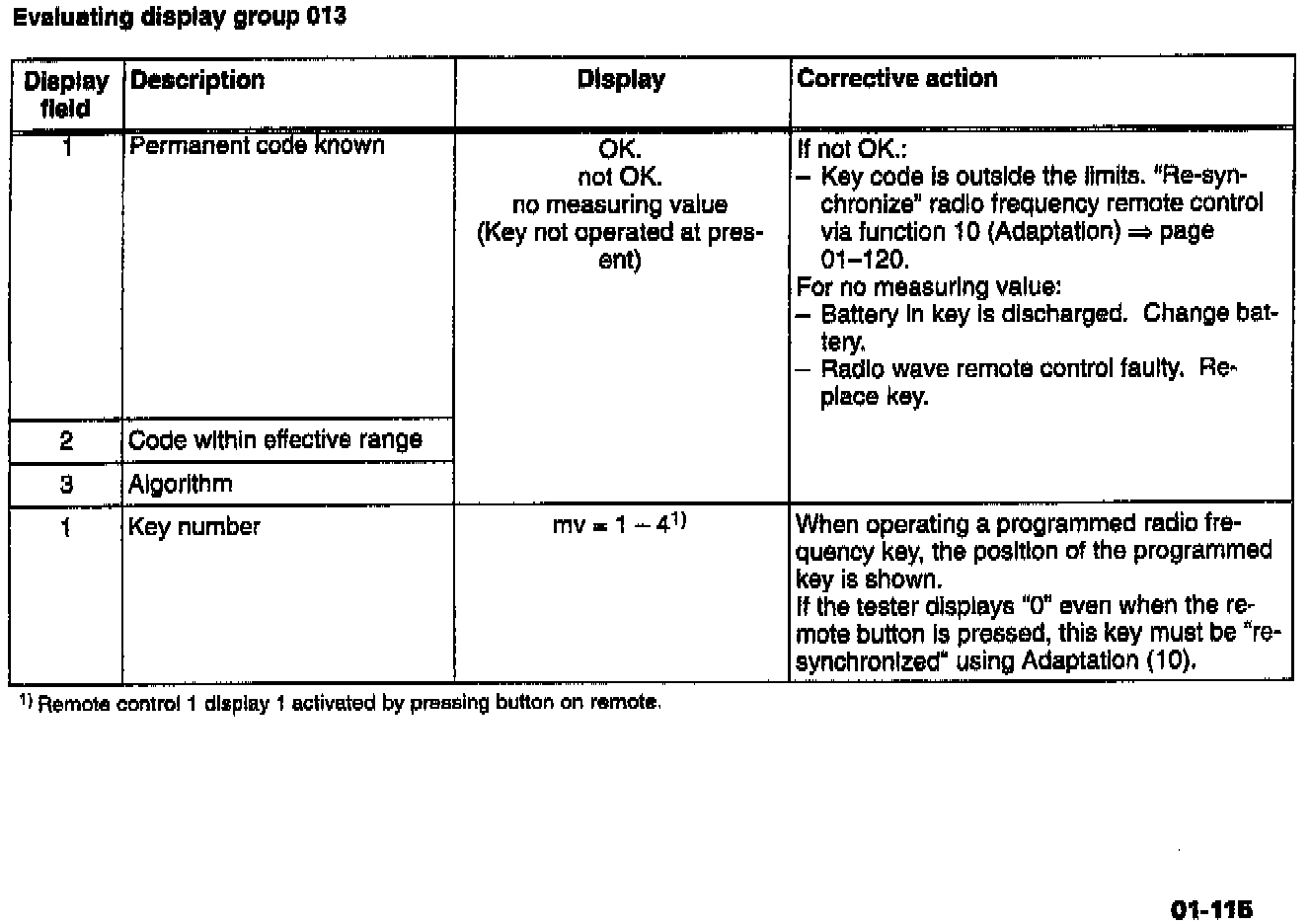

Evaluating display group 013

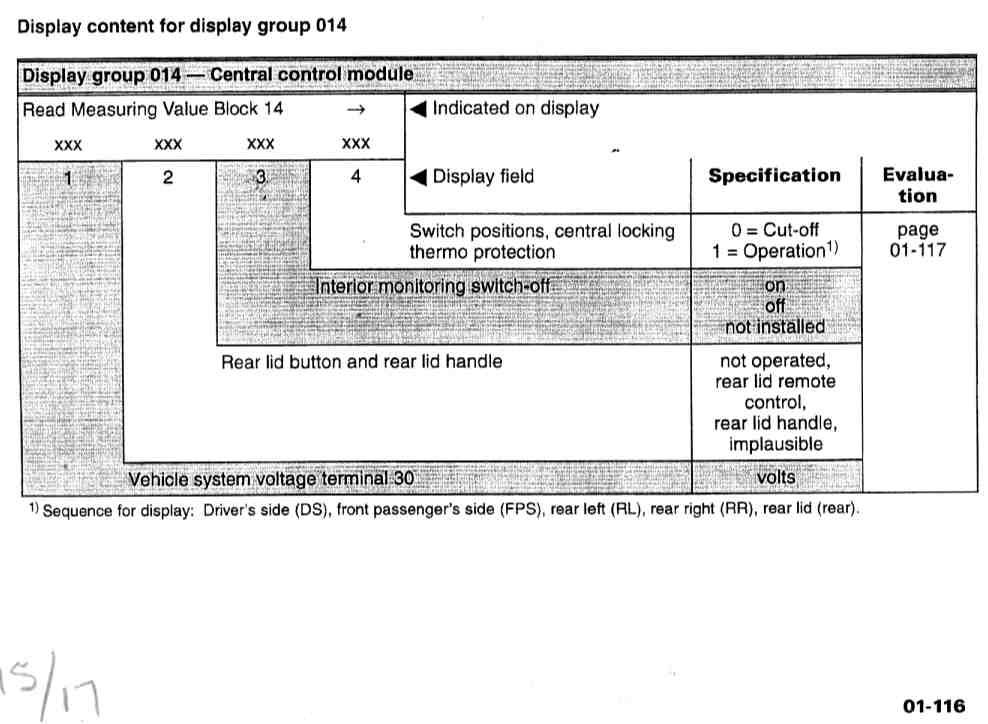

Display content for display group 014

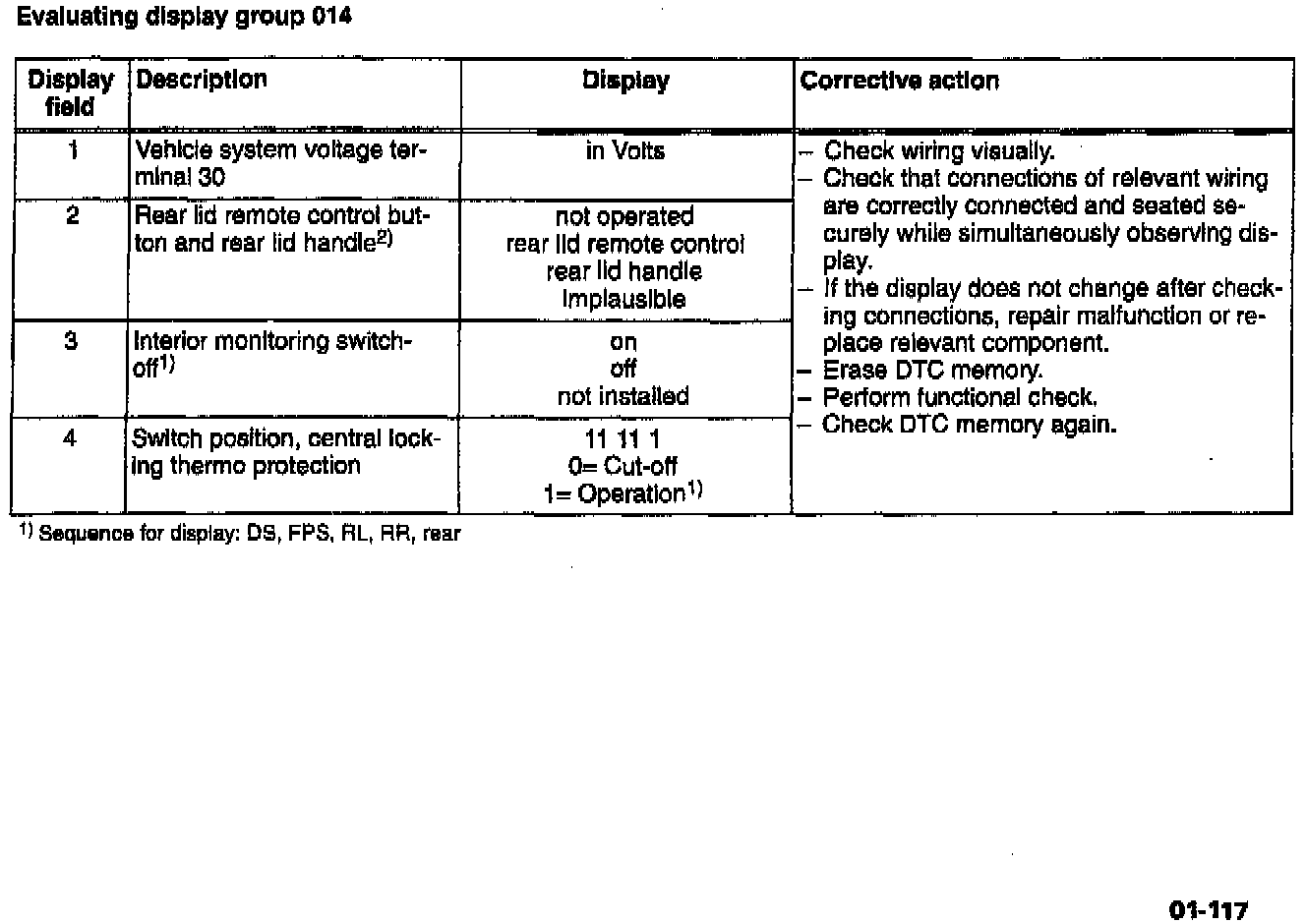

Evaluating display group 014

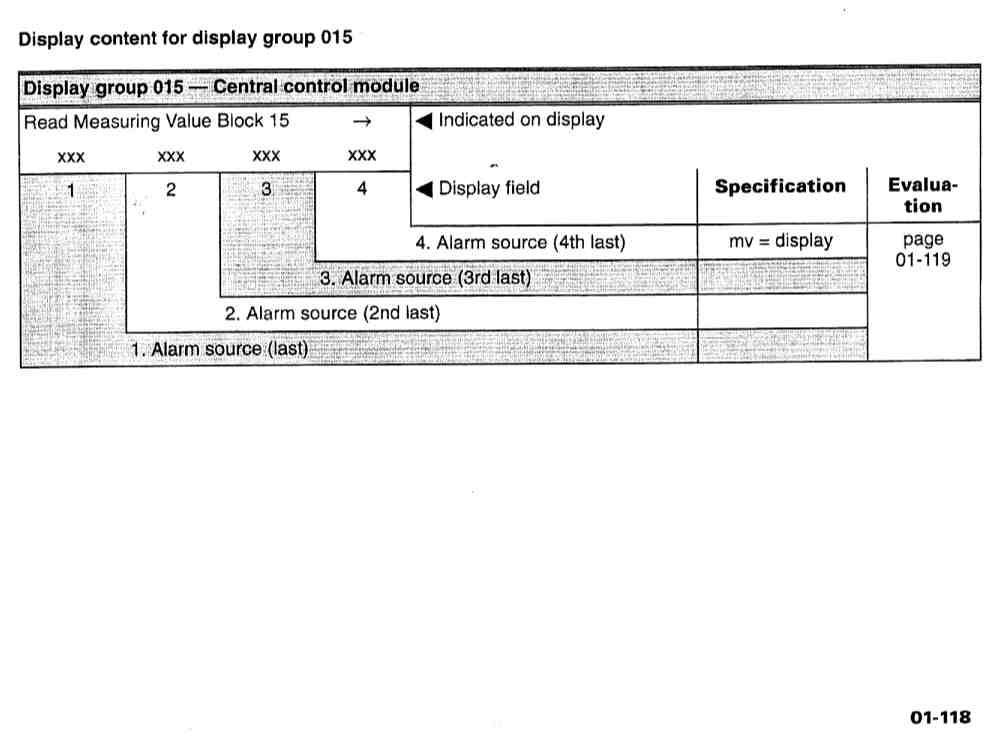

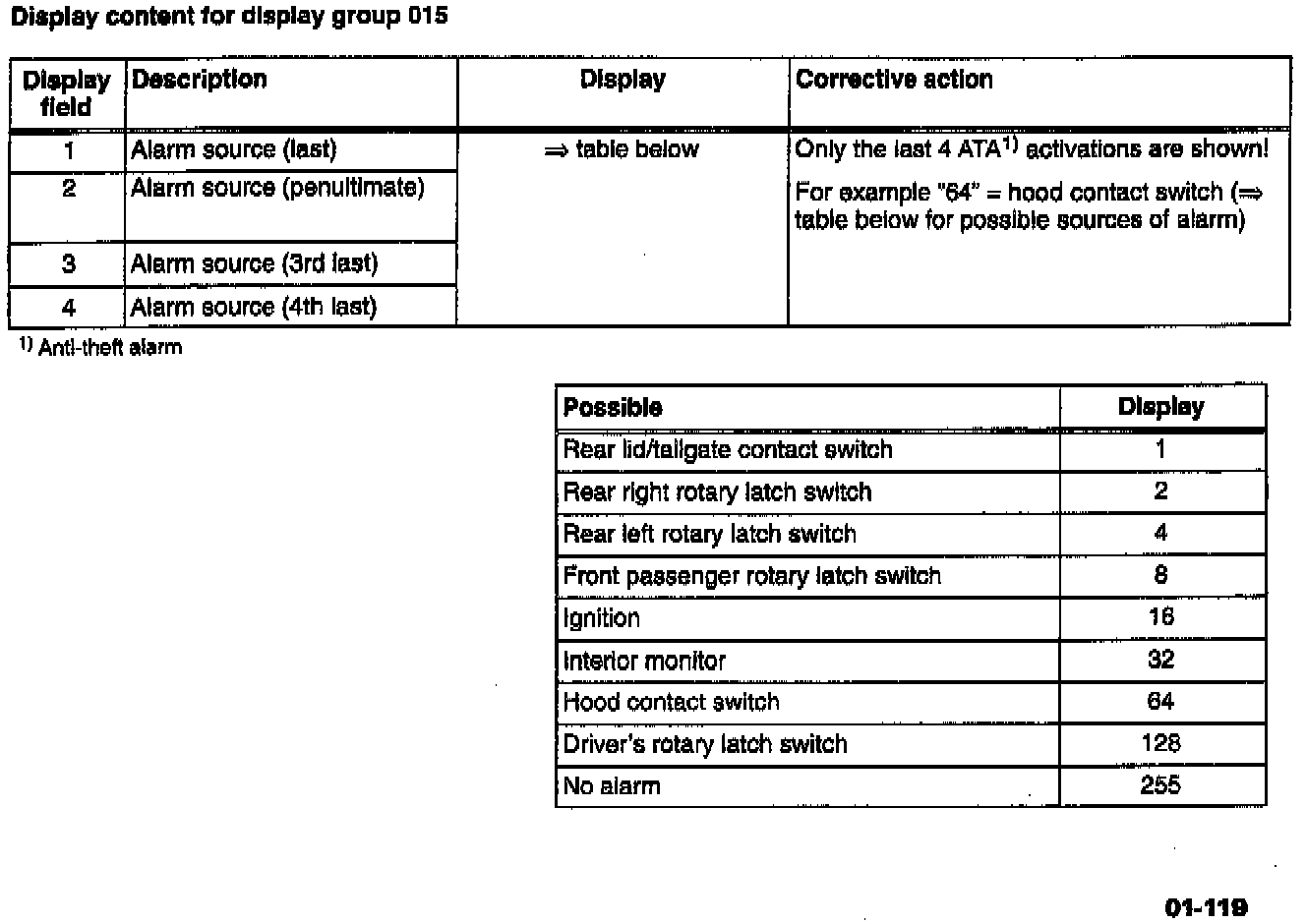

Display content for display group 015

This Bulletin includes new or revised information which will be integrated into the Repair Manual at the next update.
