Body - On Board Diagnostic Update

Group: 01

Number: 98-03

Date: May 1, 1998

File this Technical Bulletin in Repair Manual No: W42 008 198 112

Subject:
Body-On Board Diagnostic (OBD), Update

Model(s):
New Beetle 1998 -->

This Bulletin includes new or revised information which will be integrated into the Repair Manual at the next update.

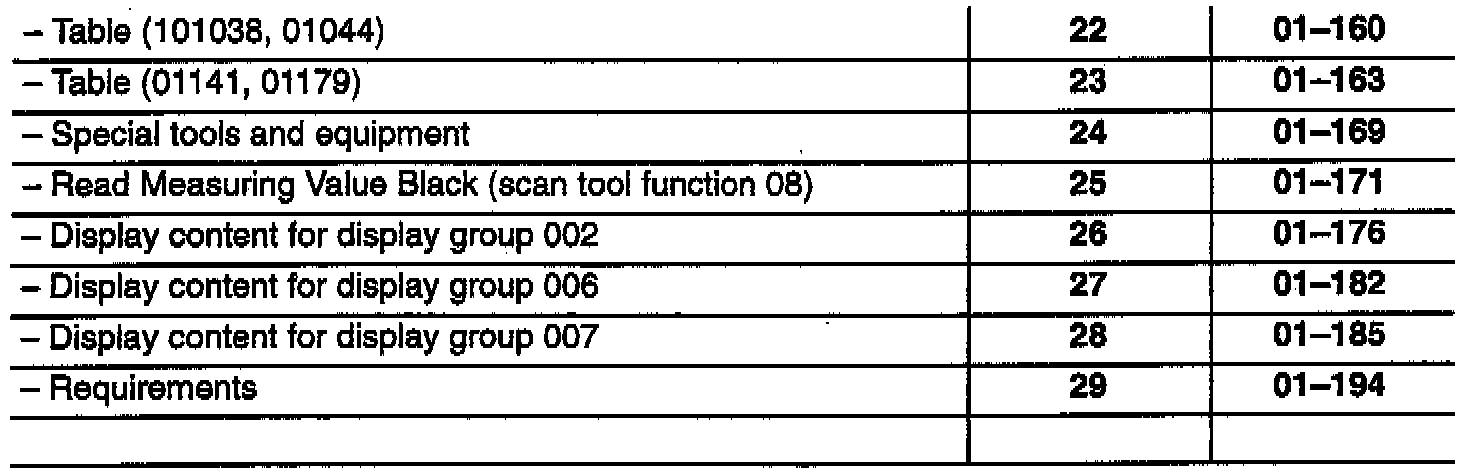

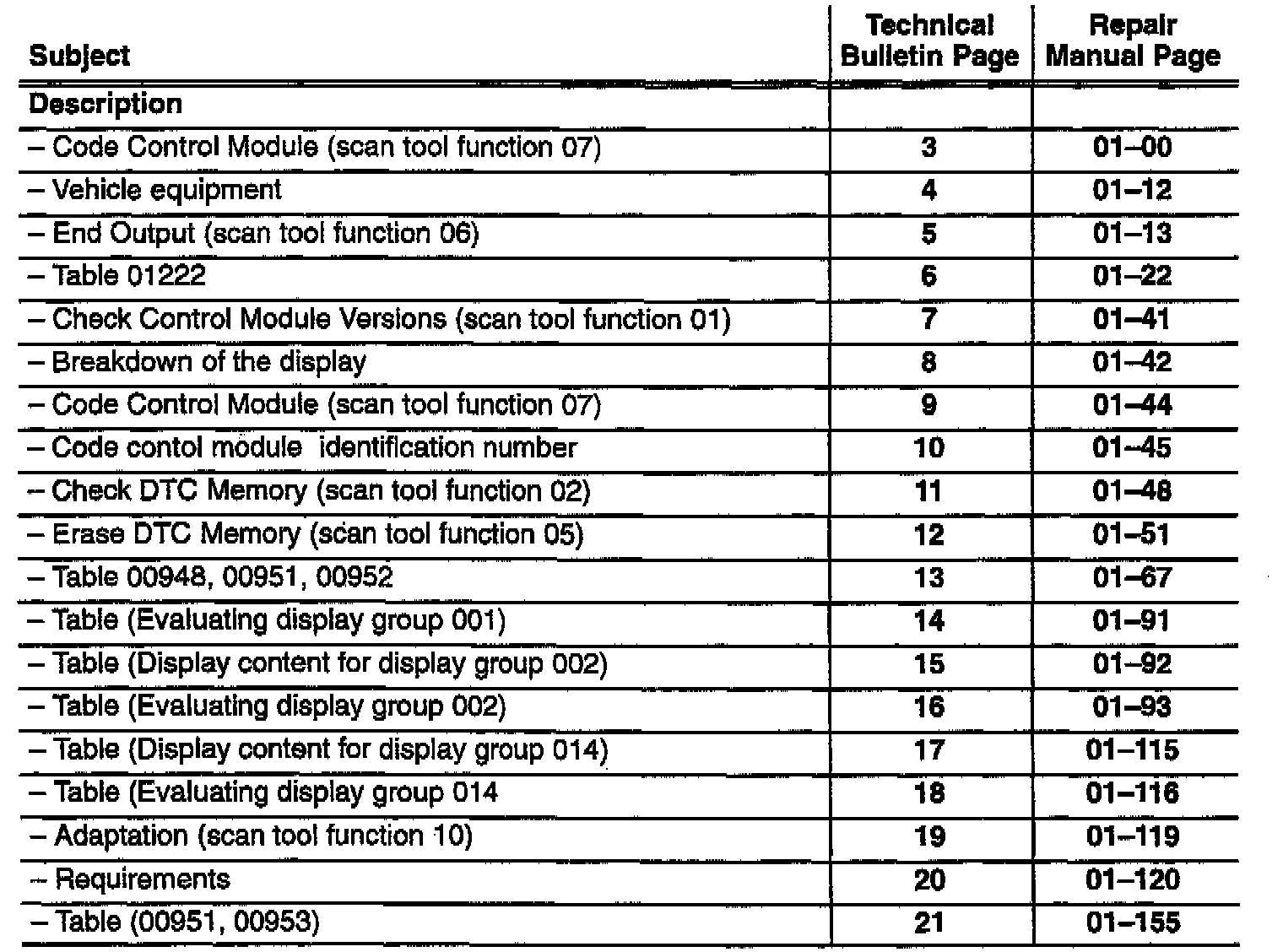

Contents

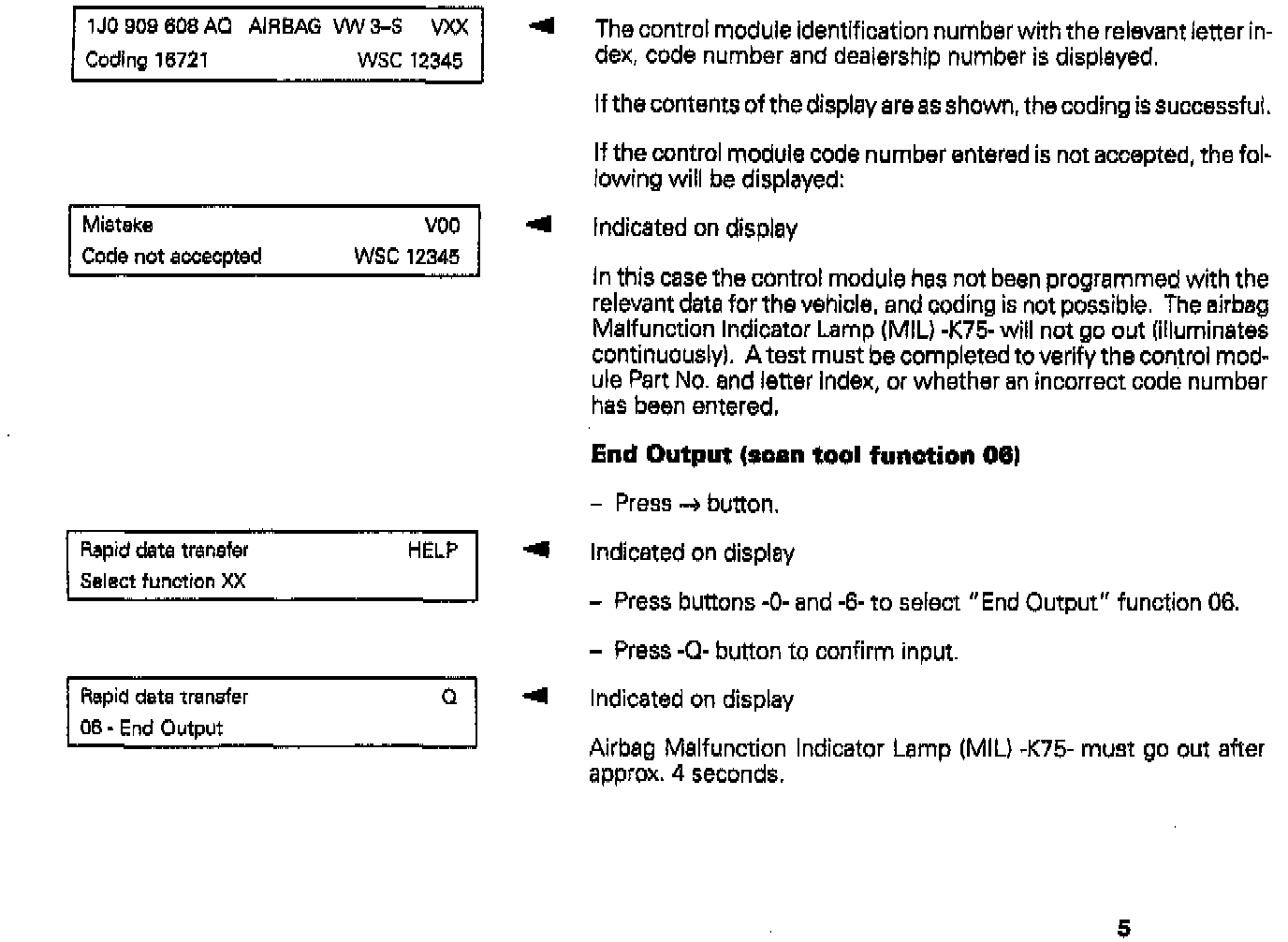

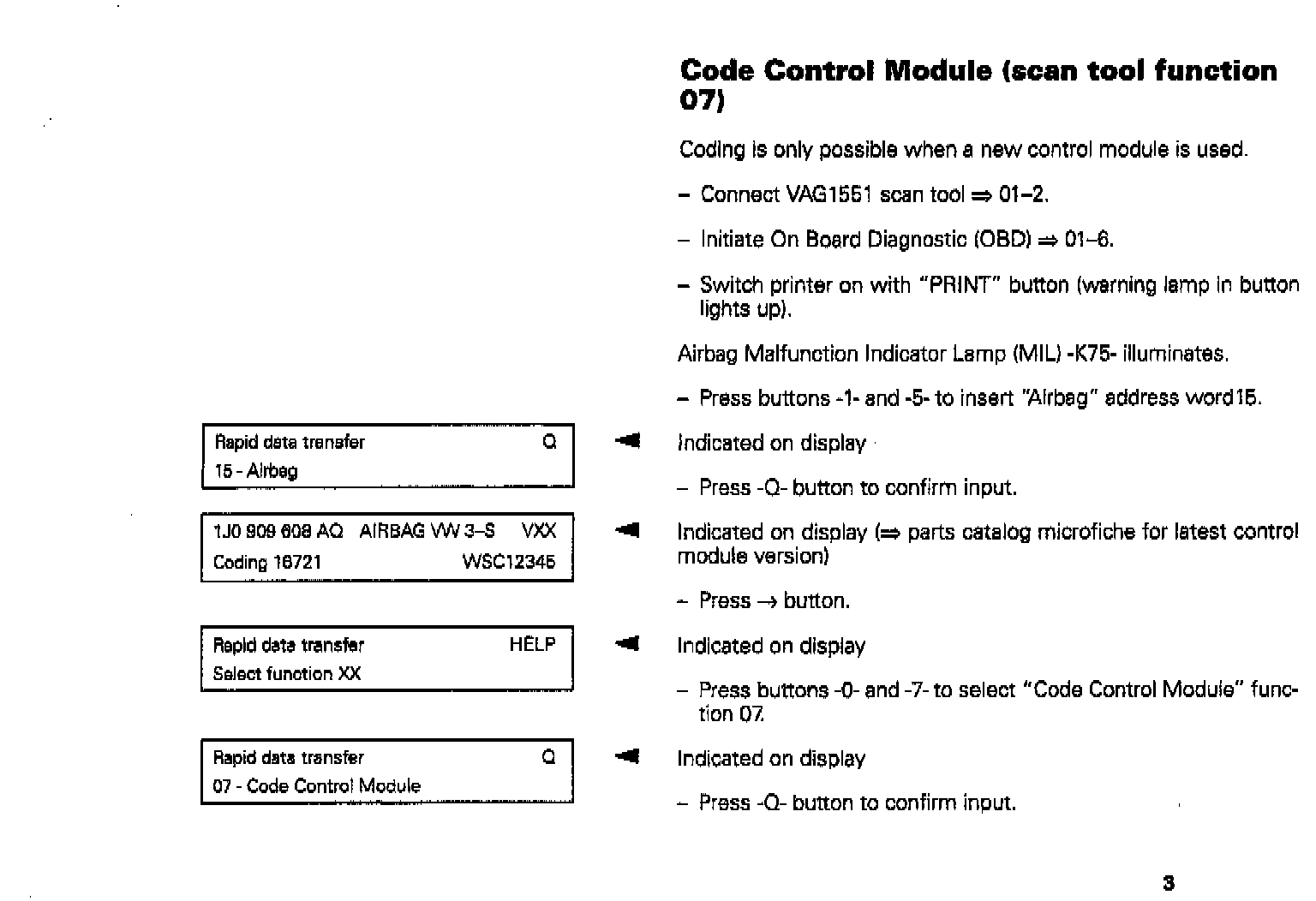

Code Control Module (scan tool function 07)

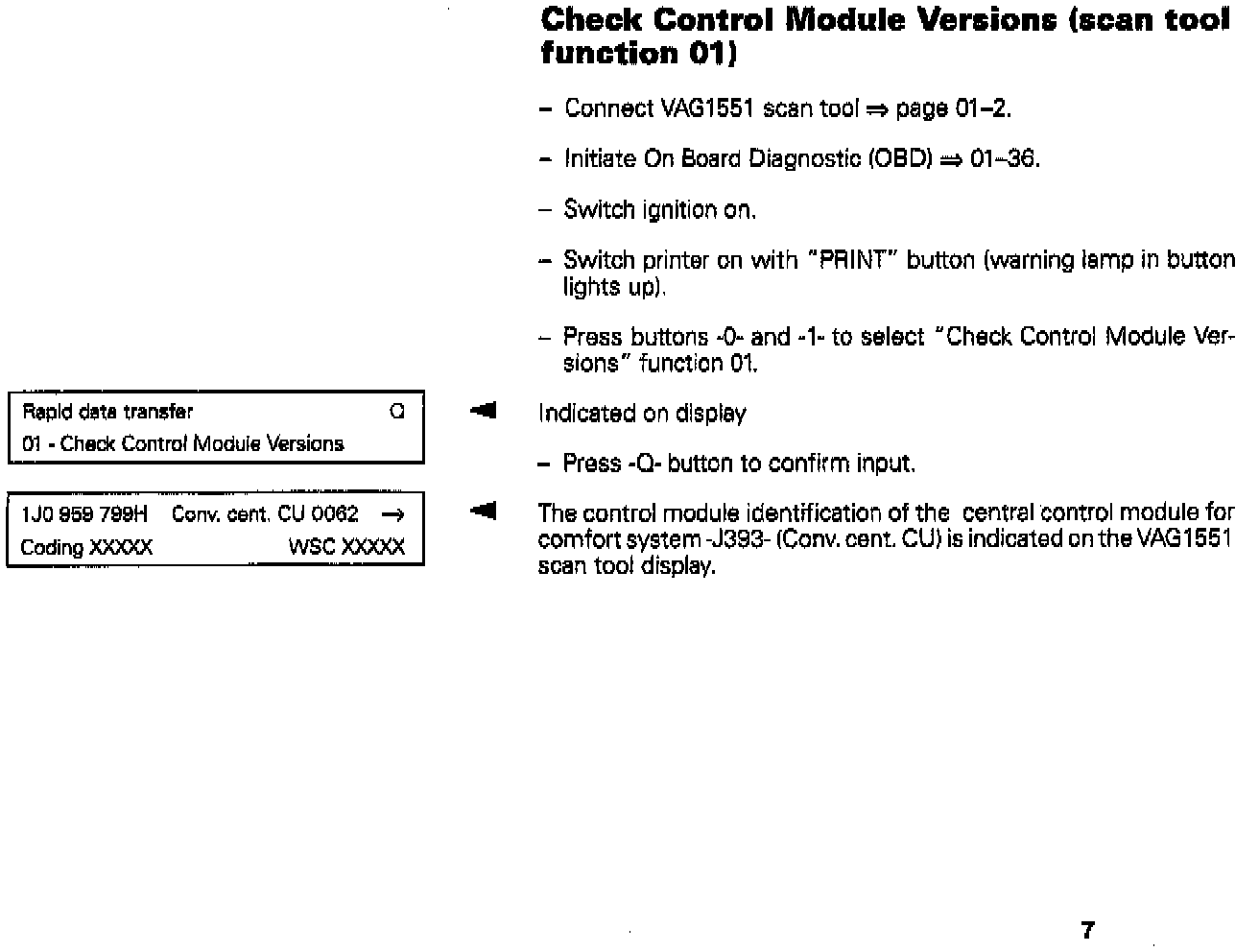

Check Control Module (scan tool function 01)

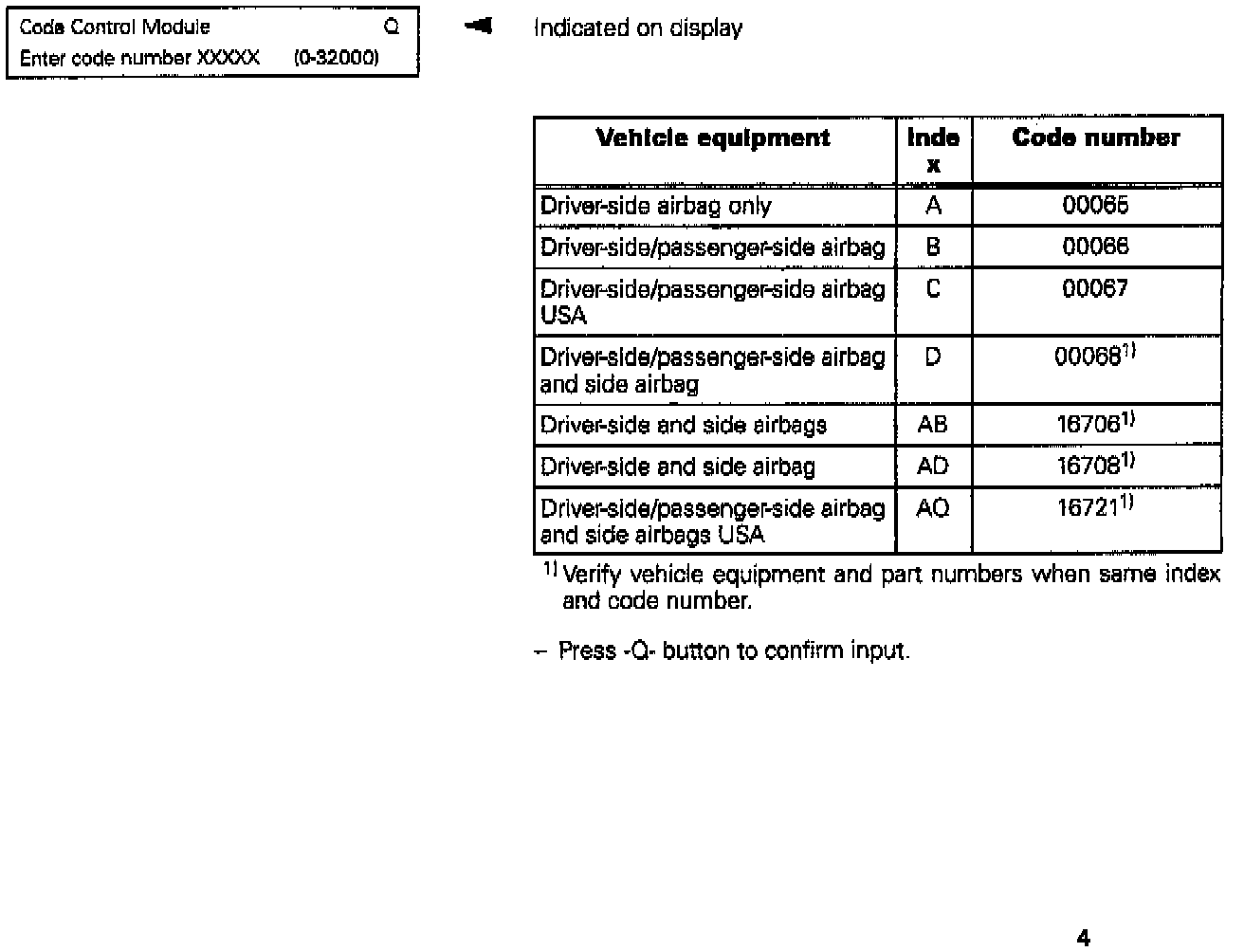

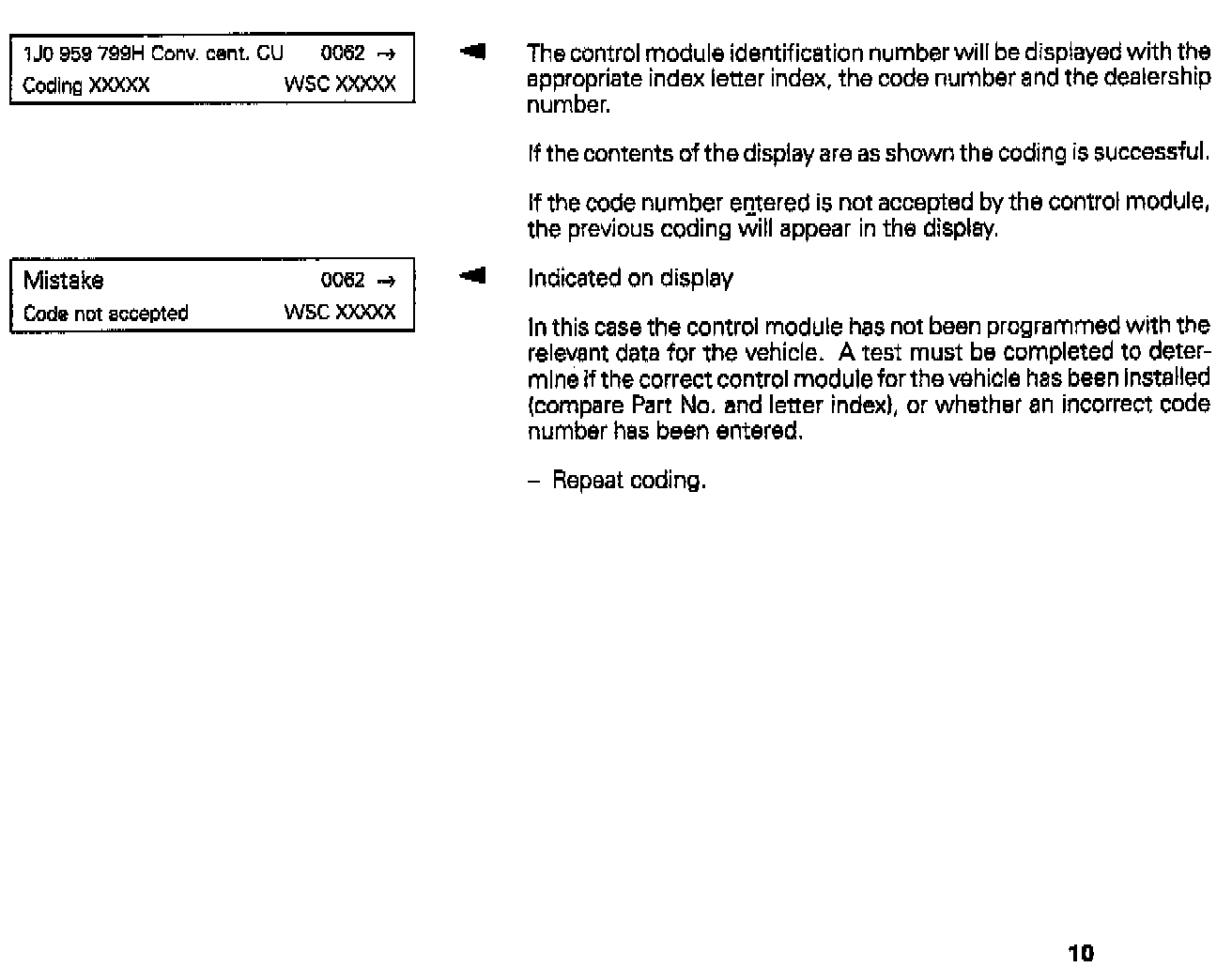

Code Control Module (scan tool function 07)

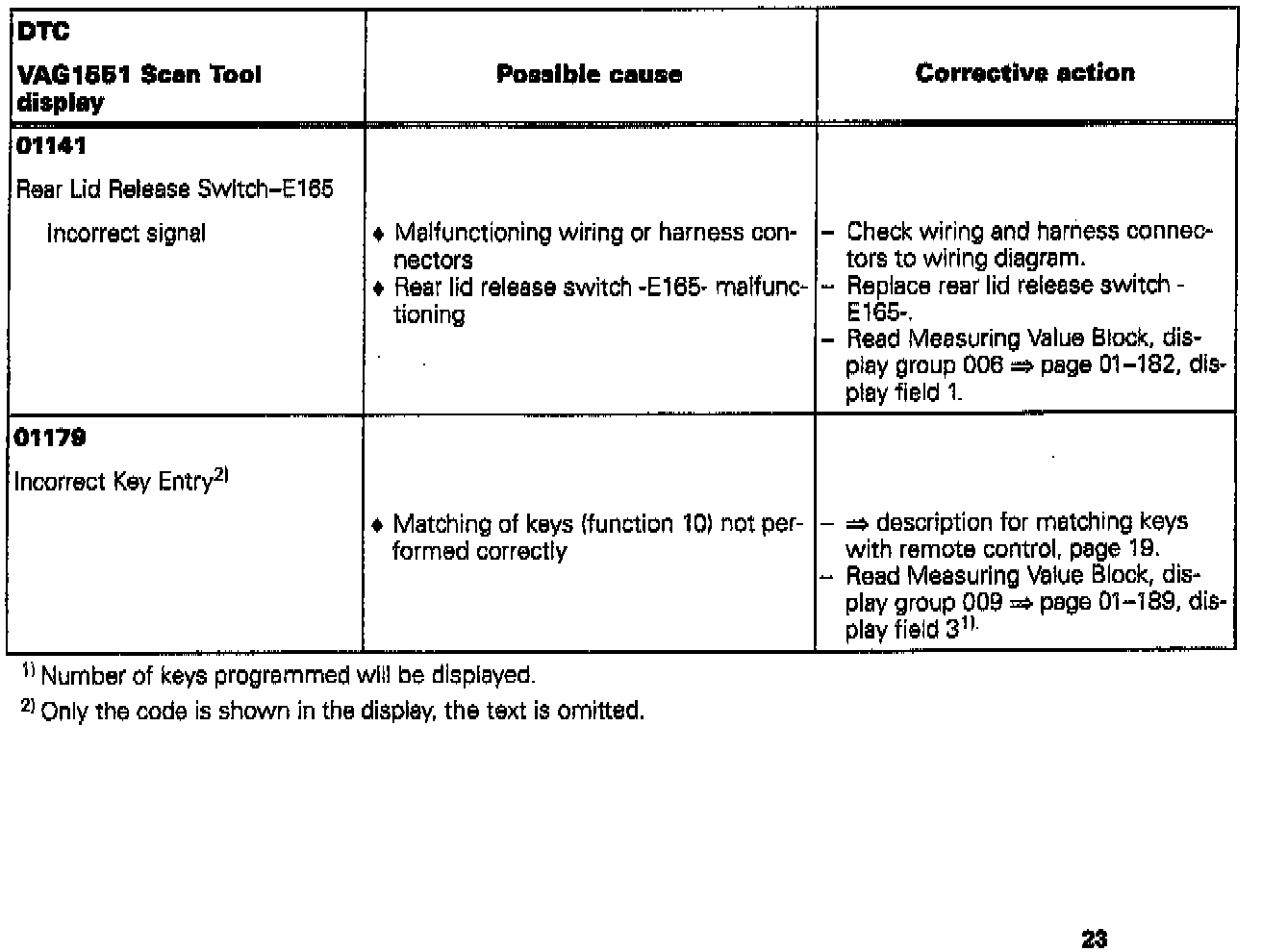

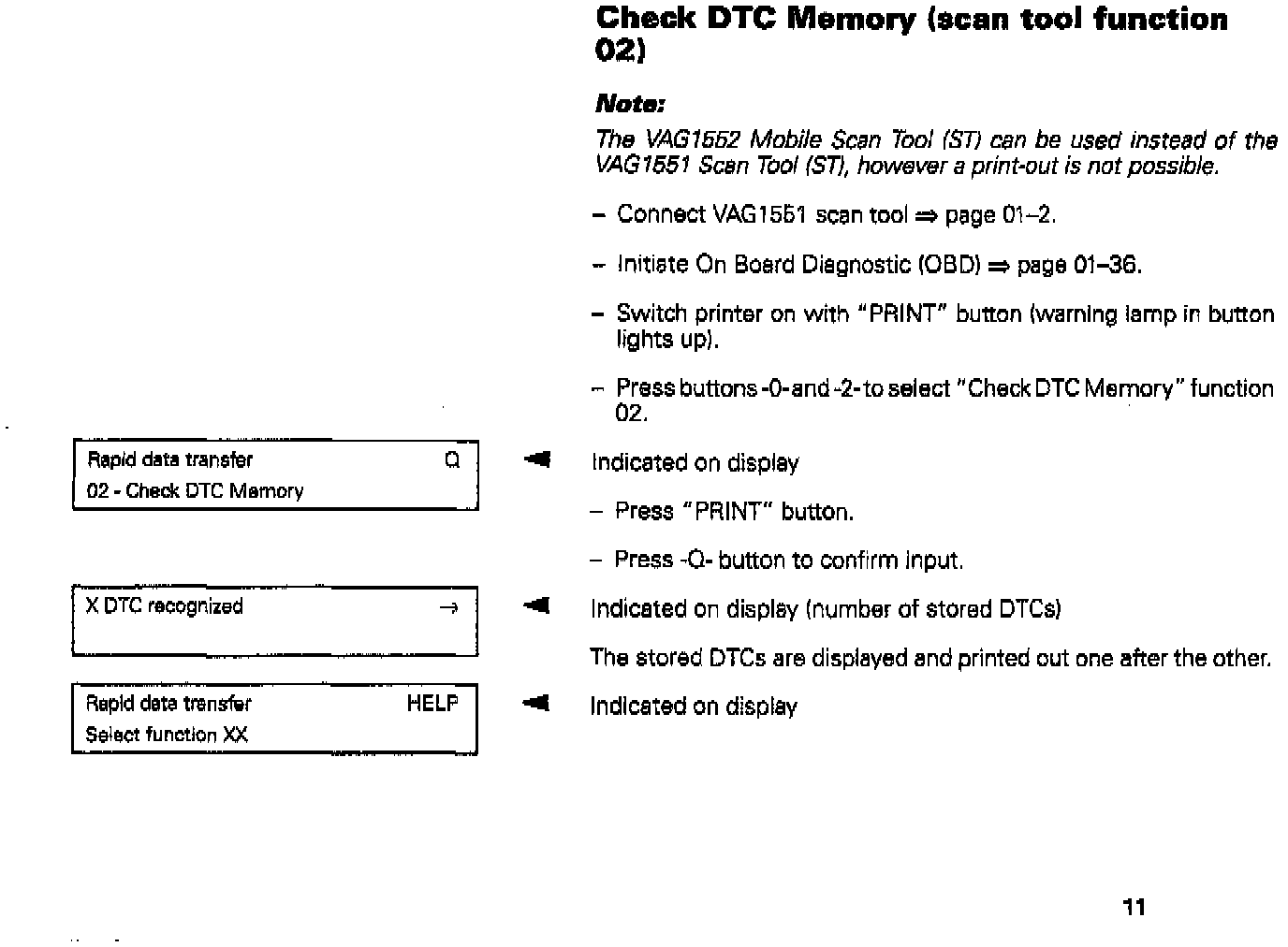

Check DTC Memory (scan tool function 02)

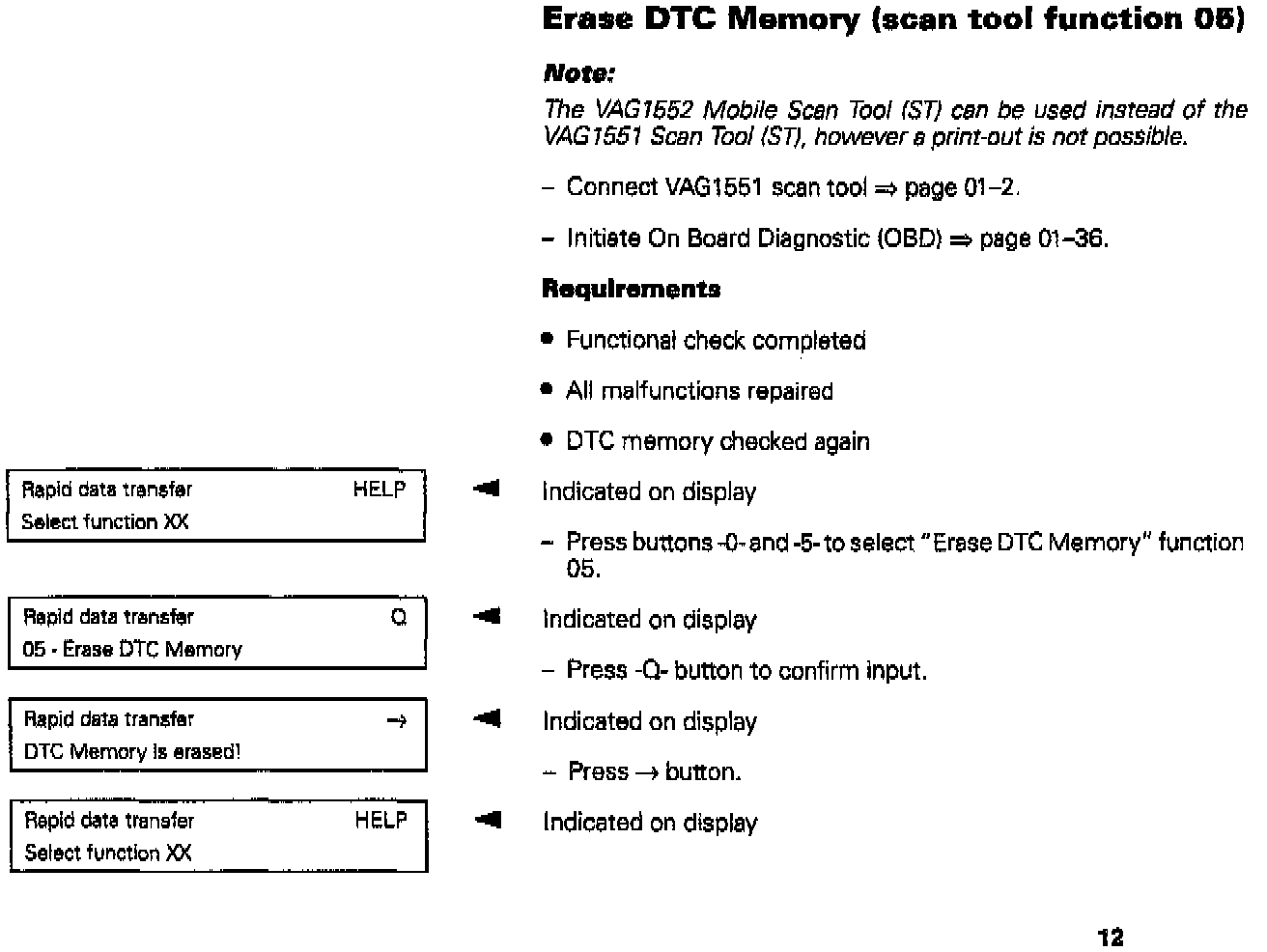

Erase DTC Memory (scan tool function 05)

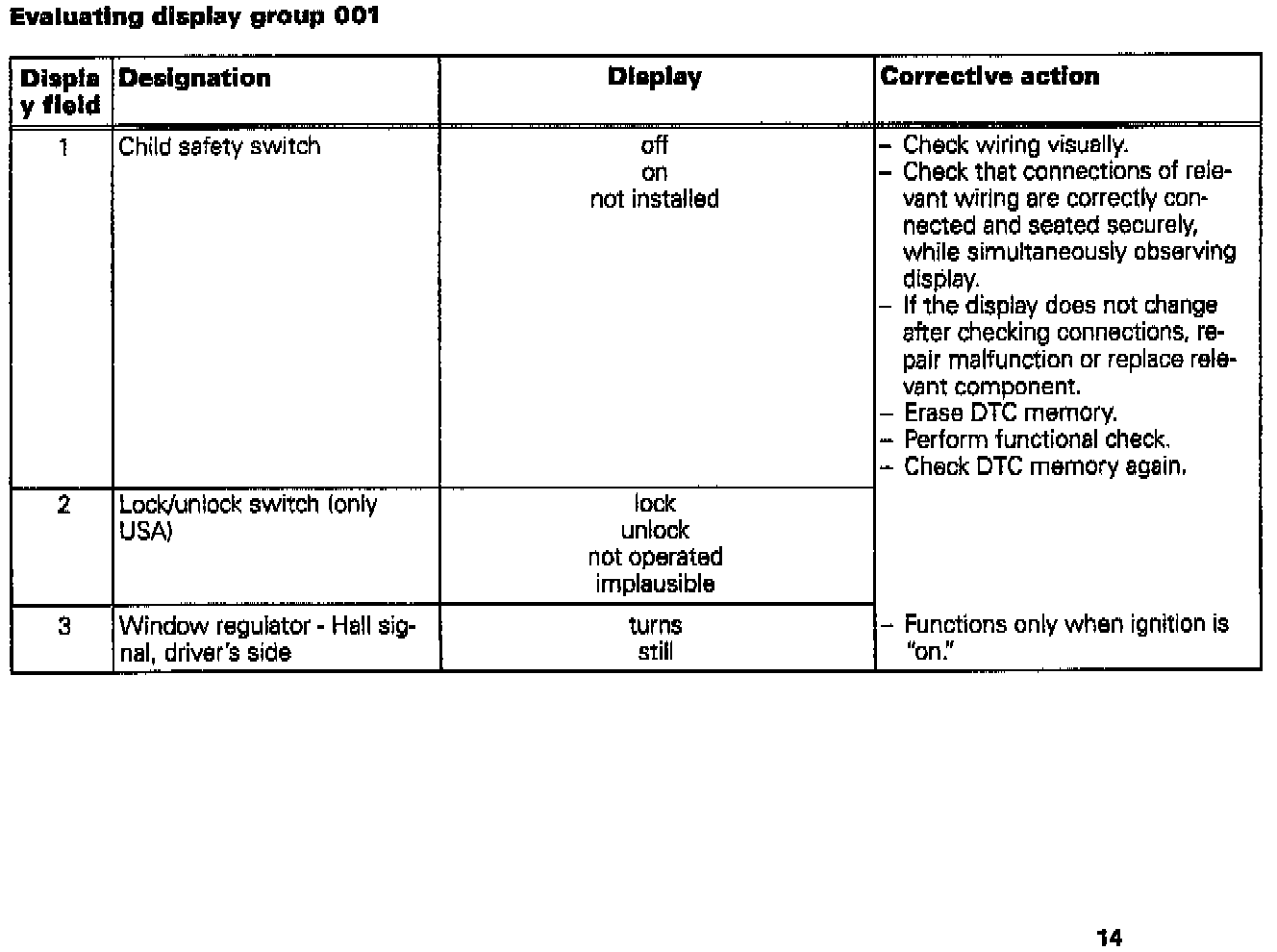

Evaluating display group 001

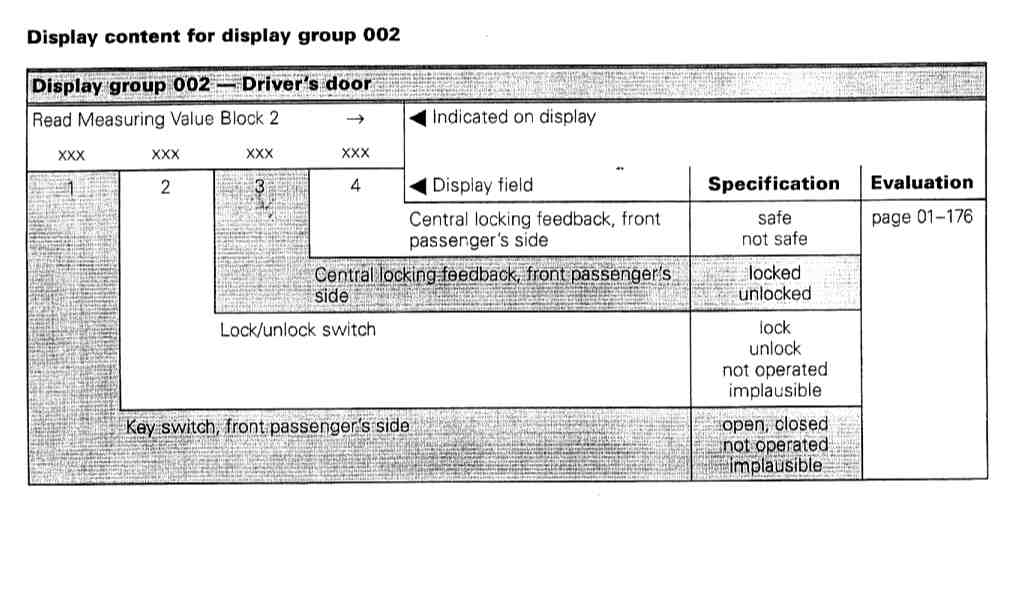

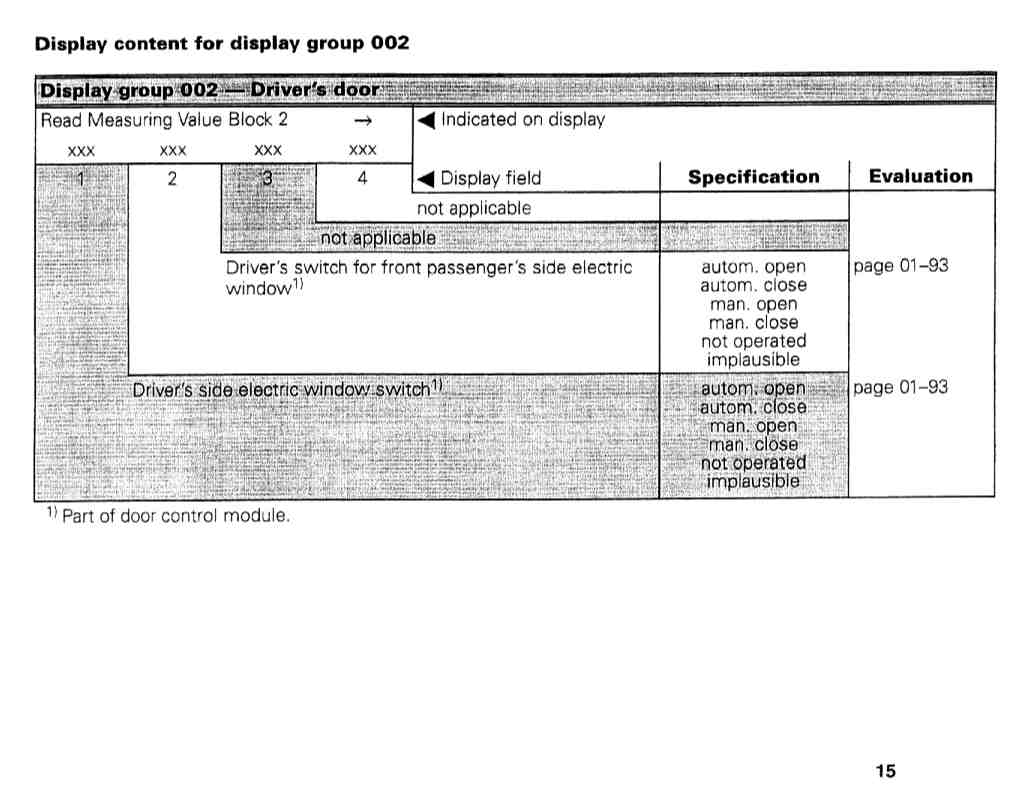

Display content for display group 002

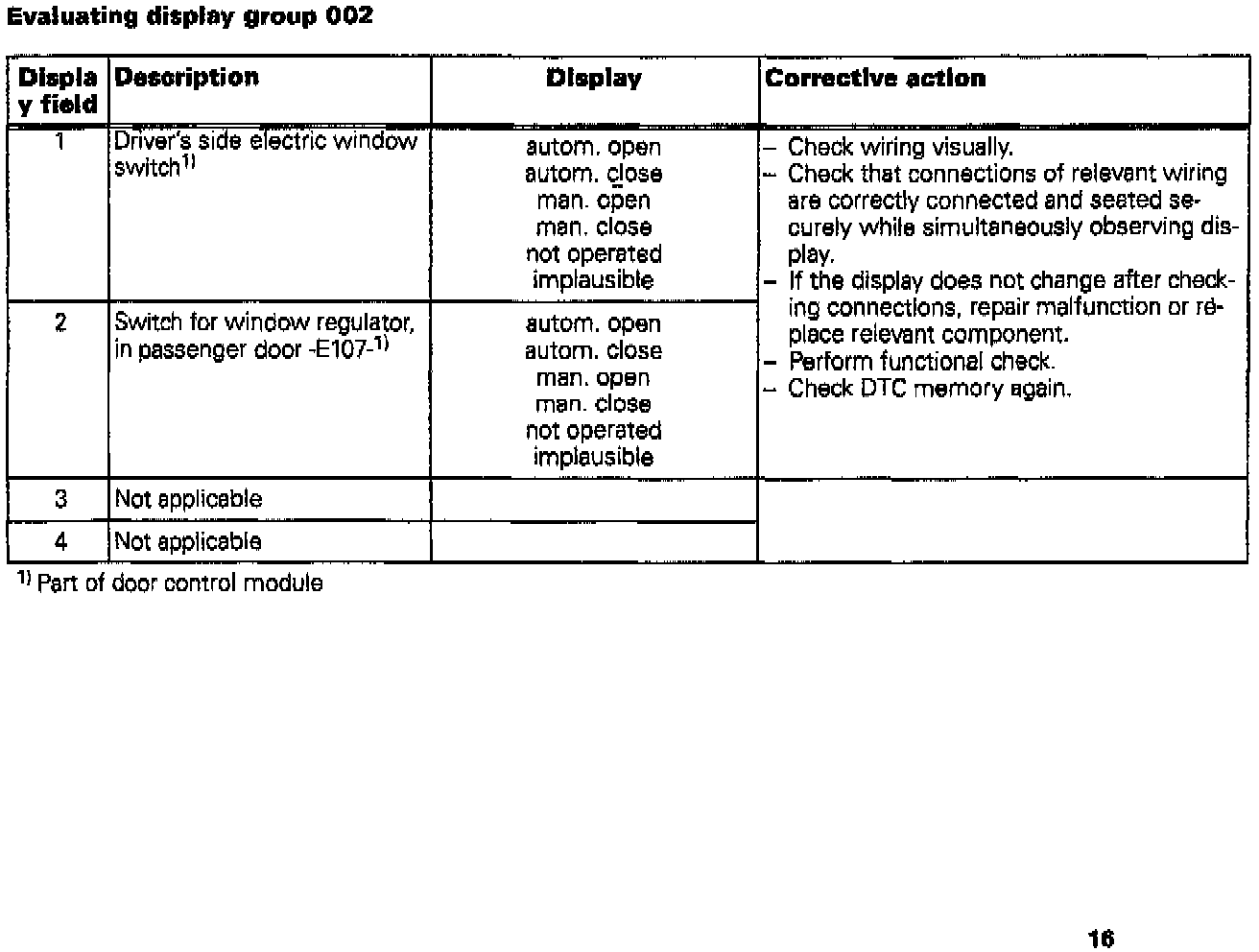

Evaluating display group 002

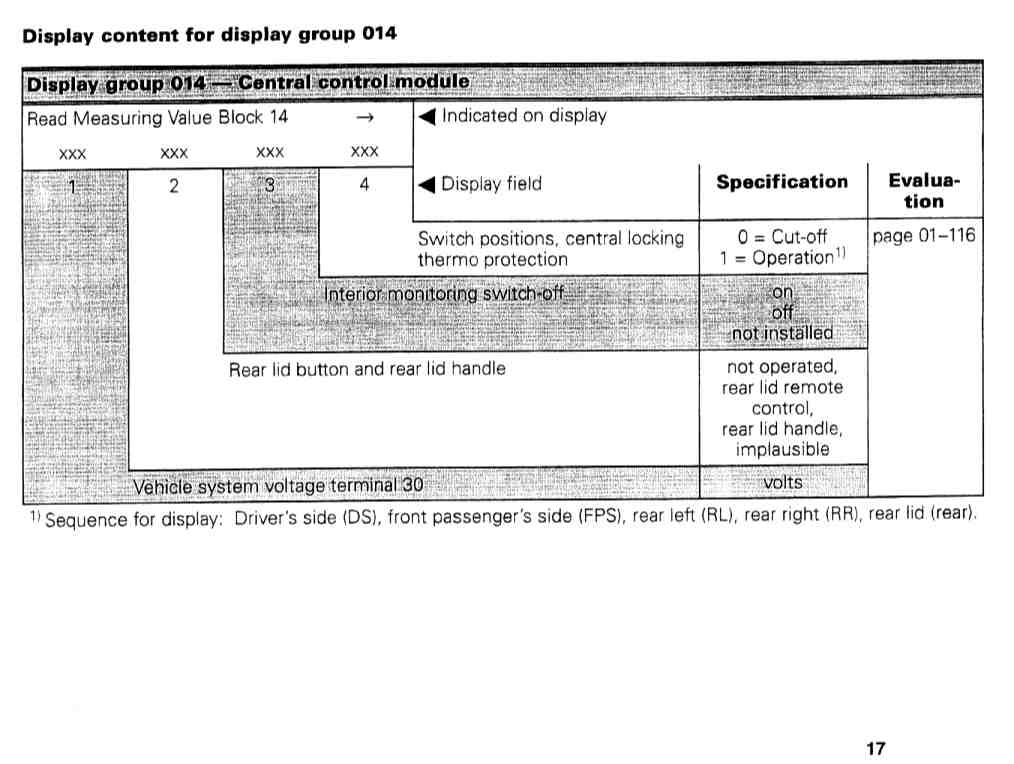

Display content for display group 014

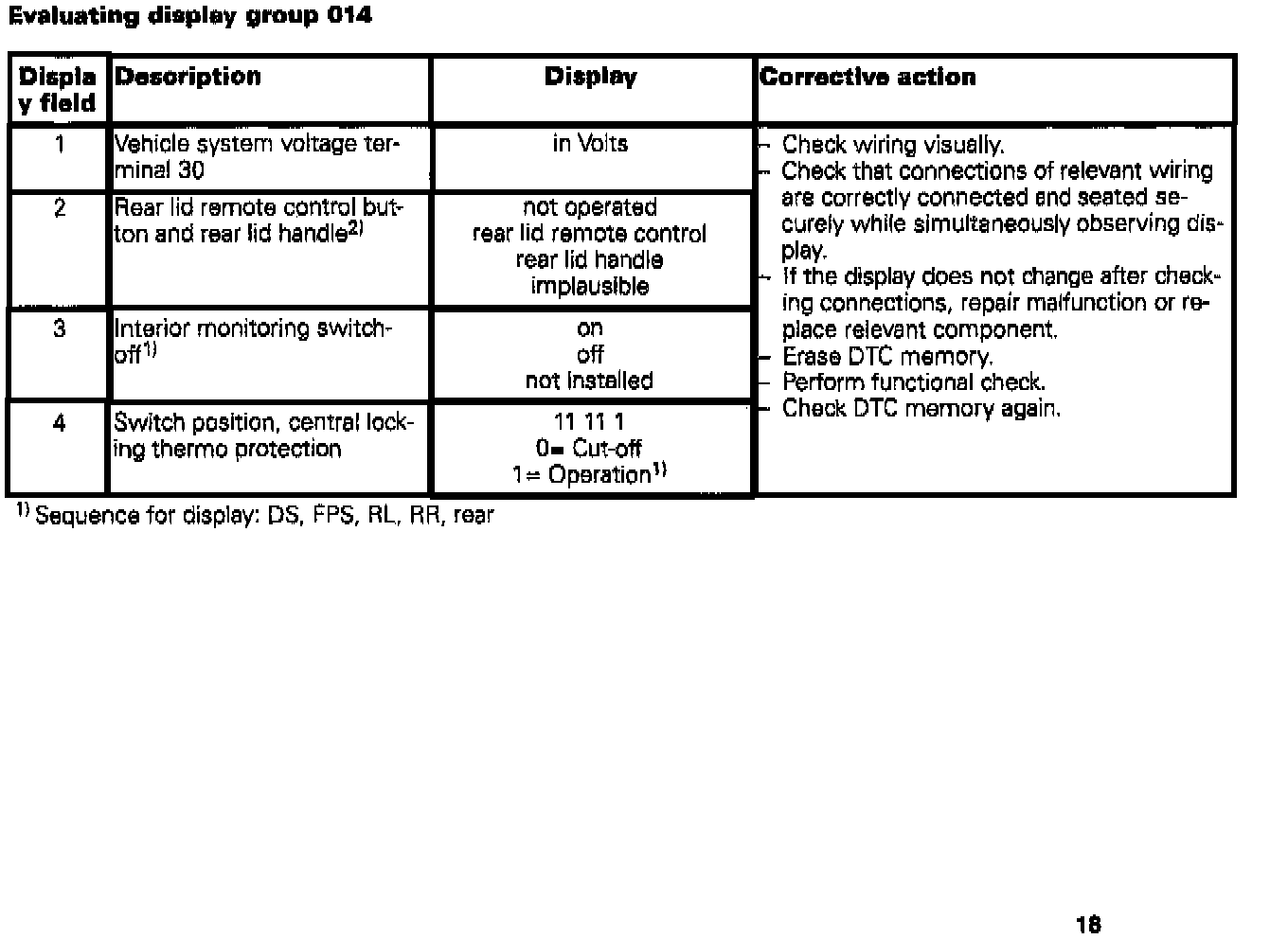

Evaluating display group 014

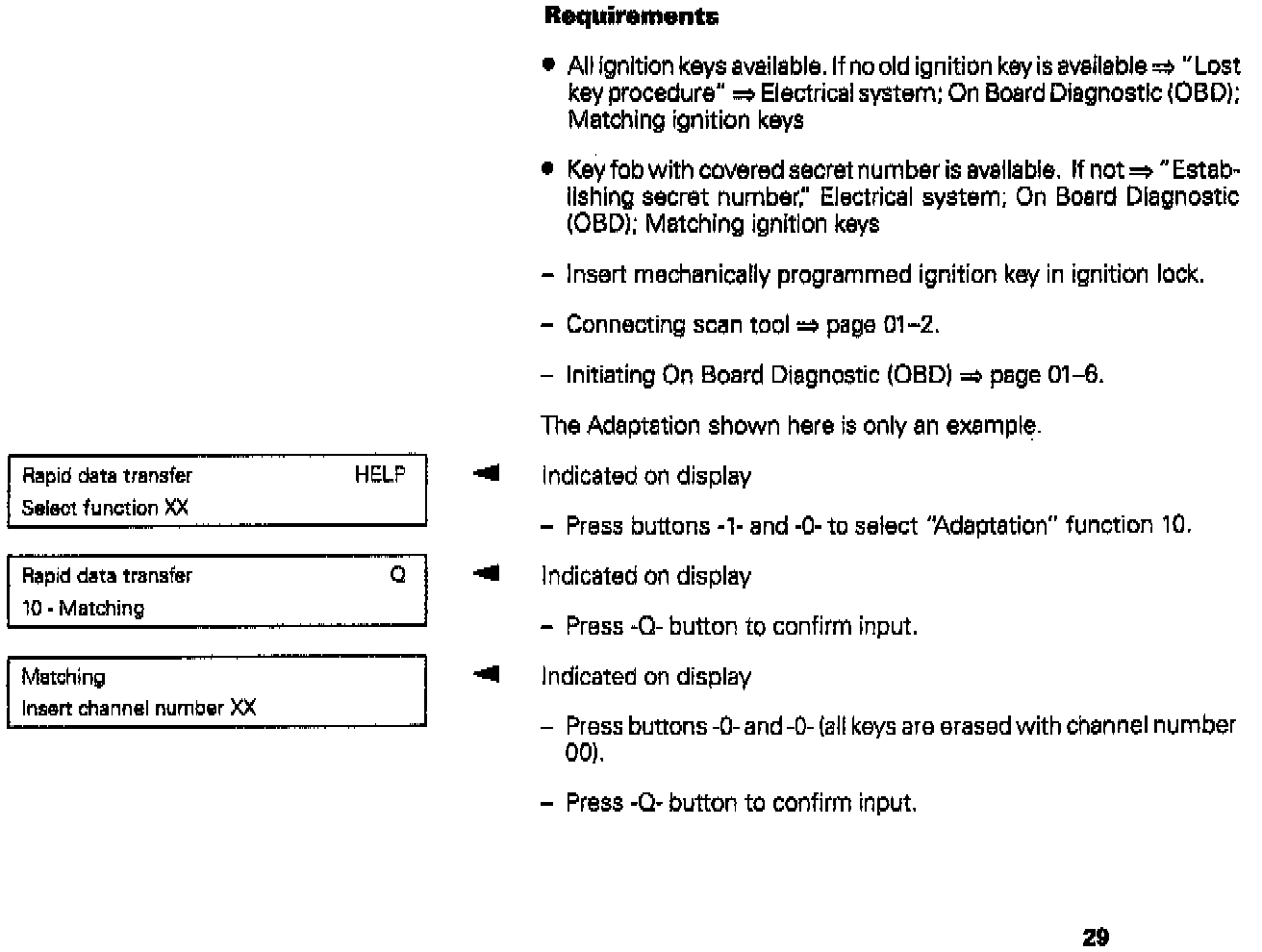

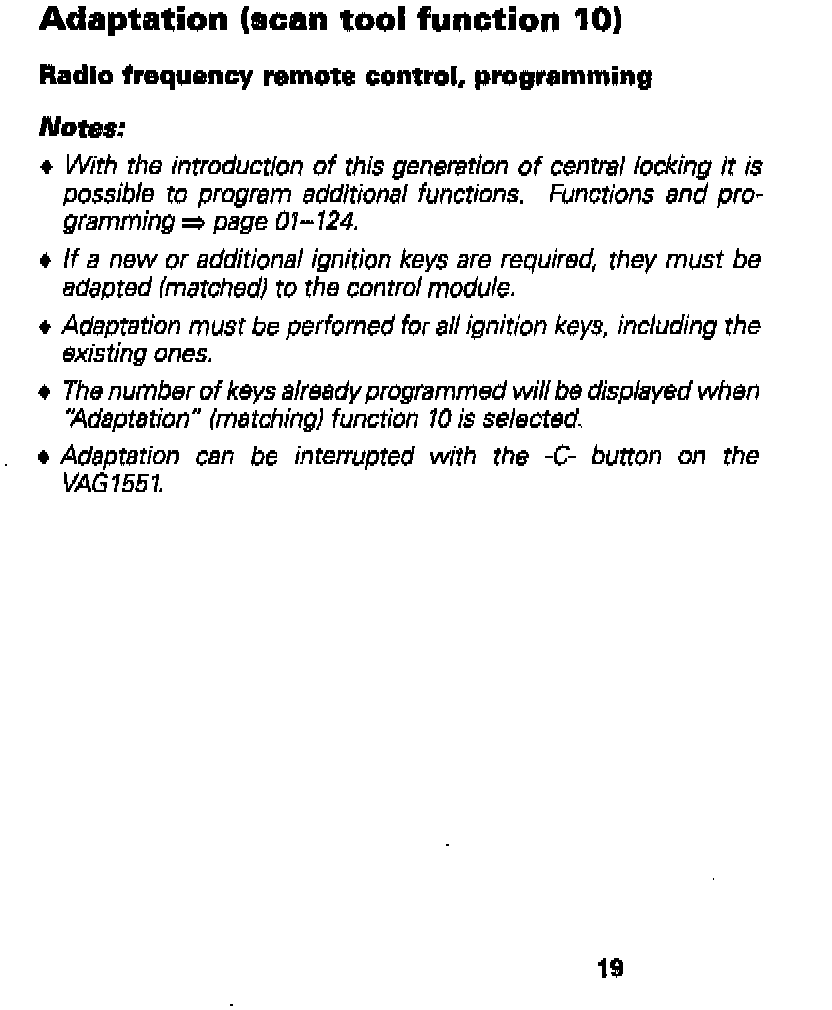

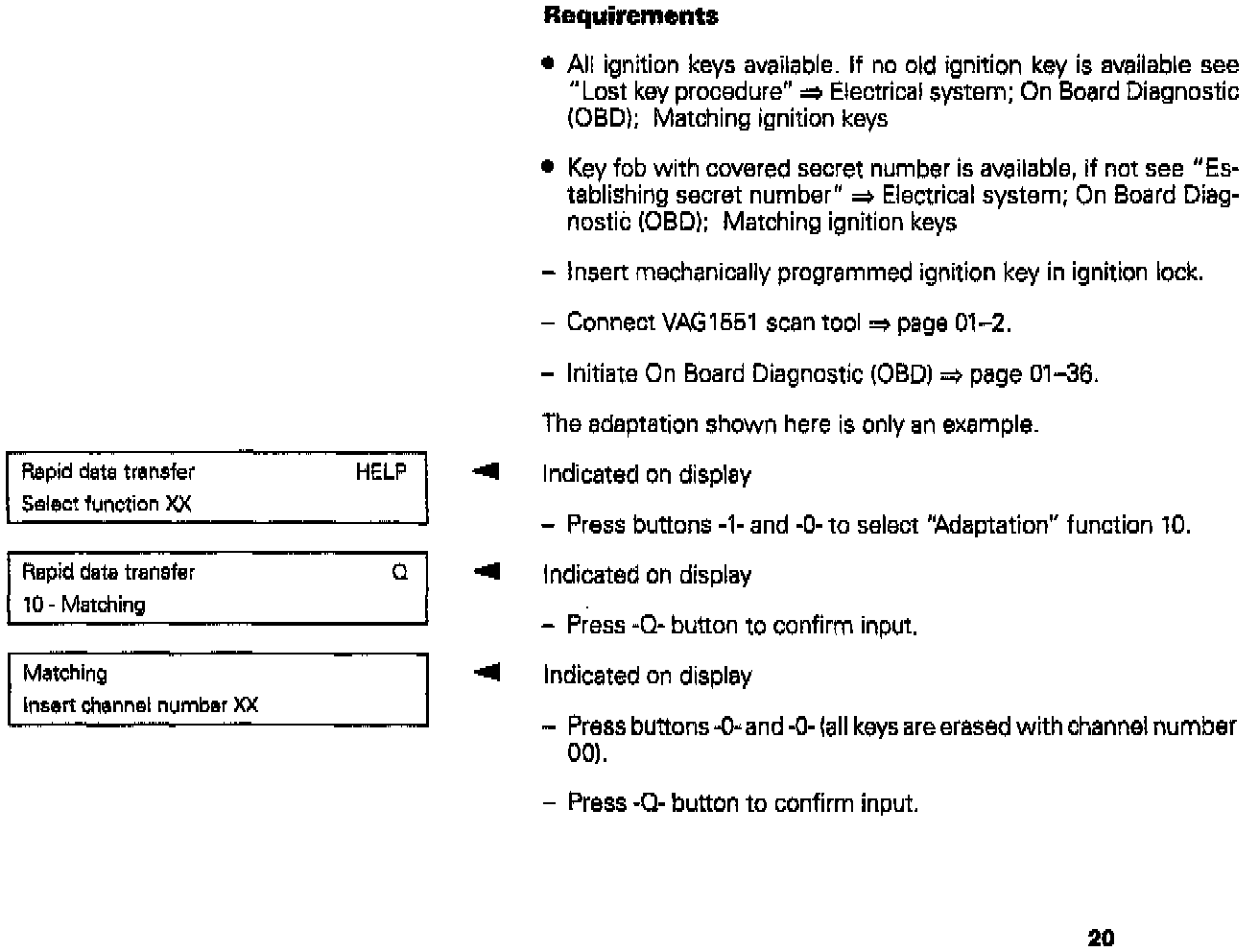

Adaptation (scan tool function 10)

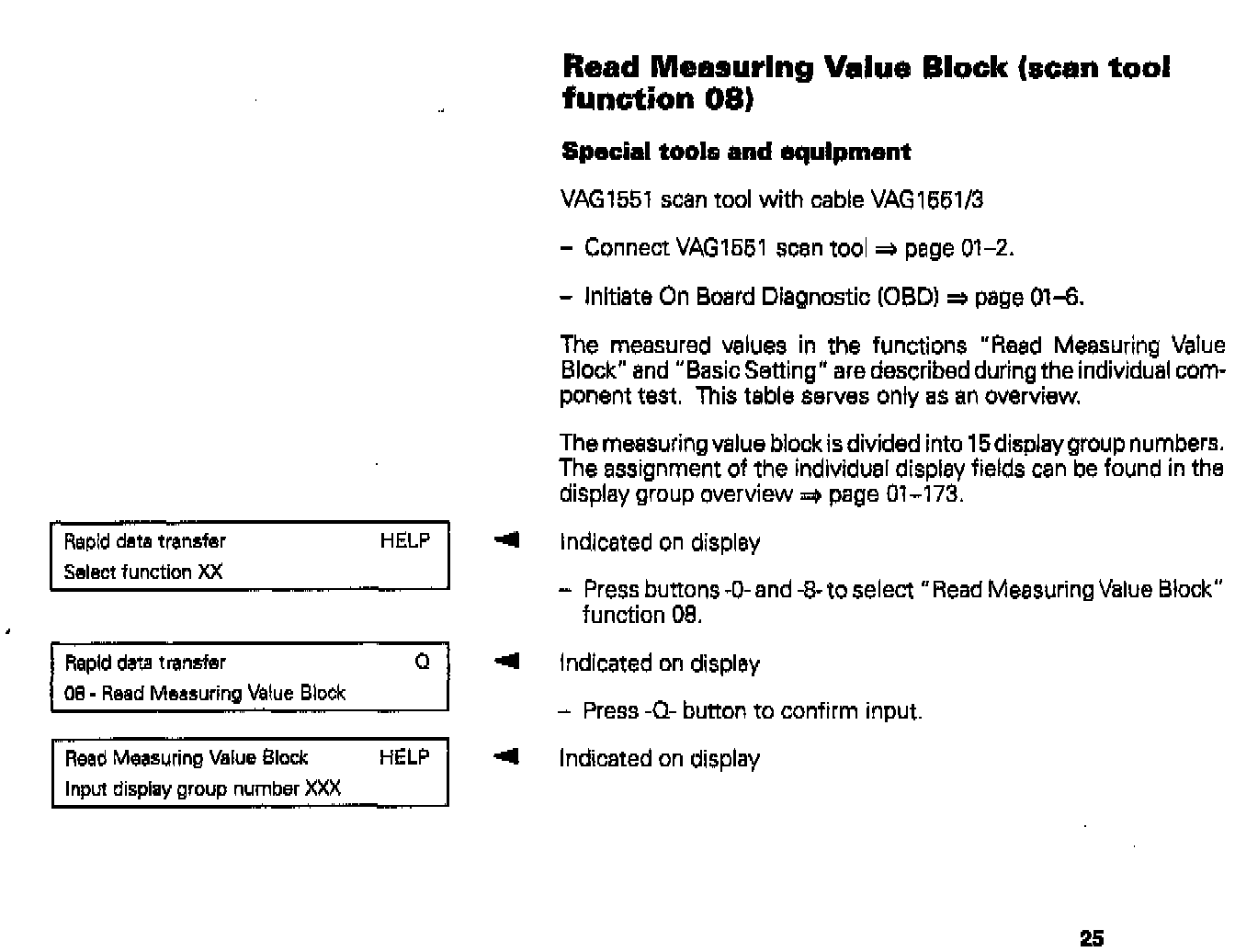

Read Measuring Value Block (scan tool function 08)

These pages have been updated for content and clairity. Please file them in your Body-On Board Diagnostic (OBD) Repair Manual.
