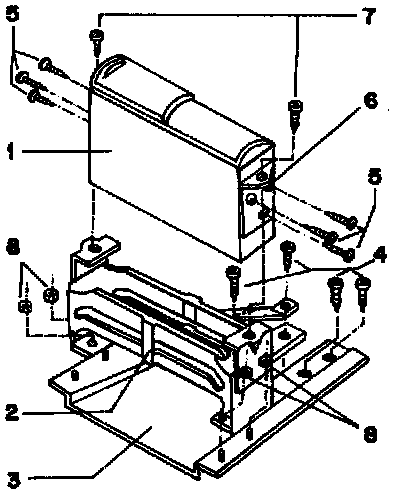

Installed Position

Rear side rail of luggage compartment floor, ahead of right tail light assembly.





1. - CD changer
2. - CD changer mounting bracket
3. - Main bracket
4. - Self tapping screw (4.8 x 19)
5. - Self tapping screw (5 x 8)
6. - Support
7. - Self tapping screw (4.8 x 19) and washer (5.3 x 10 x 1)
8. - Hex nut (MS)
