Specifications
>>
Mechanical Specifications
>>
Engine
>>
Engine Mount
>>
Left Rear
>>
Manual Transaxle
Manual Transaxle

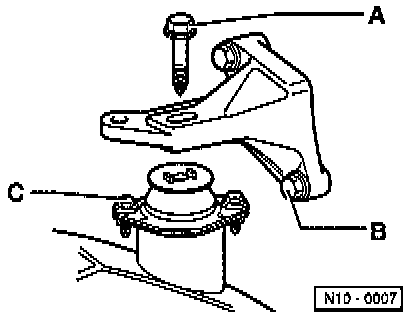

TIGHTENING TORQUE
Bolt A
60 Nm (44 ft. lbs.)
Bolt B
25 Nm (18 ft. lbs.)
Bolt C
30 Nm 122 ft. lbs.)
