Passat Wagon (3A5) L4-1.9L DSL Turbo (AHU)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Engine Mount
>>
Left Rear
>>
Automatic Transaxle
Automatic Transaxle

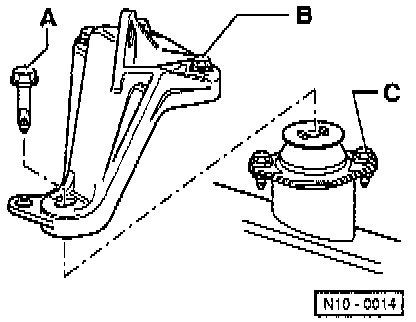

TIGHTENING TORQUE
Bolt A
60 Nm (44 ft. lbs.)
Bolt B
25 Nm (18 ft. lbs.)
Bolt C
30 Nm (22 ft. lbs.)
