Secondary Air Injection System - Pump Location

Group: 26

Number: 97-02

Date: May 21, 1997

File this Technical Bulletin in Repair Manual No: W42 011 294 107

Subject:
Secondary Air Injection System Pump, Location

Model(s):
Golf/Jetta with 2.8 Liter VR6 1997 -->
(Engine Code AAA)

This bulletin contains new information that applies to Repair Group 26 that will be integrated into the next Repair Manual printing.

This Technical Bulletin MUST be filed in the Repair Manual listed above.

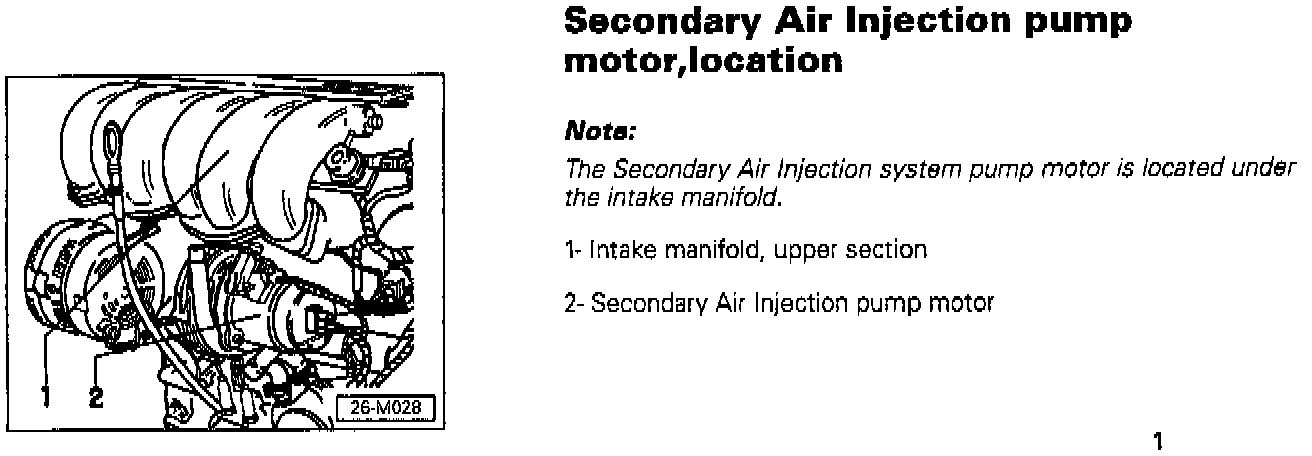

Secondary Air Injection pump motor, location
