Drive Axles - Reparing Units With Triple-Rotor Joints
Group: 40Number: 97-O2
Date: Feb. 28, 1997
File This Technical Bulletin in Repair Manual No: W42 012 194 108
Subject:
Drive Axles With Triple-Rotor Joints, Repairing
Model(s):
Passat 1995 -->
Drive axles with triple-rotor joints are installed in vehicles with 4-cylinder engines and automatic transmissions. Installation of the triple-rotor joints in production began as a running change.

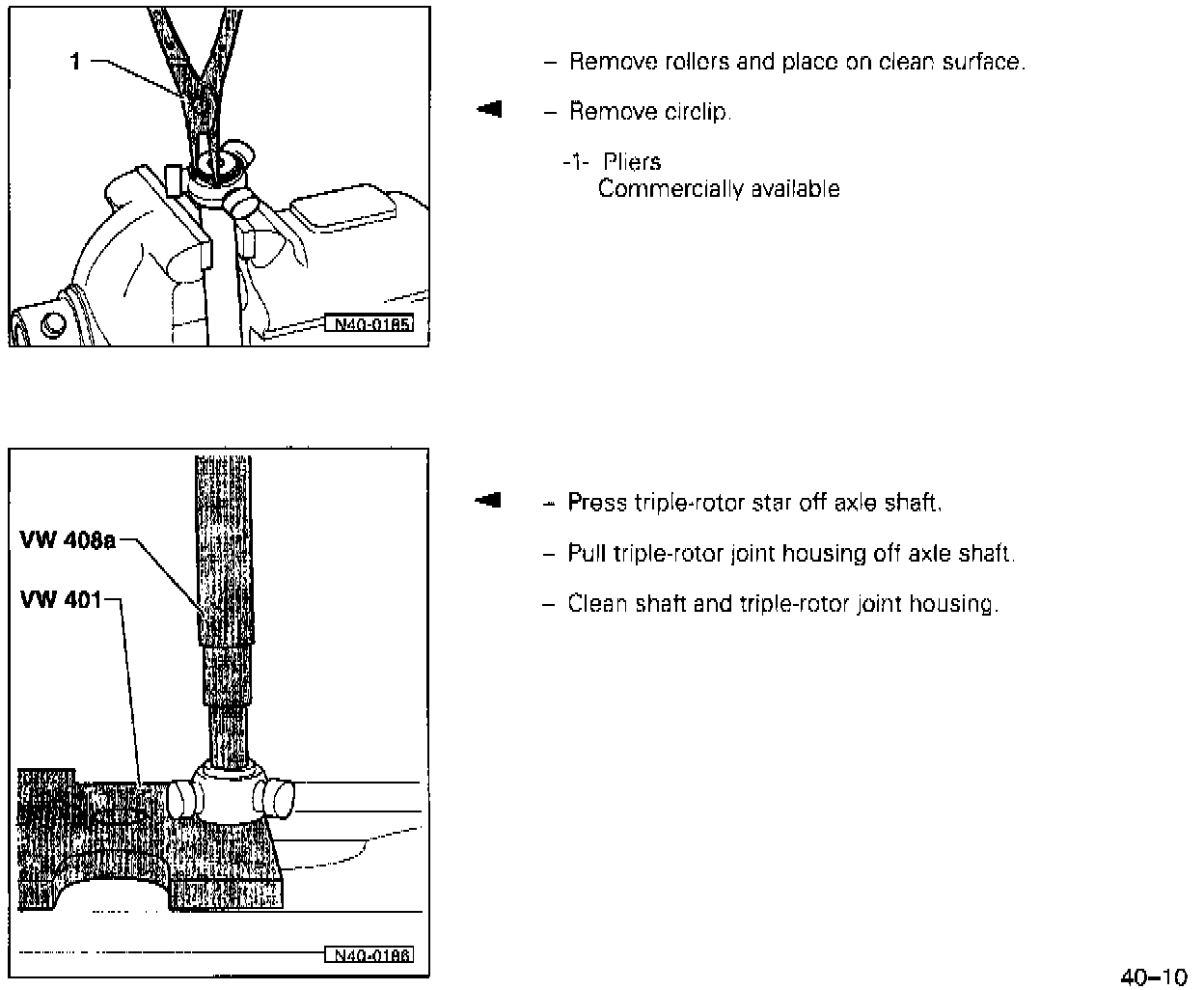

Triple-rotor joints have three rollers instead of the six bearings used in the previous constant velocity joint. They are arranged on a triple-rotor star at 120° intervals

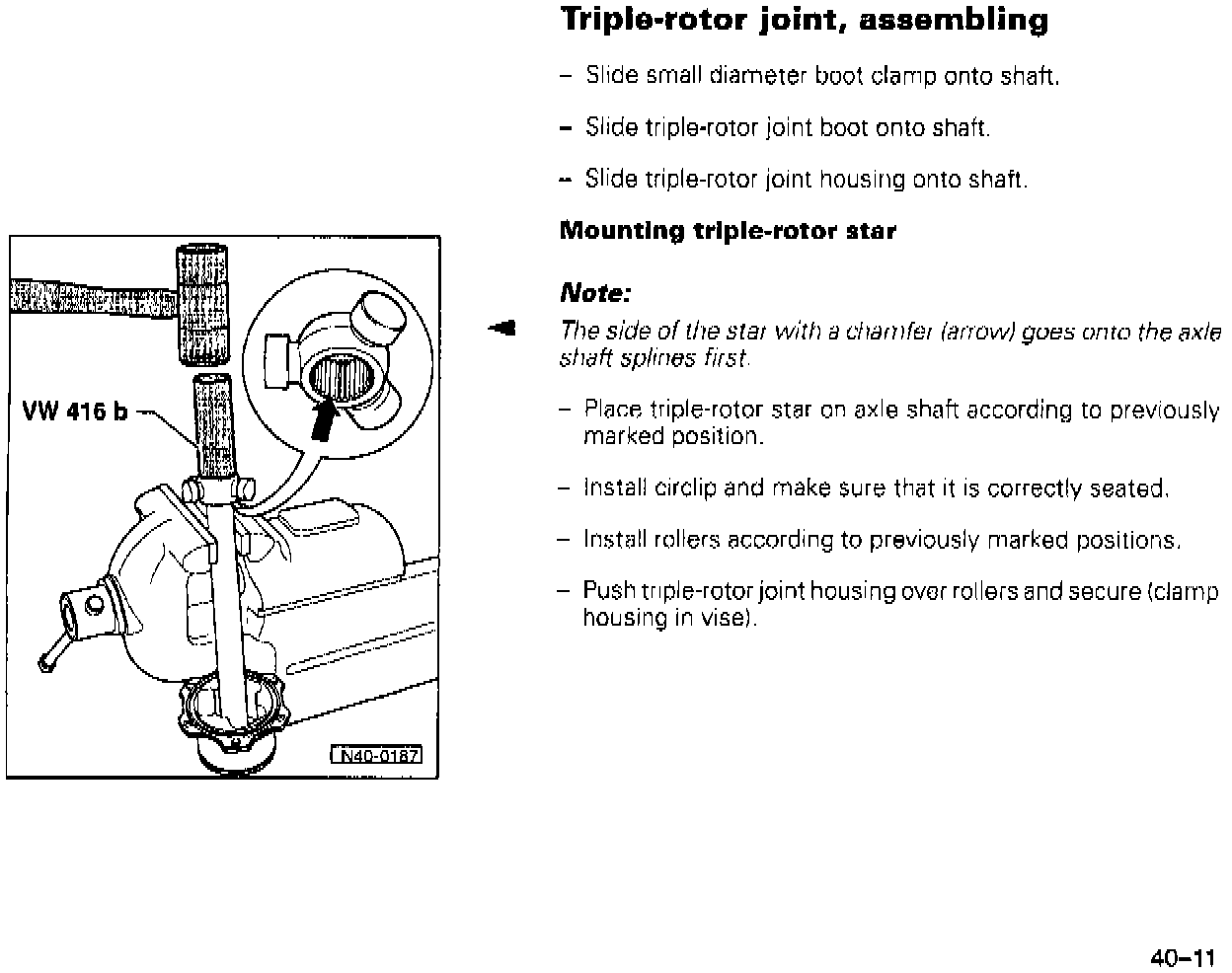

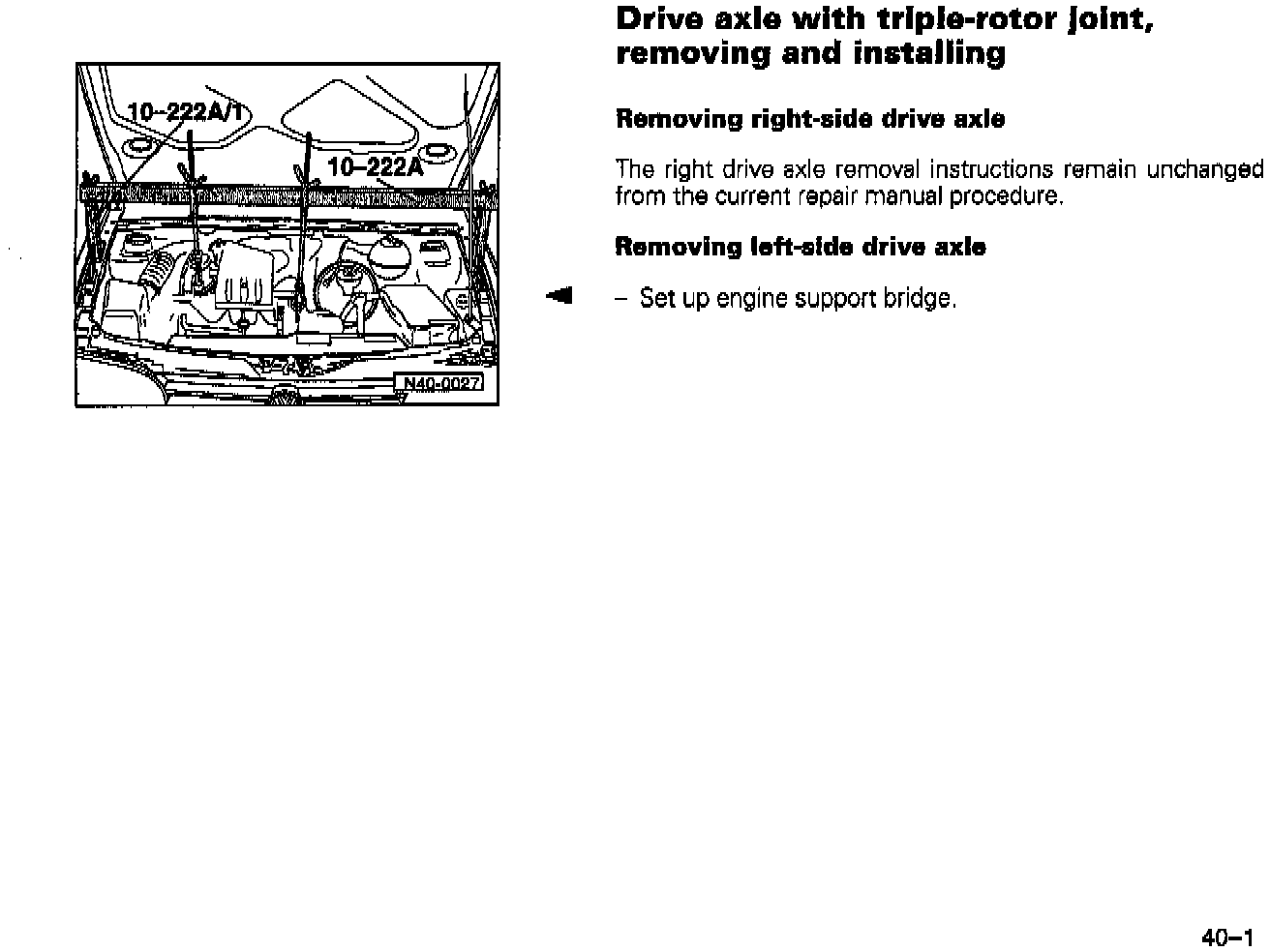

Beginning with this Technical Bulletin triple-rotor joints are repairable. Use the following procedures when removing, installing, disassembling and assembling triple-rotor joints.
This information is new and will be integrated into the next Repair Manual update.
