Upper Lines

It is not intended that repair work be carried out on the vane pump. If complaints are received determine cause with the help of pressure and leakage tests. Replace pump if faulty.

NOTE:
- Pumps supplied as spare parts are not filled with oil. Fill the pump with G 002 000 hydraulic oil to rotate it by hand, otherwise the pump may be damaged or noisy during operation.
- Type of oil: hydraulic oil G 002 000
- Oil system capacity: 0.7-0.9 liter. (0.74-0.95 qt)
- Do not reuse drained hydraulic oil.
- Always replace O-rings.

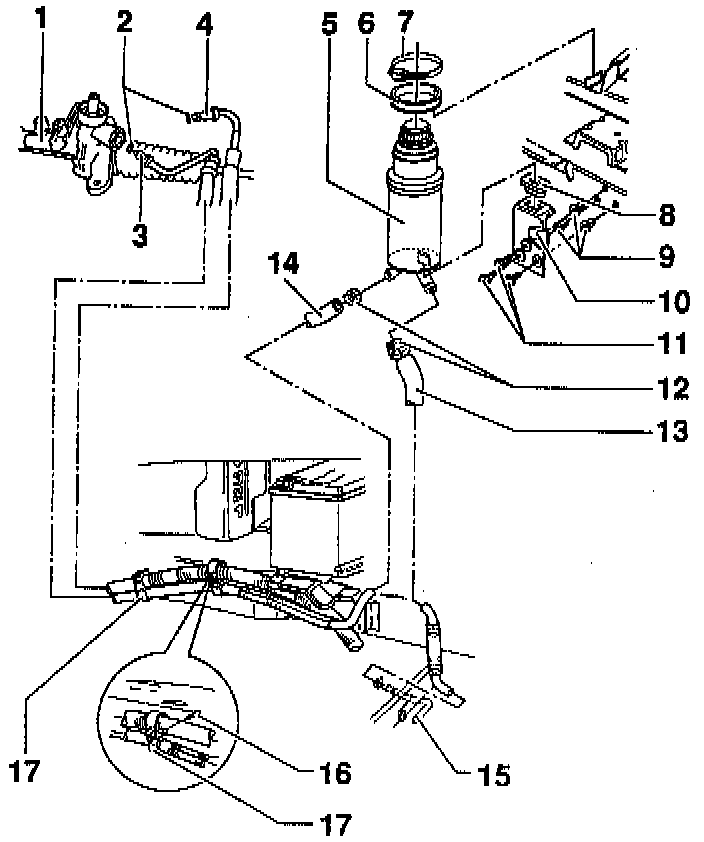

1 Power steering gear

2 O-ring
- Always replace

3 Return line
- Tighten to: 30 Nm (22 ft. lbs.)

4 Pressure line
- Tighten to: 30 Nm (22 ft. lbs.)

5 Reservoir

6 Rubber ring

7 Hose clamp

8 Rubber insert

9 Captive nut

10 Bracket

11 Self-tapping screw

12 Hose clamp

13 Return hose

14 Suction hose
- Reservoir to cooling line

15 Cooling line

16 Threaded stud

17 Bracket
