Evaporator Drain Tube: Service and Repair

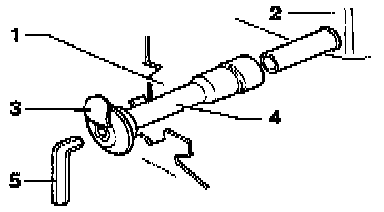

1- Bulkhead
2- Evaporator housing
3- Valve flap. shown raised
4- Water drain valve
5- Hex key 14 mm

Removing:
- Turn valve 45 ° with hex key -5- and pull out.

Installing:
- When installing ensure lip faces downward.
