Air Register: Service and Repair

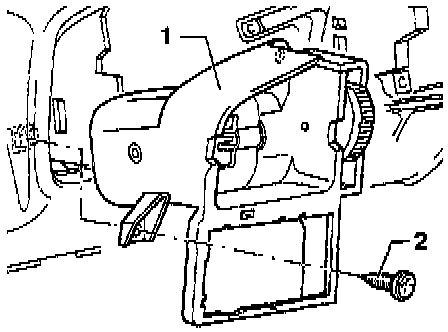

Left Vent, Removing:

- Instrument panel trim, remove. Service and Repair
- Light switch, remove. Service and Repair
- Bolt -2-, remove.
- Vent housing -1-, remove.

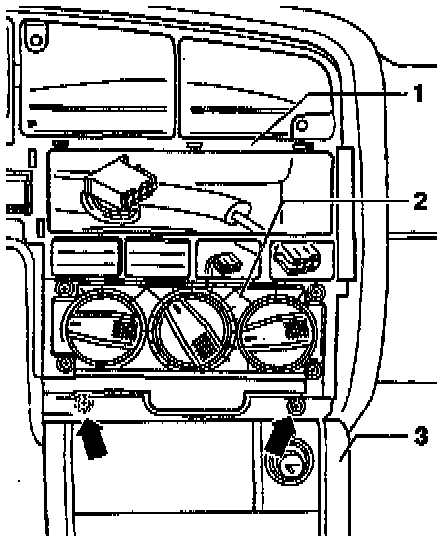

Central Vent, Removing:

- Instrument panel trim, remove. Service and Repair
- Radio, remove.
- Switch, remove.
- Remove control panel trim.
- Control -2-, remove
- Center console -3-, loosen
- Remove 2 screws-arrows- and take out central vent -1-.

Right Vent, Removing:

- Carefully lift and remove adjustable grilles -2- with long nose pliers.
- Remove screw -3- and disengage locating tabs -arrows-.
- Vent housing -1-, remove

Footwell Vent:
- Replacing: Remove shelf on drivers' and passenger side, center console, instrument panel bracket and pedal cluster cover -23-
