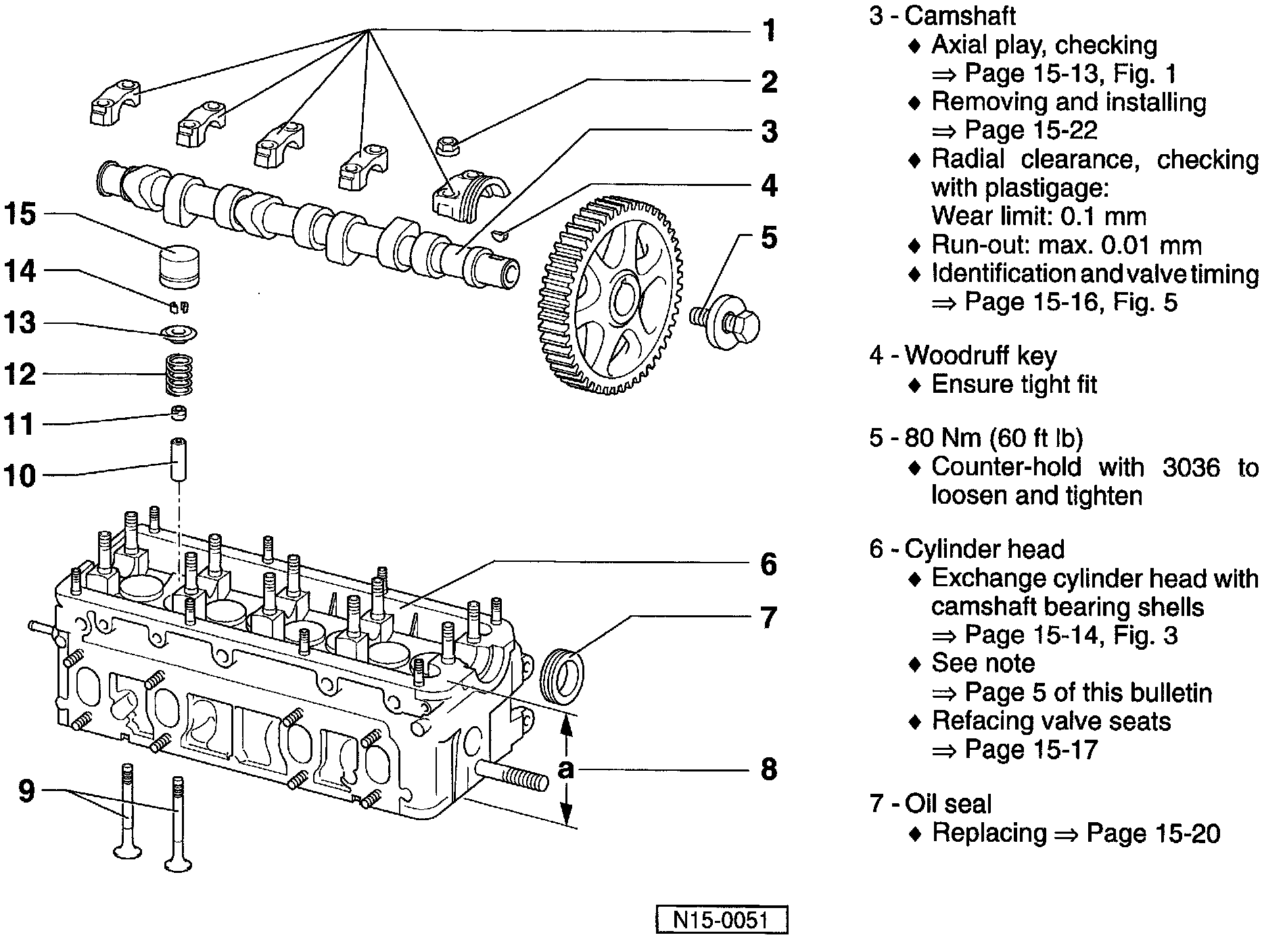

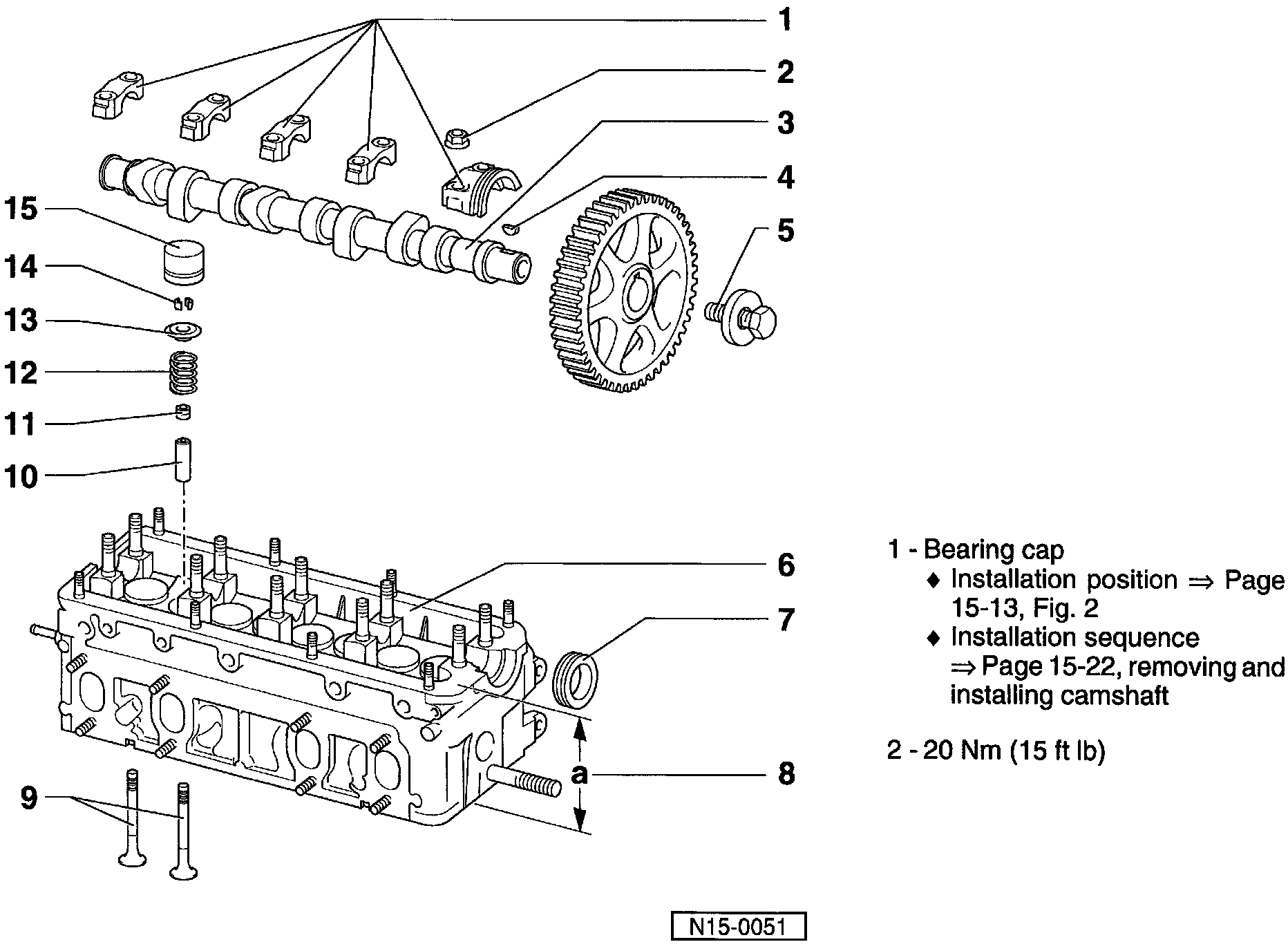

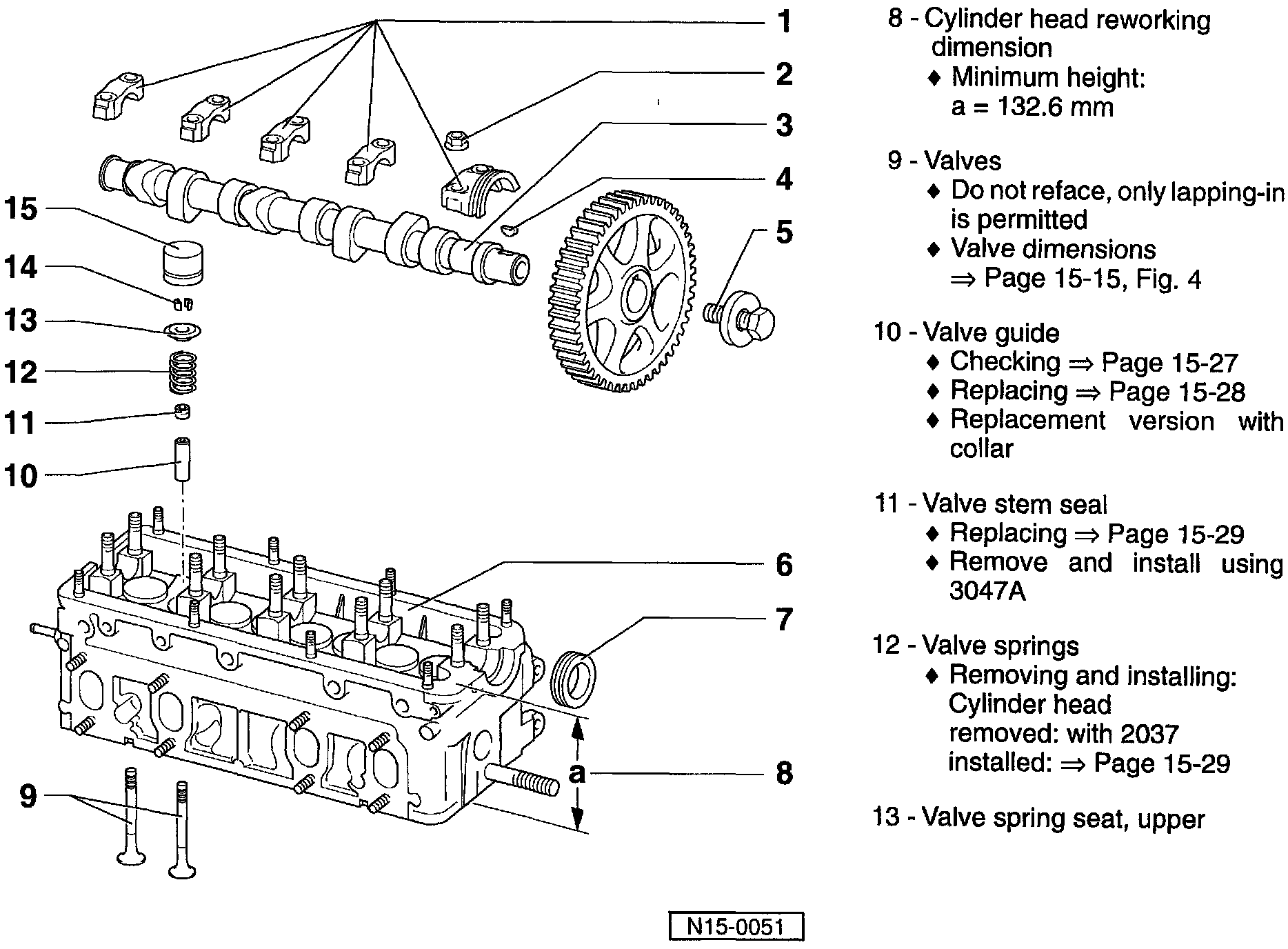

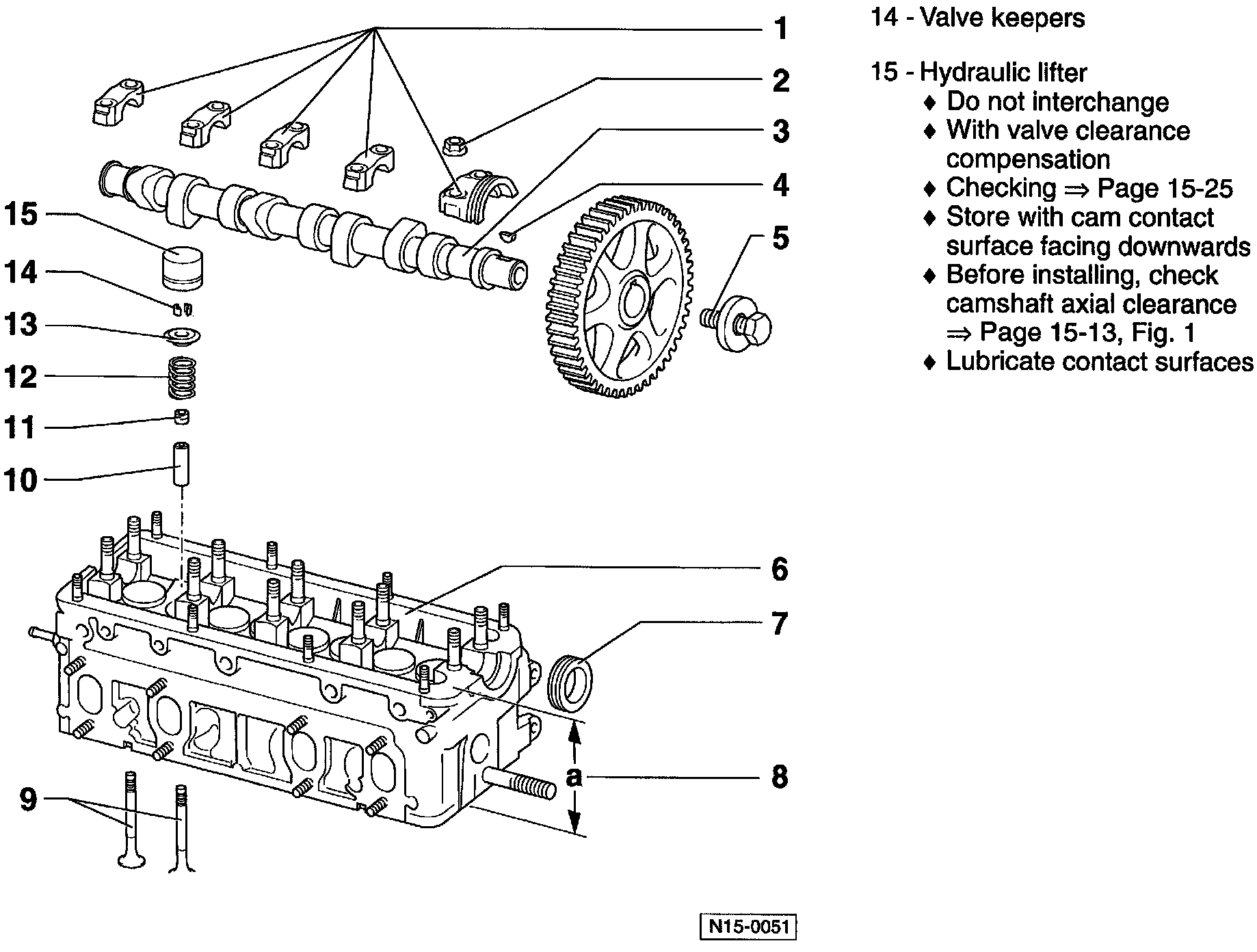

Valve Train Servicing

Valve train, servicing

On pages 15-9 to 15-12 of the Repair Manual the illustration is incorrect. Please cross out these pages in Workshop Manual and mark with "see TB 00-95-02"

Note:
Cylinder heads with cracks between the valve seats or between the valve seat inserts and the spark plug threads can be used without decreasing the service life, provided The cracks do not exceed a maximum of 0.5 mm in width, or when no more Than The first spark plug thread is cracked.
