Exhaust System
Exhaust system components, removing and installingThe illustration shown on pages 26-2 to 26-4 of the Repair Manual is incorrect. Please cross out these pages in the Repair Manual and mark with "see TB 00-95-02"
An additional Oxygen Sensor system (after three-way catalytic converter) will be introduced 08.95 --> and the EGR system will be discontinued.

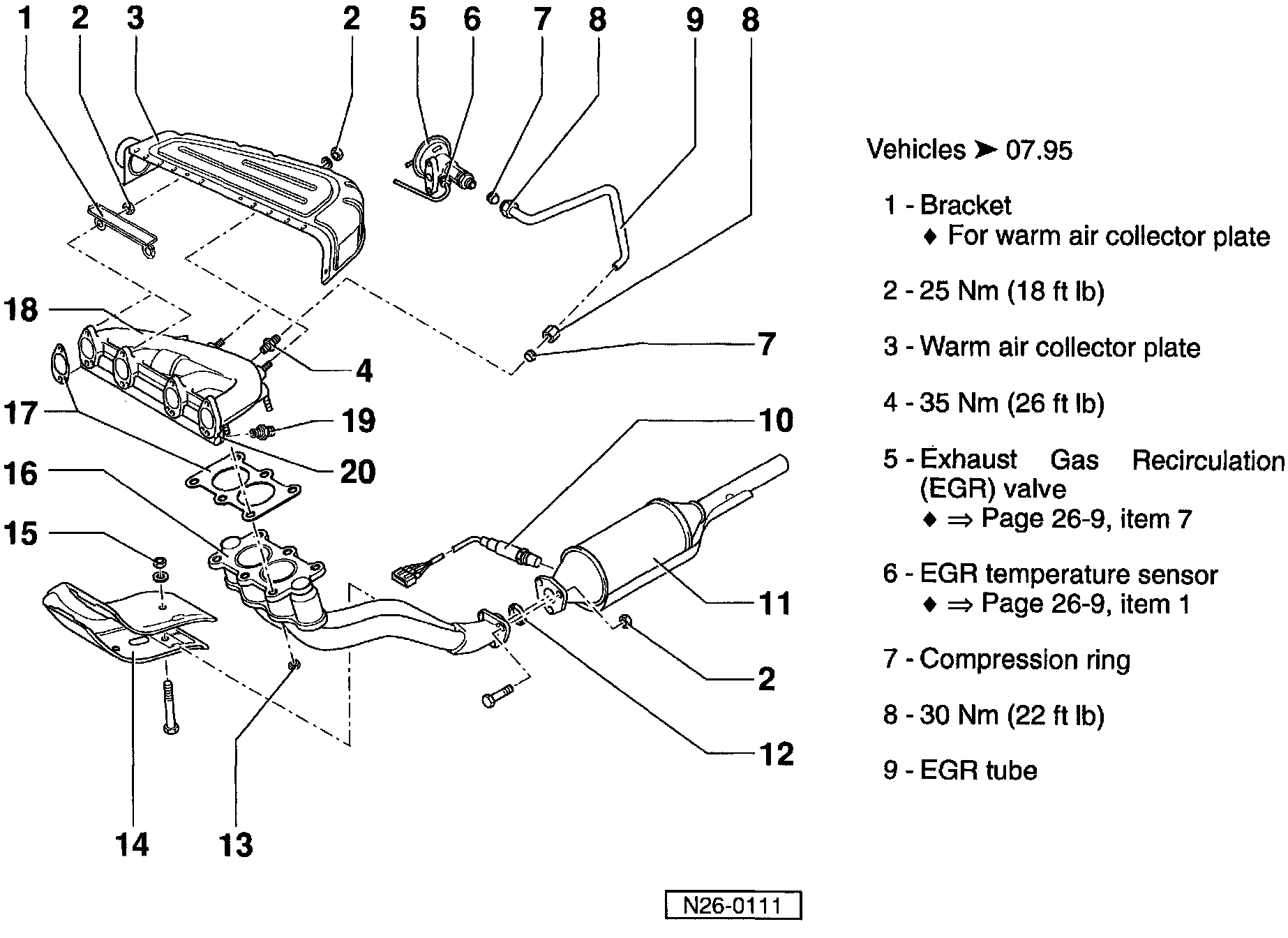

Exhaust manifold, front exhaust pipe and catalyst with attachments for vehicles --> 07.95.

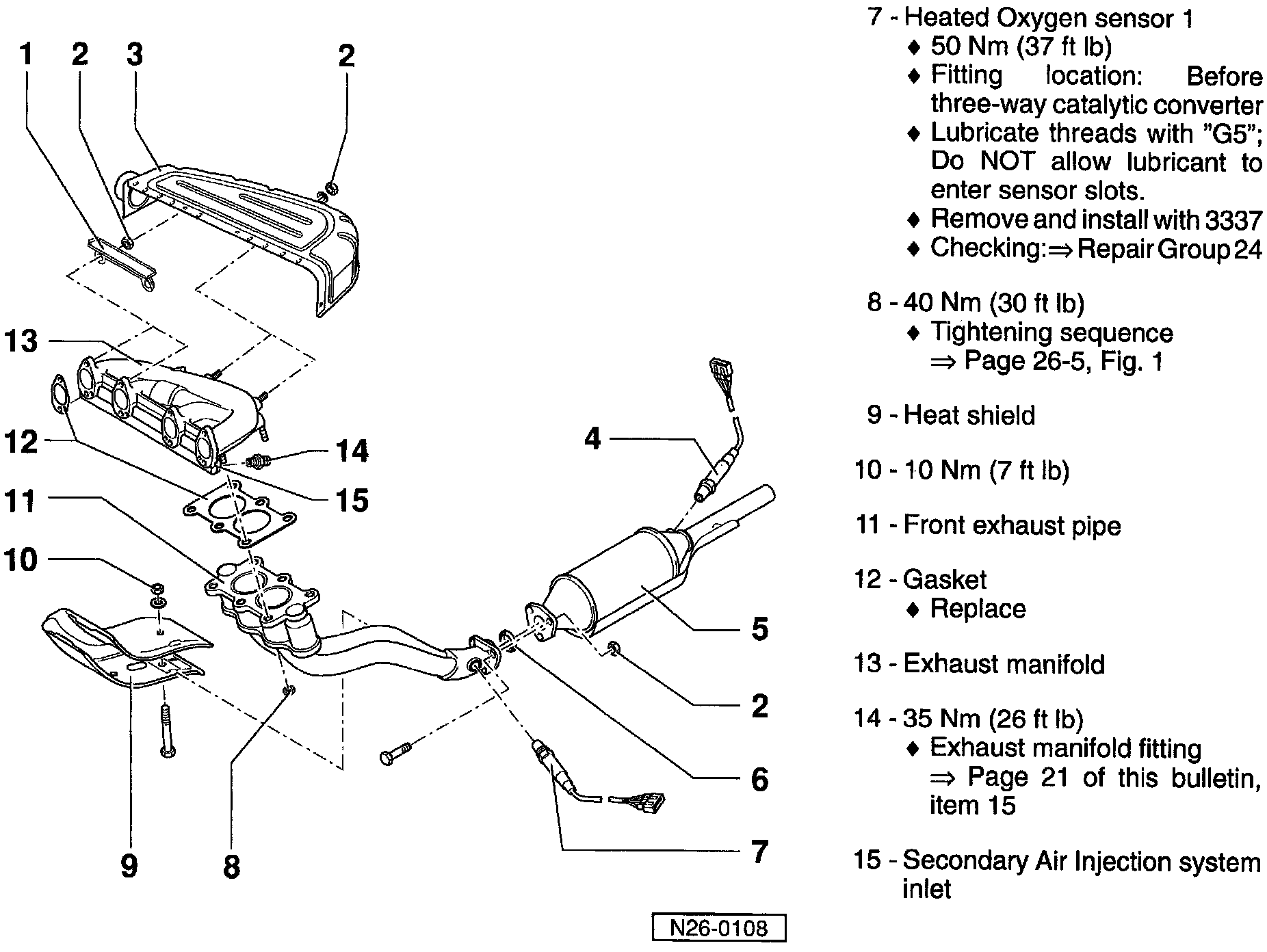

Exhaust manifold, front exhaust pipe and catalyst with attachments for vehicles 08.95 -->.
Checking Secondary Air Injection system on vehicles 08.95 -->.
Exhaust manifold, front exhaust pipe and three way catalytic converter with attachments
Exhaust manifold, front exhaust pipe and three way catalytic converter with attachments
