Upper Intake Manifold, Disassembling and Assembling

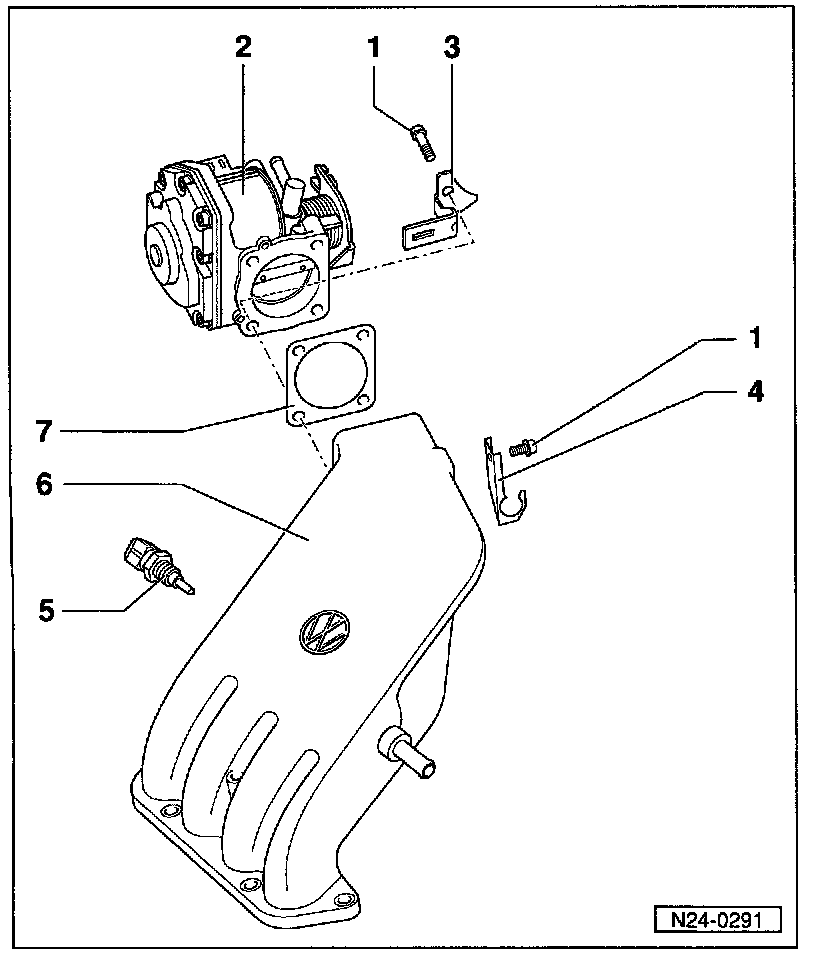

Upper Intake Manifold, Disassembling and Assembling





1 - M6: 10 Nm (7 ft lb)
M8: 20 Nm (15 ft lb)
2 - Throttle valve control module -J338-*
- If replaced, "Basic Setting" function 04 must be initiated. Refer to "On-Board Diagnostics II With VAG 1551". Testing and Inspection
Components of throttle valve control module -J338-:
- Throttle Position (TP) actuator -V60-
- Throttle Position (TP) sensor -G88-
- Throttle Position (TP) sensor -G69-
- Closed Throttle Position (CTP) switch -F60-
3 - Retainer
4 - Support bracket
- For accelerator pedal cable
- Adjusting accelerator pedal cable:
5 - Intake Air Temperature (IAT) sensor -G72- *
- 10 Nm (7 ft lb)
6 - Intake manifold, upper
7 - Gasket
- Always replace
