Rear Engine Plate: Service and Repair

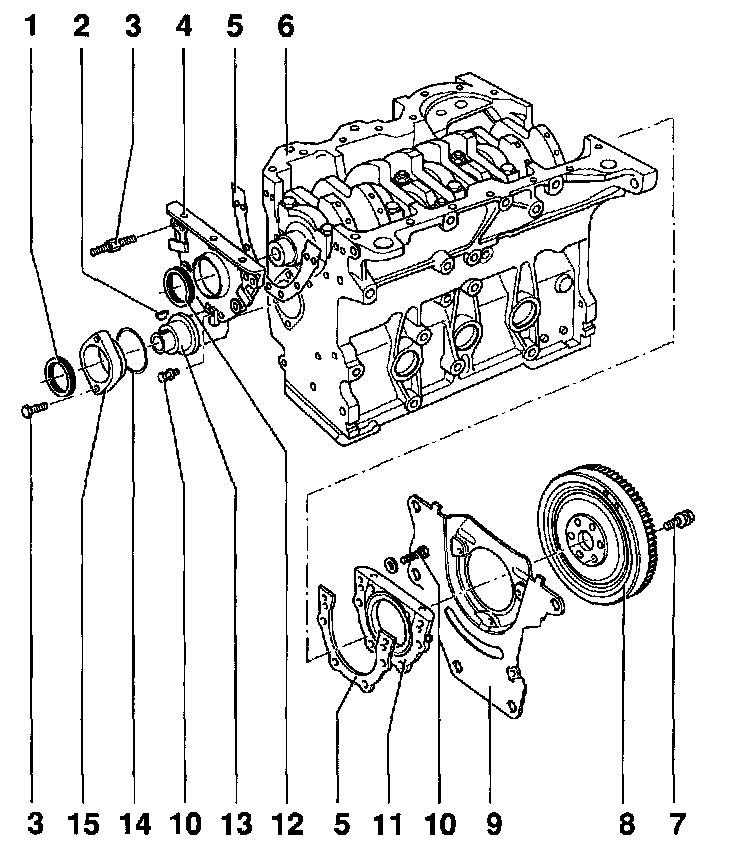

Sealing Flange And Flywheel Or Drive Plate, Removing And Installing





Note:
For clutch repairs - refer to Transmission and Drivetrain

1 - Oil seal
^ Install with 10-203
^ Lightly lubricate sealing lip
^ To remove, remove sealing flange

2 - Woodruff key
^ Check for tight fit

3 - 25 Nm (18 ft lb)

4 - Sealing flange

5 - Gasket
^ Always replace

6 - Cylinder block
^ Removing and installing crankshaft - refer to Crankshaft, Removing and Installing.
^ Disassembling and assembling pistons and connecting rods - refer to Pistons and Connecting Rods, Disassembling and Assembling.

7 - 60 Nm (44 ft lb) plus additional 1/4-turn (90°)
^ Always replace

8 - Flywheel or drive plate
^ Drive plate, removing and installing
^ To remove and install flywheel, counter-hold with tool 3067

9 - Intermediate plate
^ Must fit on guide sleeves
^ Do not bend or otherwise damage during assembly

10 - 10 Nm (7 ft lb)

11 - Sealing flange with oil seal
^ Replace only as complete assembly
^ Lightly lubricate sealing lip

12 - Oil seal
^ Replacing - refer to Crankshaft Oil Seal (pulley end), replacing.

13 - Intermediate shaft
^ First remove ignition distributor
^ Axial clearance max. 0.25 mm (0.0098 in.)

14 - 0-ring
^ Replace if damaged

15 - Intermediate shaft sealing flange
