Anti-Locking Brake System - Revised

Group: 45

Number: 96-01

Date: Mar. 25, 1996

Subject:

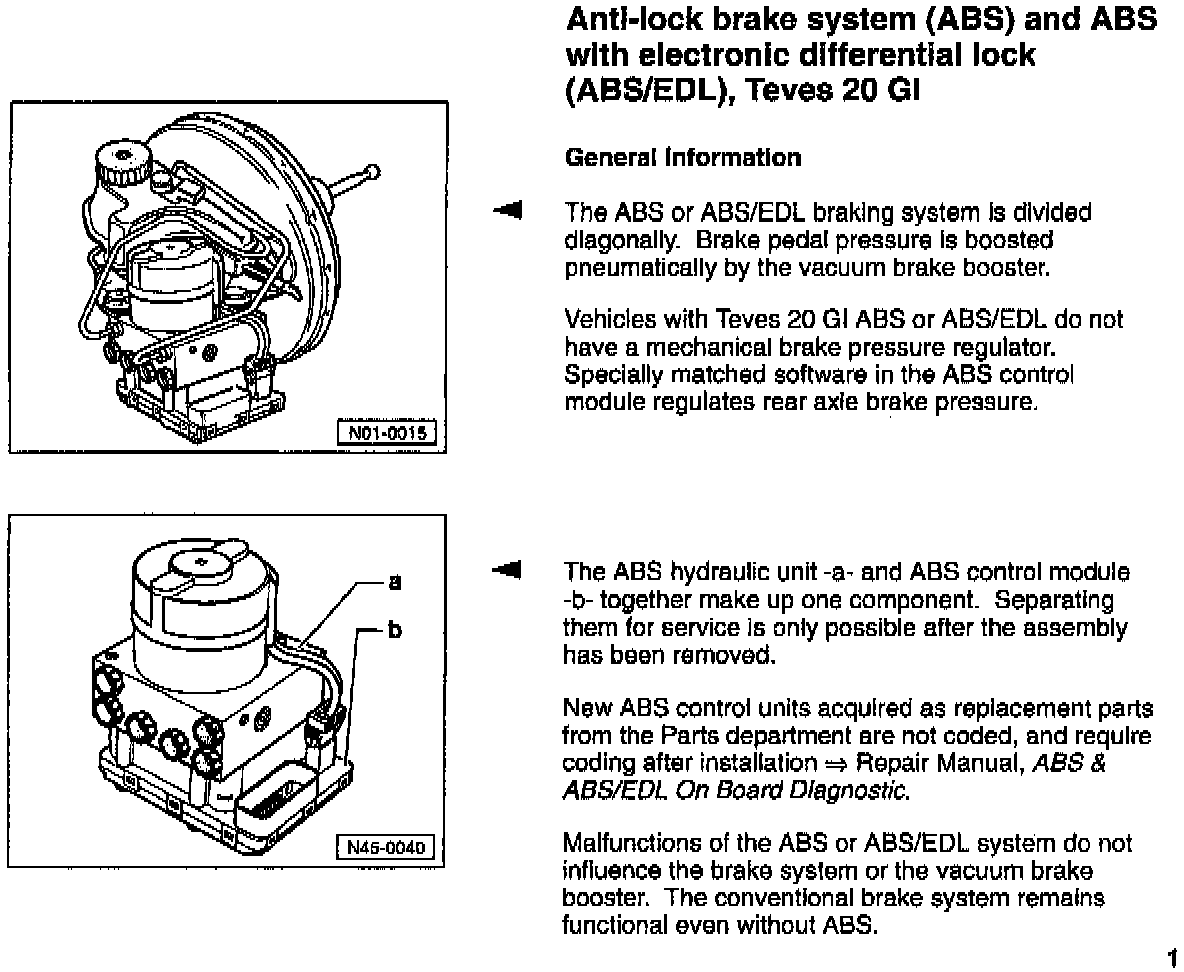

ABS & ABS/EDL Teves 20 GI

Model(s):
Passat 1995 --->

Production

A new anti-locking brake system has been introduced in production, starting in July, 1995.

Service

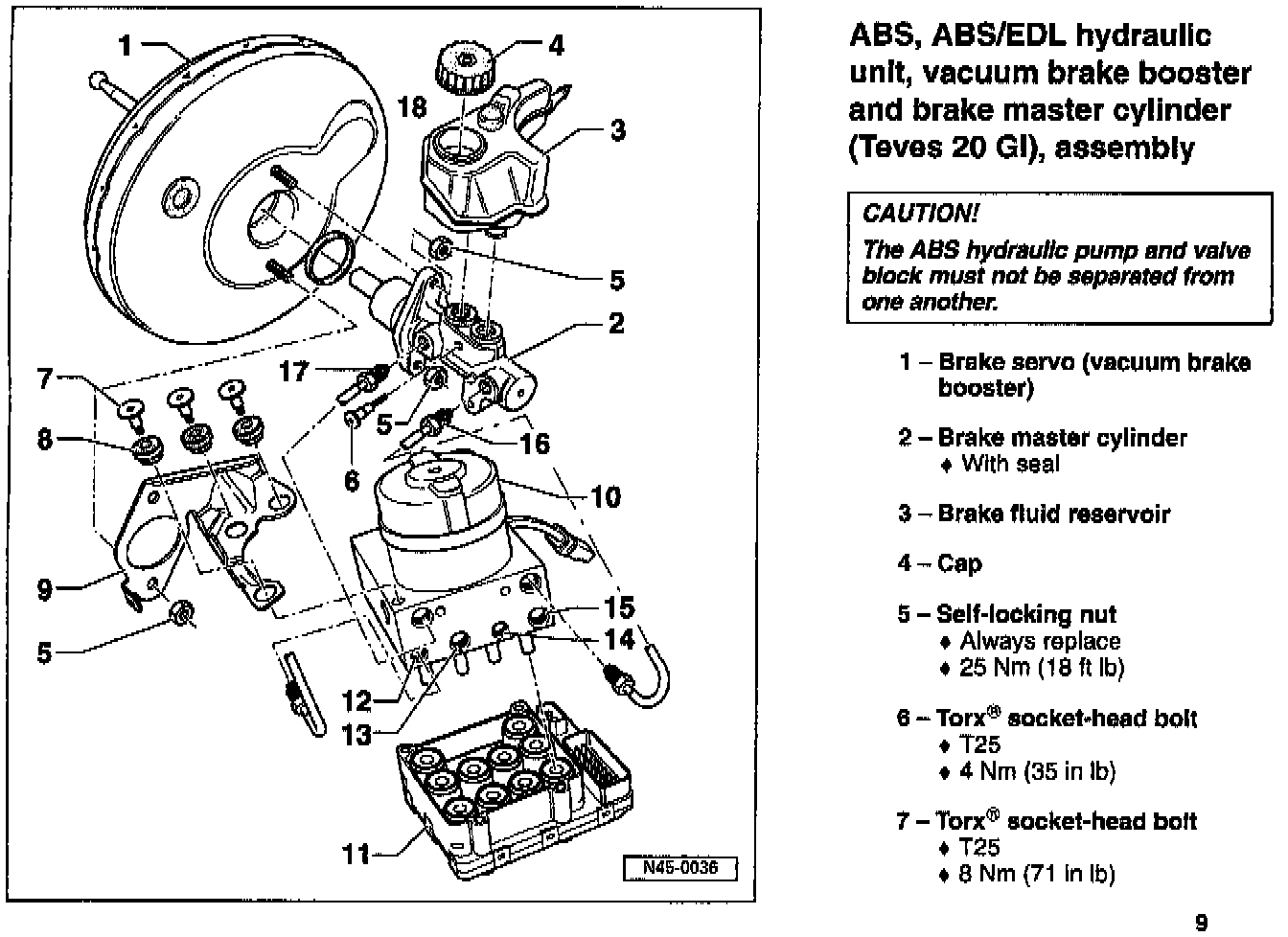

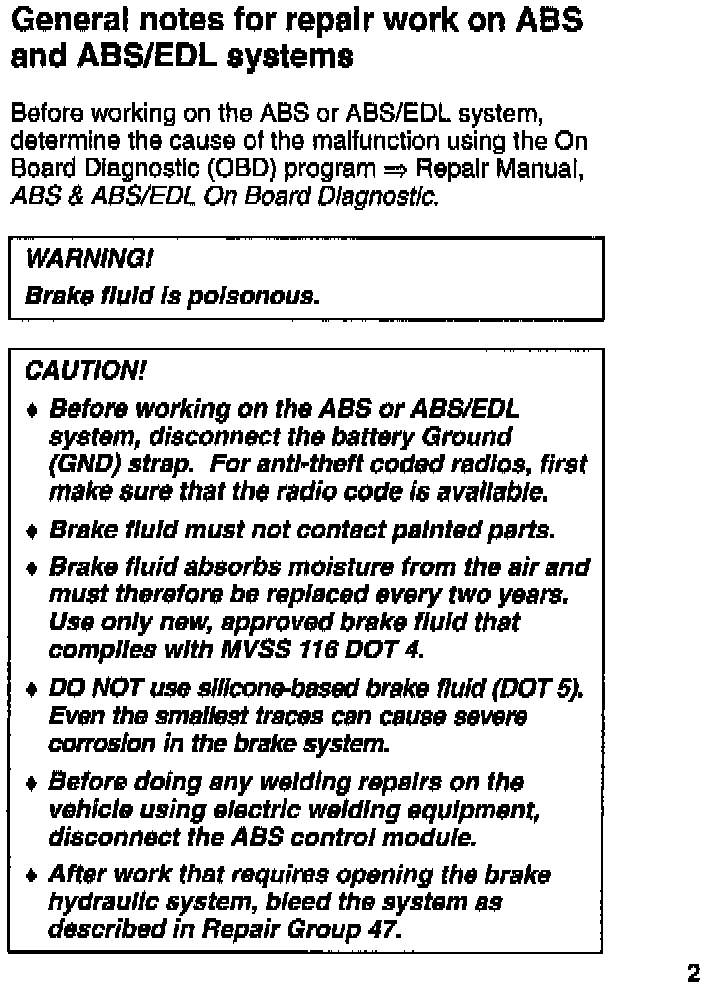

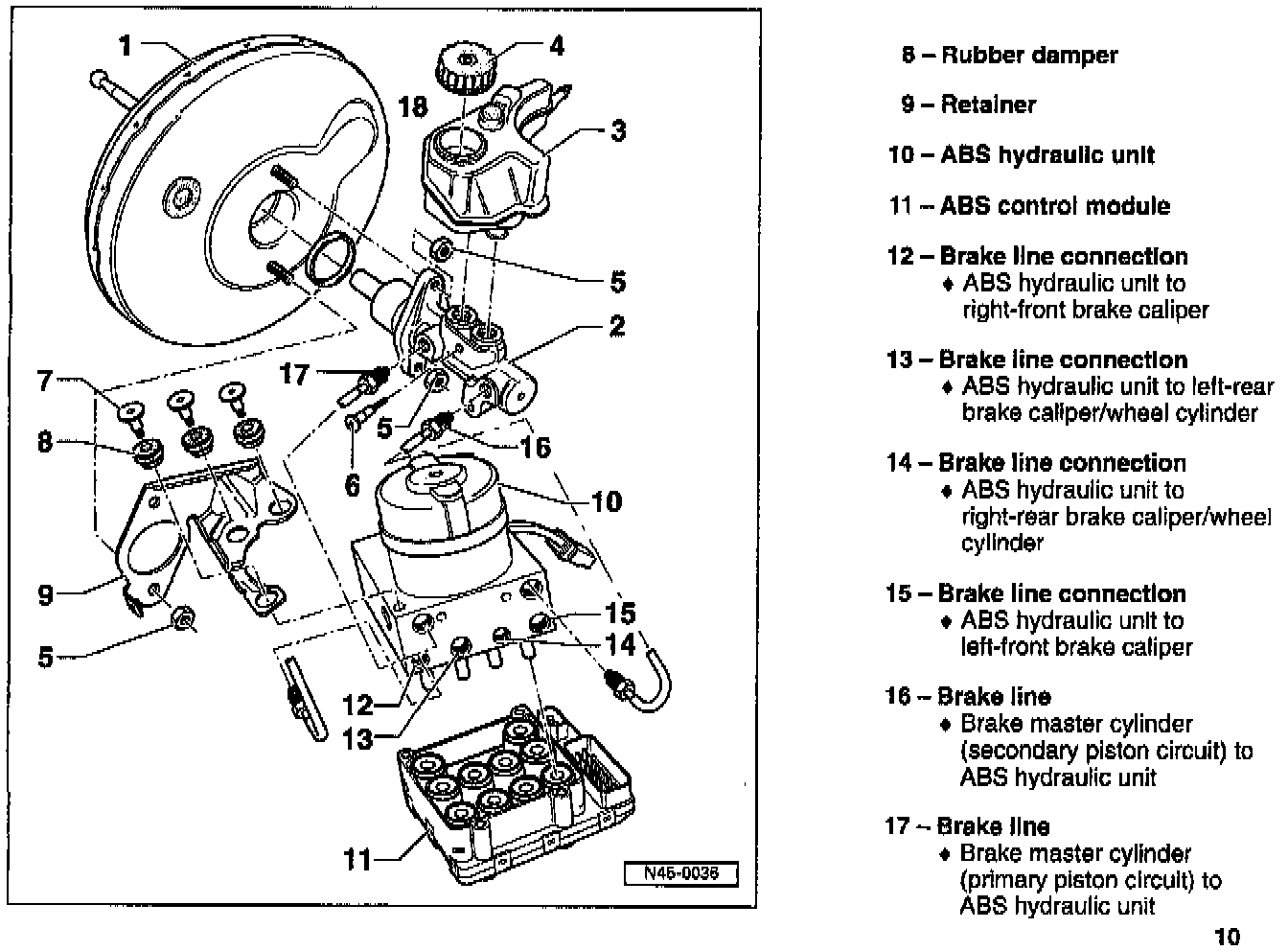

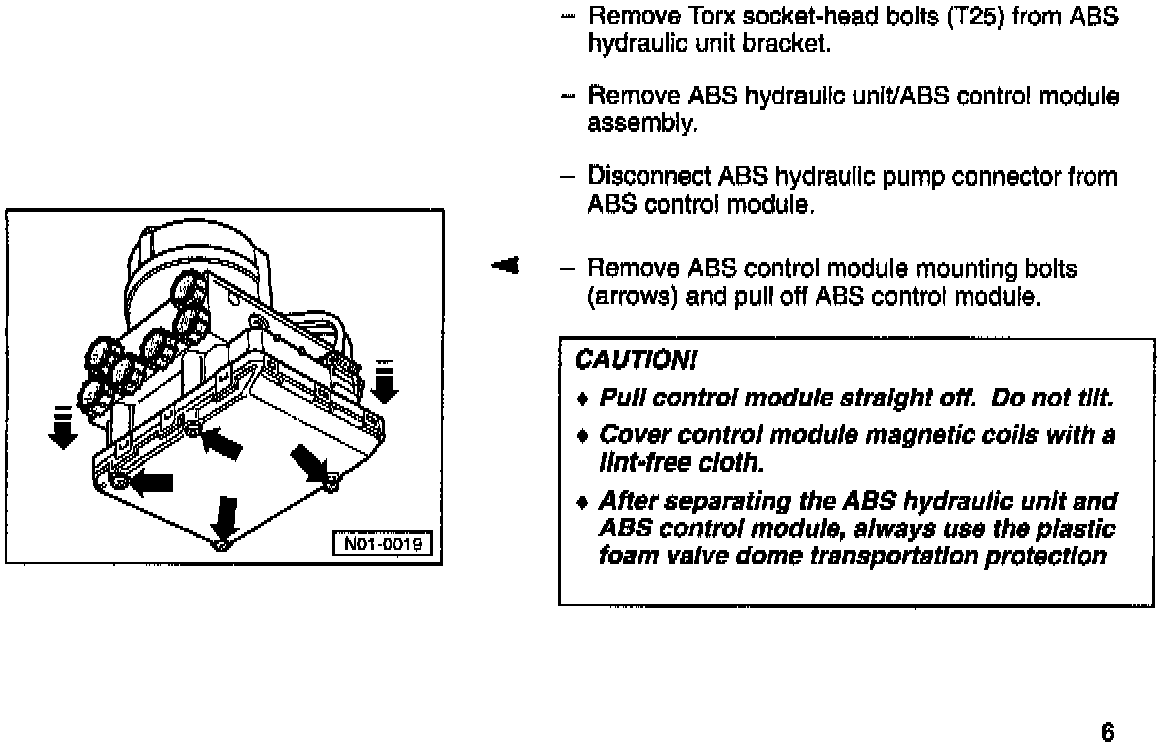

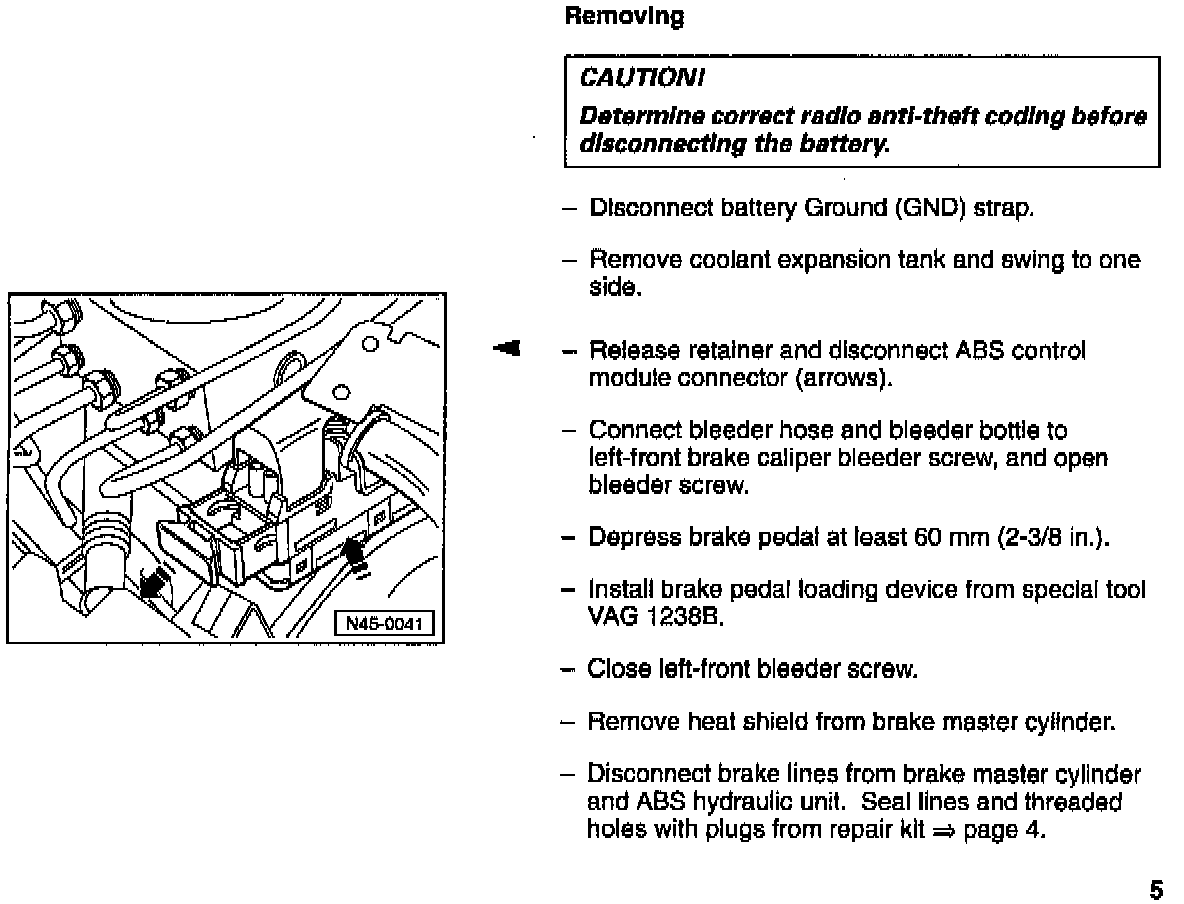

This technical bulletin describes repair work on the Teves 20 GI systems.

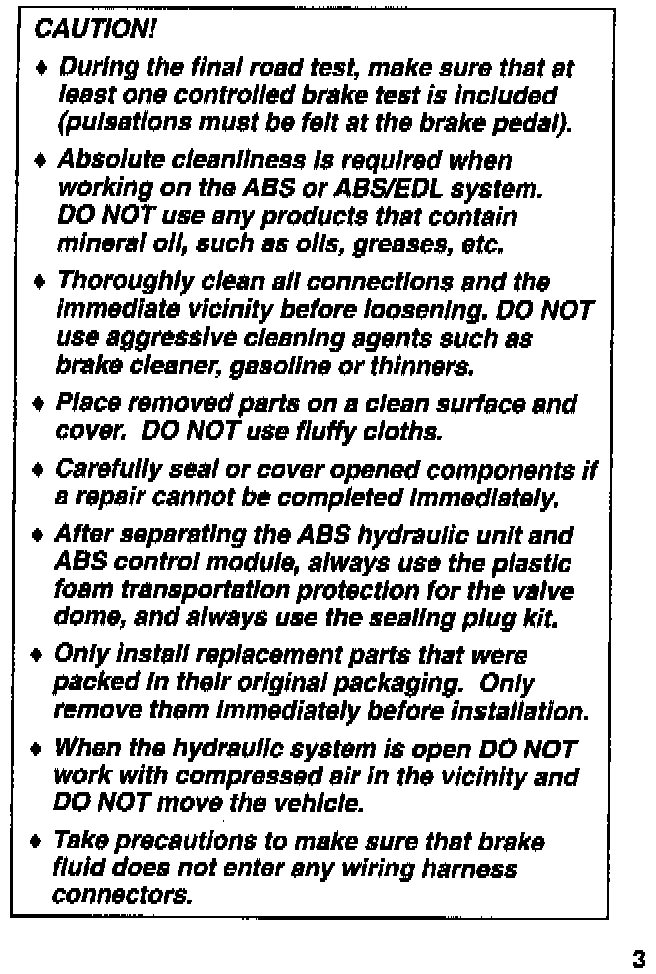

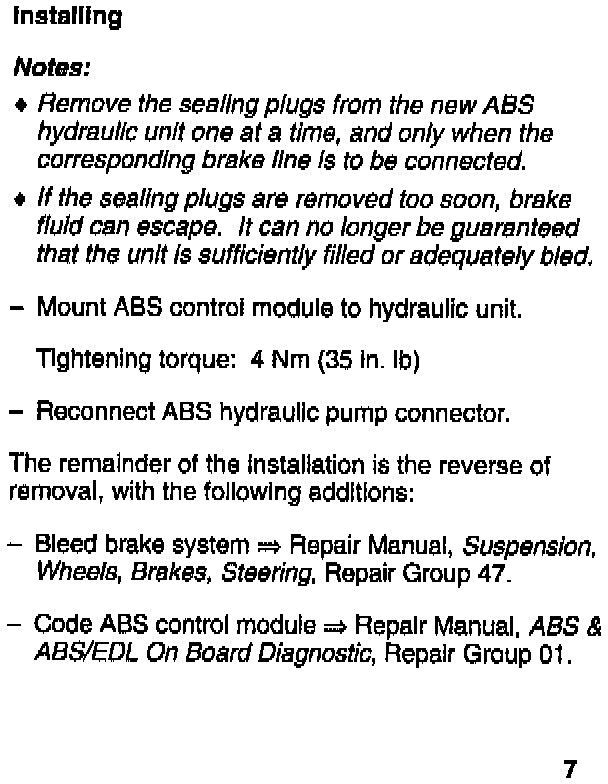

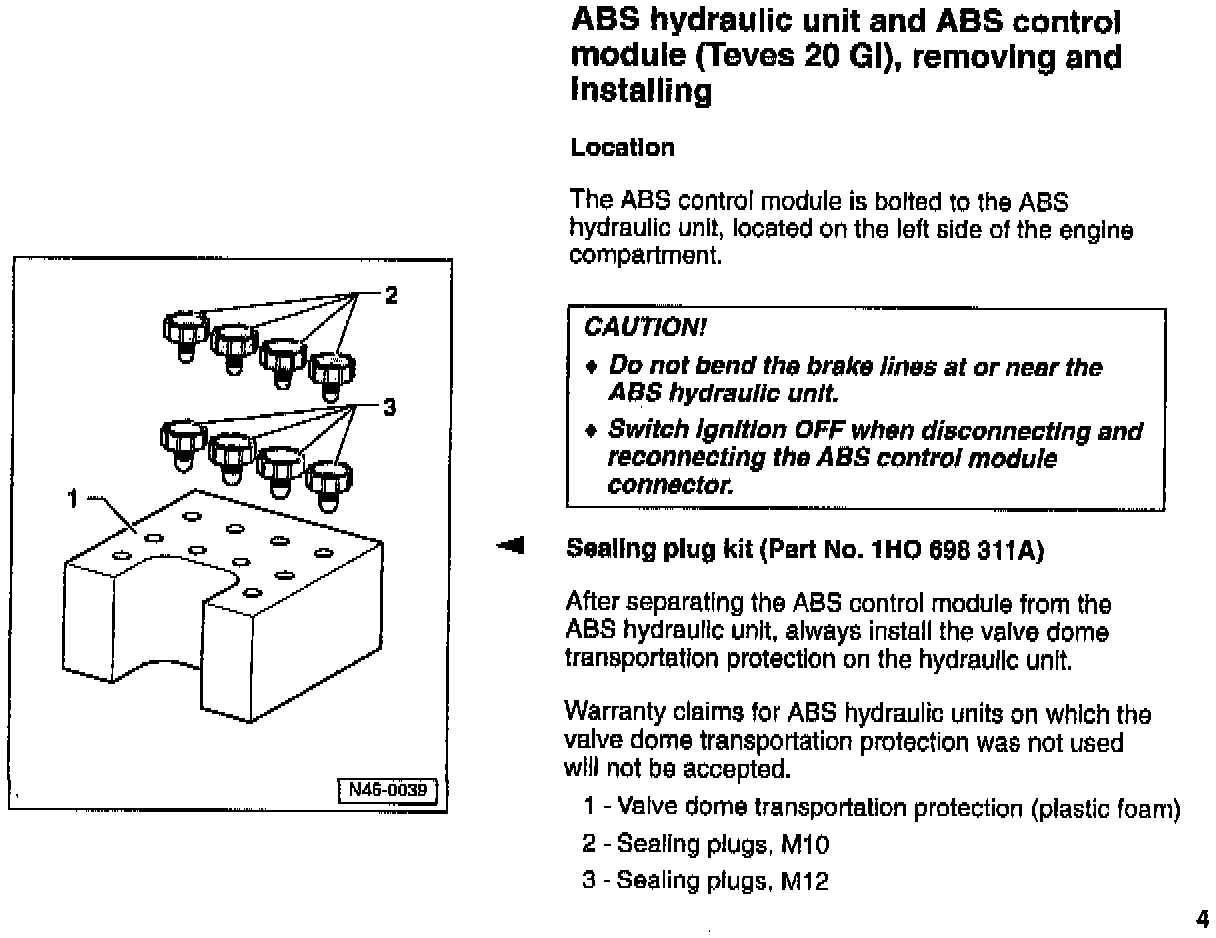

For proper repairs the sealing plug set, Part No. 1H0698311A, is required. Please order this set. It can always be reused, and should be treated as a special tool and stored in clean condition.

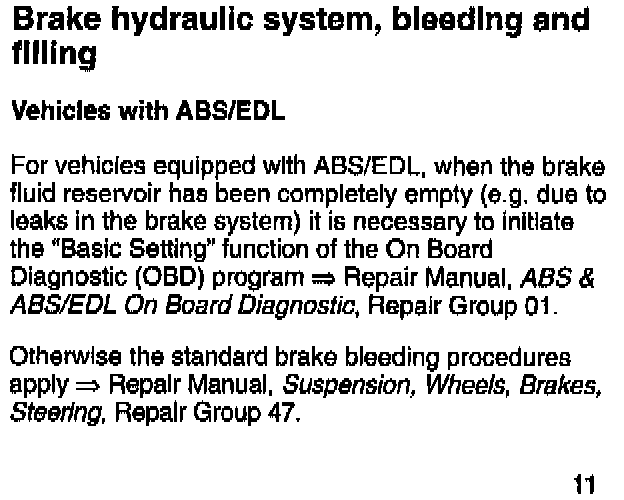

These Repair Manual pages are new and will be integrated with the next Repair Manual update.
