Front Door Weatherstrip: Service and Repair
Door inner seal, removing
Removing inner trim. Refer to Trim Panel Service and Repair

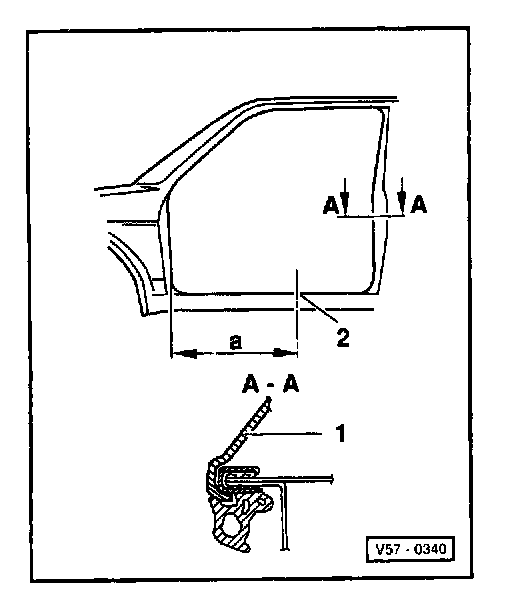

Inner trim 1 secures door inner seal
Joint position 2 below sill panel trim.
Dimension a = 520 ±20 mm (20.47 ±0.79 in.)
Removing inner trim. Refer to Trim Panel Service and Repair
Inner trim 1 secures door inner seal
Joint position 2 below sill panel trim.
Dimension a = 520 ±20 mm (20.47 ±0.79 in.)
