Evaporative Emissions Hose: Locations

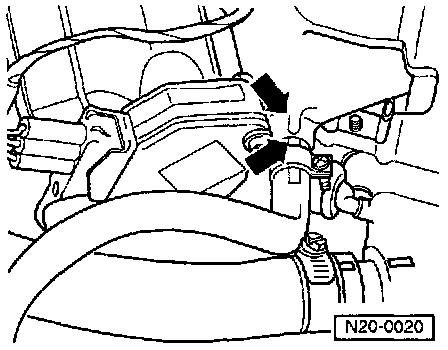

Fig. 1 Installation position of EVAP Canister vent hose on upper intake manifold.

- Marking on vent hose must align with marking on the upper intake manifold -arrows-.


CAUTION!: The vent hose must not come into contact with other components and must be routed over the crankcase breather hose.
