Removal

1. Disconnect the clutch cable from the transmission.
2. Remove the interior trim panel at lower left driver's side.
3. Remove relay panel from bracket.
4. Remove the guard plate from between the relay panel and the pedal cluster.

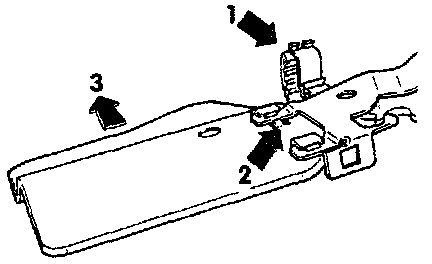

Guard Plate:

5. Remove electrical wires from retainers (arrow 1).
6. Press snap detent (arrow 2) toward pedal cluster.
7. Press guard plate up toward the instrument panel (arrow 3) until it can be removed from its retainers.
8. Remove guard plate from below, working carefully to avoid damage to wiring.
9. Insert screwdriver between steering column and clutch pedal and press it against the over-center spring.

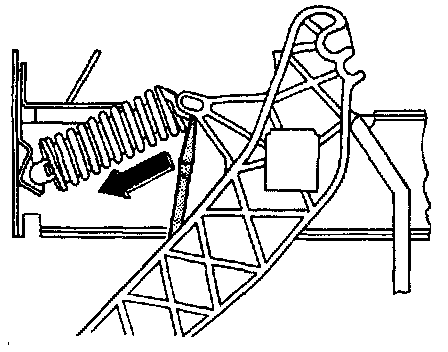

Clutch Pedal:

10. Depress the clutch pedal and disconnect the over-center spring from the pedal in direction indicated by the arrow.
