Windshield Washer Spray Nozzle: Service and Repair

Washer nozzles (from 08.96)





A new design washer nozzle ("fan jet") was installed as running change from 08.96 production. Spray pattern varies as temperatures change.

Fan jet washer nozzles are not adjustable.

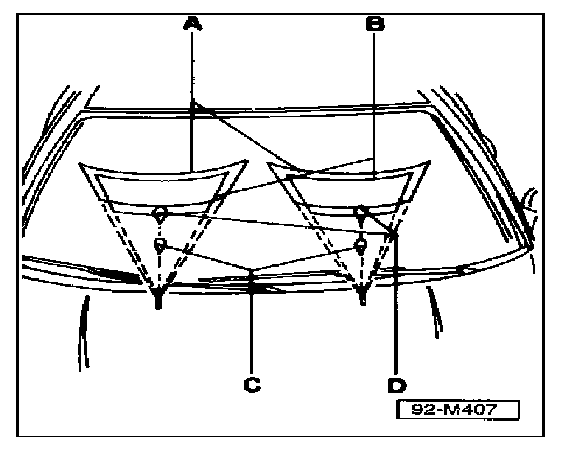

Approximate spray pattern/temperature ranges:

A- -20°- C(68°- F)

B- -0°- C(32°- F)

C- -b°- C(14°- F)

D- -20°- C(4°- F)
