Brake Fluid Level Sensor/Switch: Locations

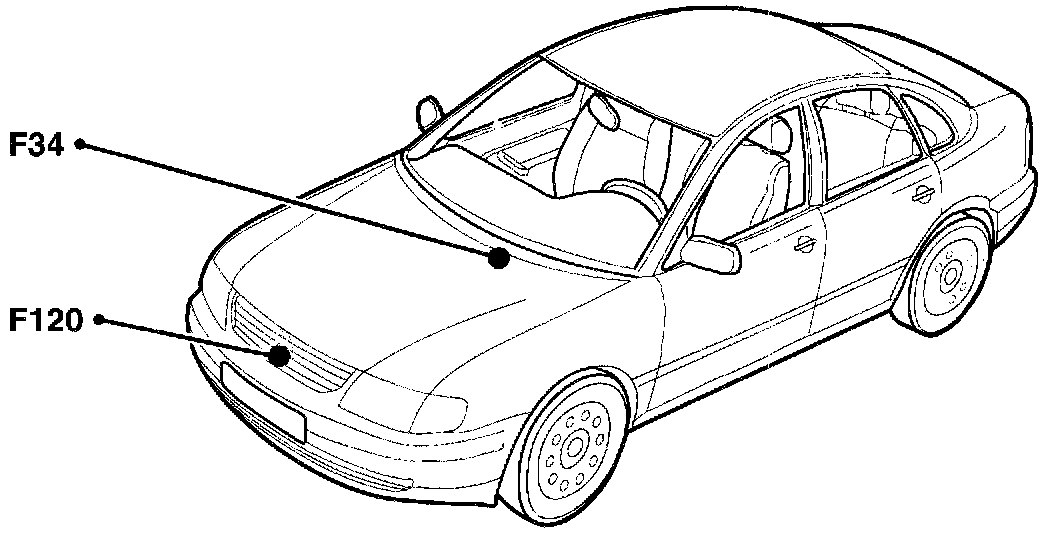

Component Location View: F34, F120:




Component Location View

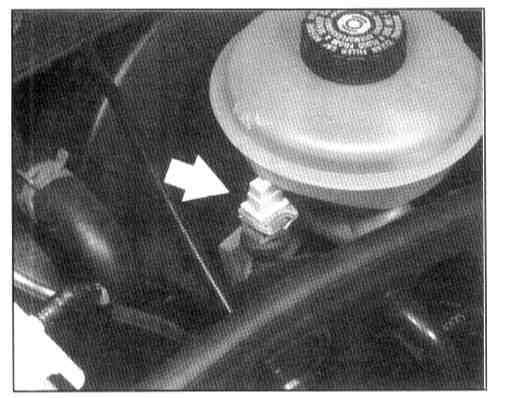

F34 Brake Fluid Level Warning Switch:




Component View

F34 Brake Fluid Level Warning Switch
^ Built into brake master cylinder fluid reservoir in fresh air plenum
