Battery Discharges

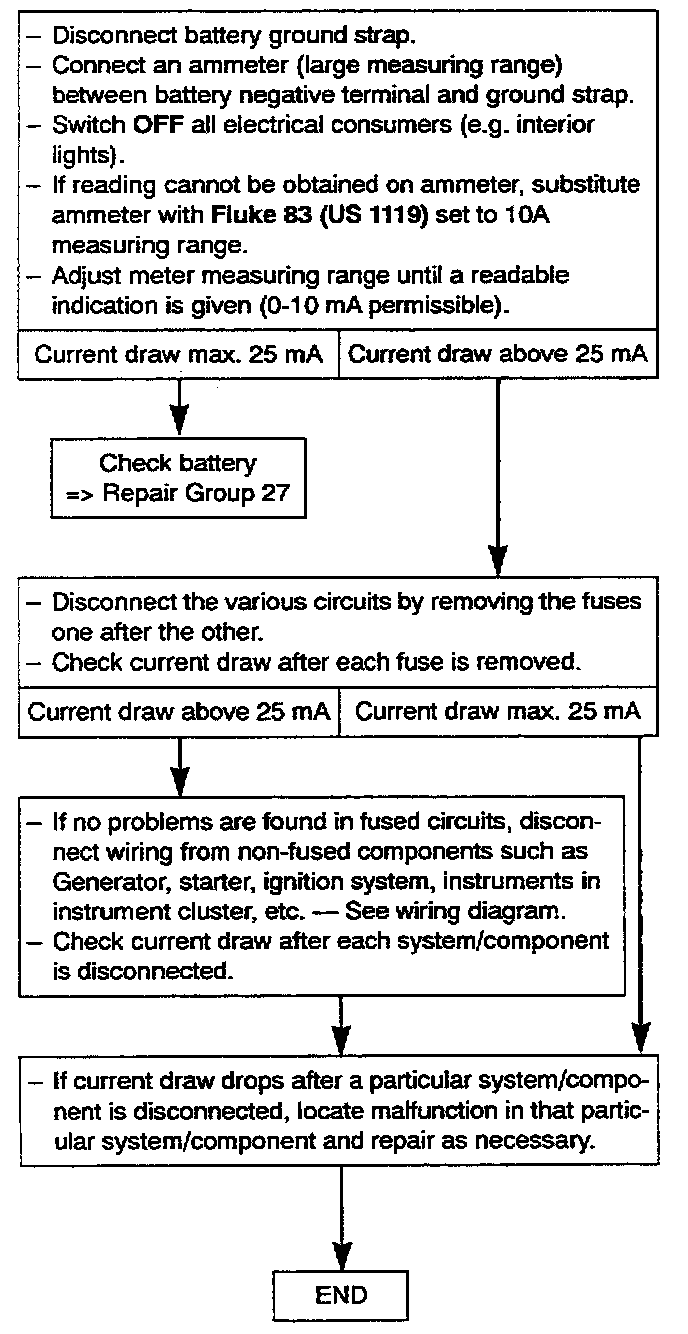

Troubleshooting - Battery Discharges:

(Current Draw Suspected)

Test condition:Battery voltage OK

NOTE:

^ Use ammeter and/or digital multimeter Fluke 83 (US 1119) for all electrical checks.
^ Possible causes of battery drain: Corroded and dirty contacts (connectors), Bare wires (stripped insulation), Internal short circuits in components.
