Accelerator Pedal Linkage, Servicing

Accelerator Pedal Linkage, Servicing

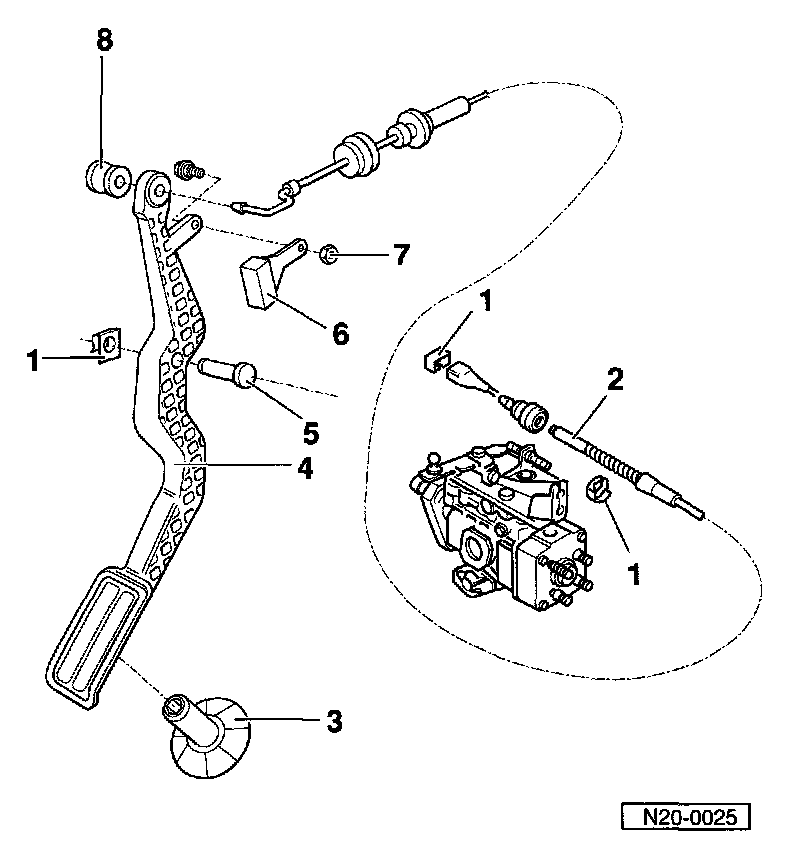

1 - Retaining clip
2 - Accelerator cable
- Adjust by moving position of securing clip (retainer) on outer cable grooves
See Fig. 1 below
3 - Accelerator pedal stop
4 - Accelerator pedal
5 - Pivot pin
6 - Balance weight
7 - 10 Nm (7 ft lb)
8 - Rubber bushing

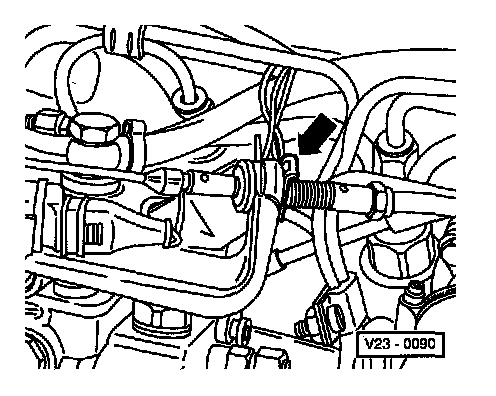

Fig. 1 Accelerator cable, adjusting
With the accelerator cable in the Wide Open Throttle position, adjust cable by positioning the securing clip-arrow-in the outer cable grooves, so the injection pump lever just contacts the stop and is not subjected to any stresses.
