With Air Conditioning

Series Resistor -N24-, Replacing:




- Remove shell on passenger side
- Remove glove box.

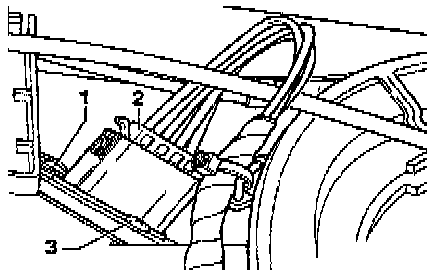

- Pull off connector -2- and remove screws -3-
- Seal surface between series resistor -1- and air duct before installing with AMV 176 000 05.
