Home >> Volkswagen >> 1994 >> Golf III (1H1) L4-2.0L (ABA) >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Fuel Pressure Test Port >> Locations

Fuel Pressure Test Port: Locations

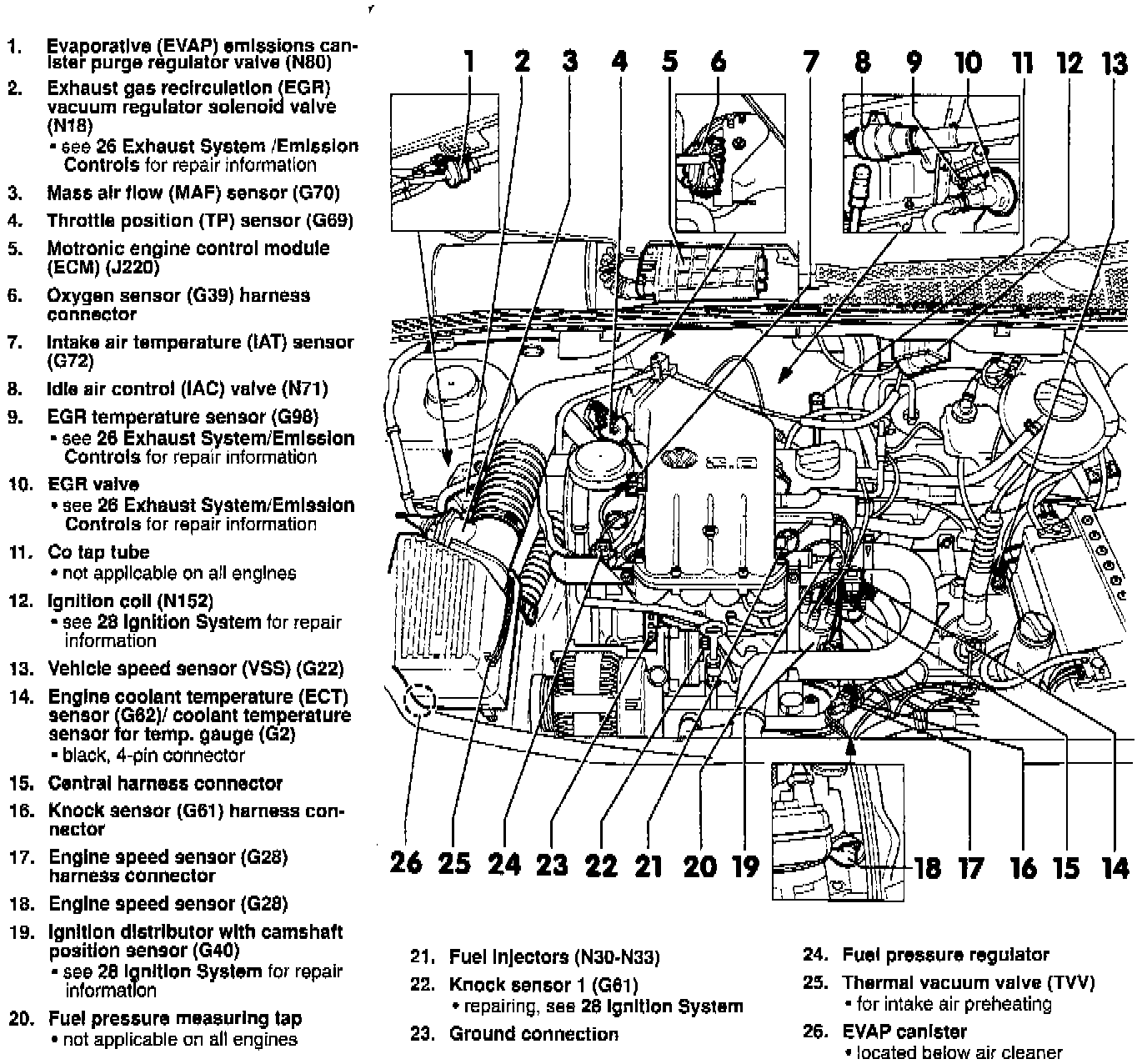

Motronic Component Locations:

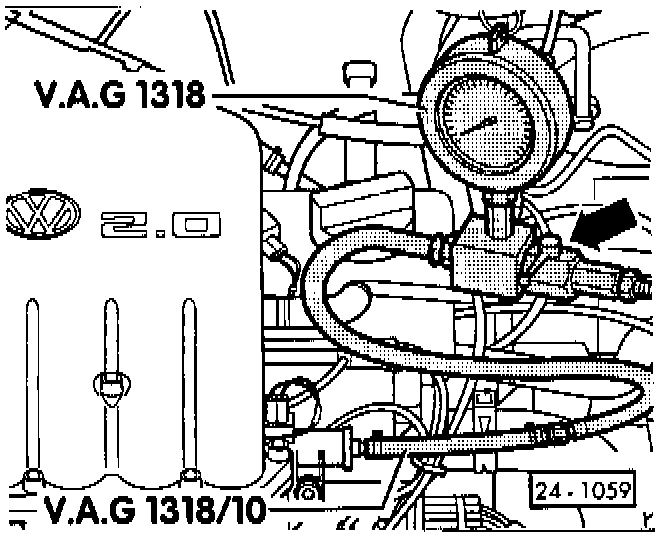

Fuel Pressure Test Port Location:
