Intake Air System

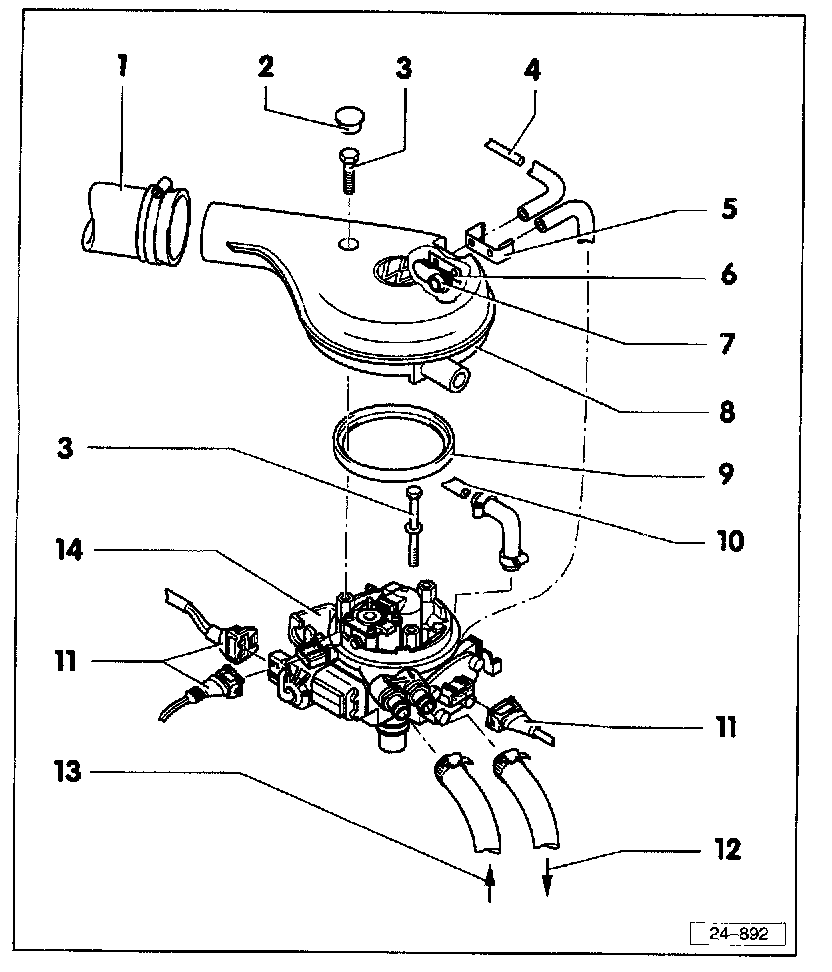

Intake Air System, component layout





1 - Intake Air hose
^ To Air Cleaner (ACL)
2 - Cap
3 - 10 Nm (7 ft lb)
4 - To vacuum unit in Air Cleaner (ACL)
5 - Retainer
6 - Gasket
7 - Temperature regulator
^ For Intake Air pre-heating
8 - Adapter housing between Intake Air hose and Throttle Body
9 - Seal
10 - To Evaporative Emission (EVAP) Canister Purge Regulator Valve (N80)
11 - Connector
12 - Return line
13 - Supply line
14 - Throttle Body
^ Disassembling/assembling upper section. Throttle Body, Upper Section
^ Disassembling/assembling lower section. Throttle Body, Lower Section
