Related Tests, Information and Procedures

Diagnostic Trouble Code (DTC) tables

^ Before replacing a suspected faulty component, check all appropriate wiring, connections, harness connectors and Ground (GND) connections according to the wiring diagram.

Note: Checking wiring and connections is especially important if the malfunction is sporadic.

^ Certain Diagnostic Trouble Codes (DTC) and blink codes appear (in "Rapid data transfer" operating mode) only in the print-out.

Example:
DTC Blink code
5-digit 4-digit
65535 1111

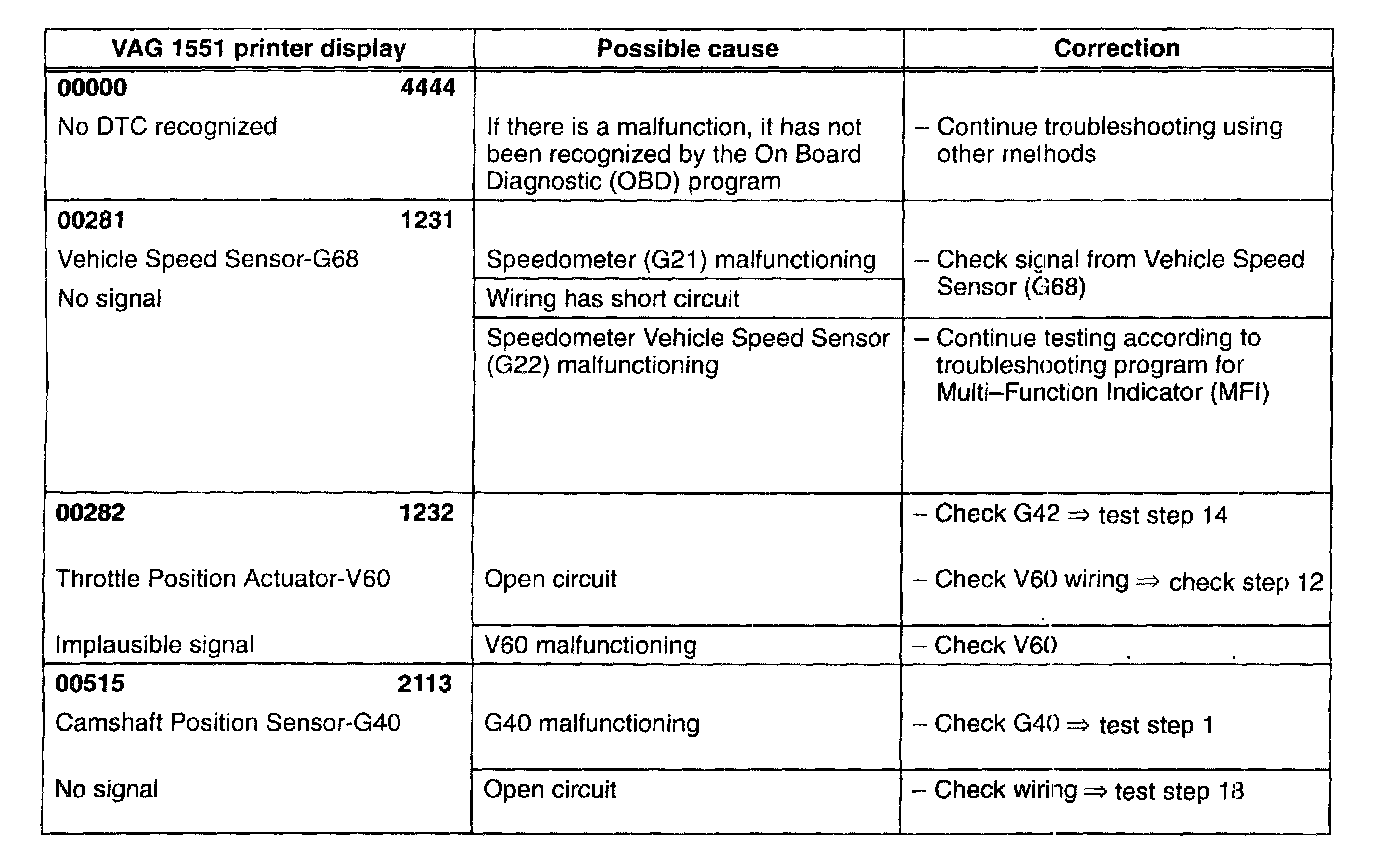

00000, 00281, 00282, 00515:

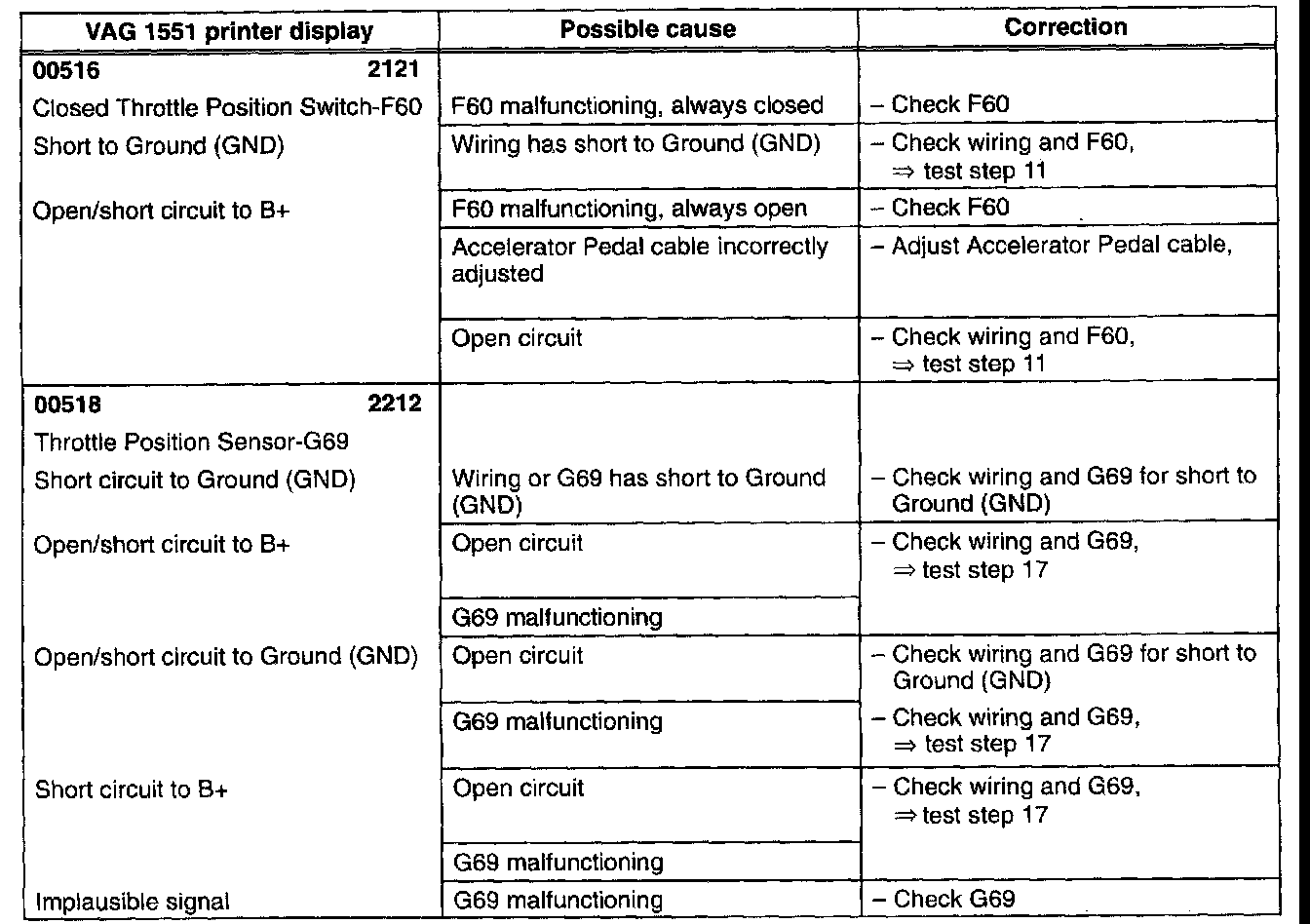

00516, 00518:

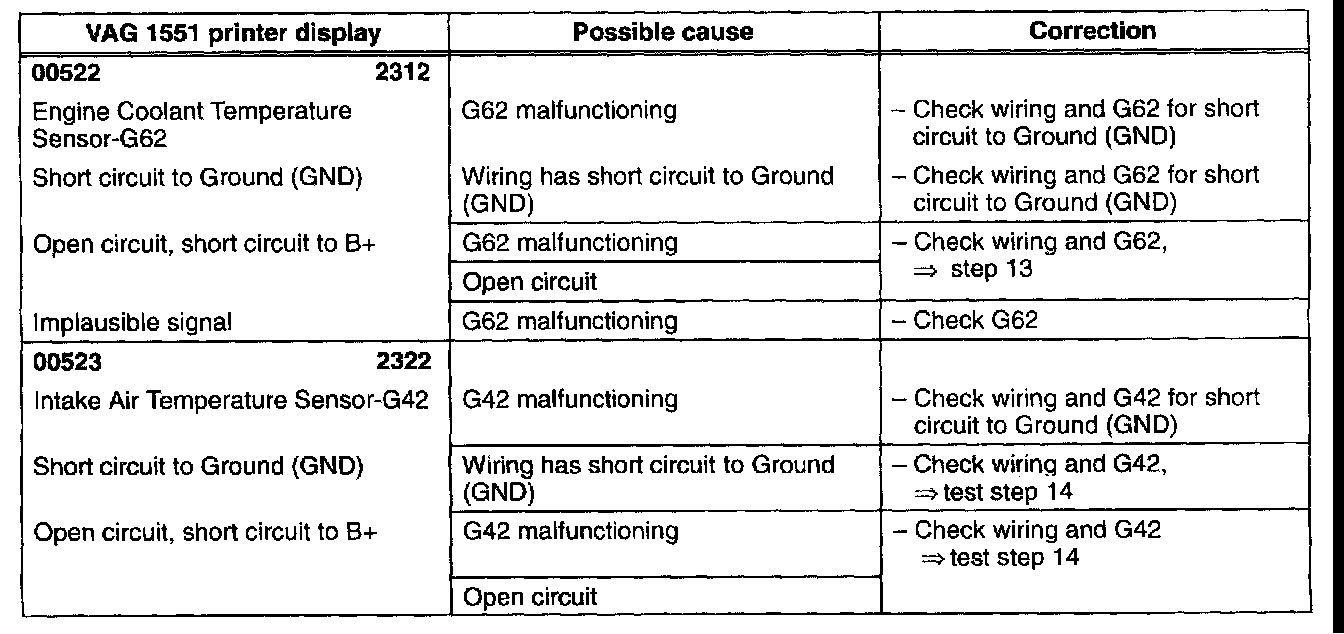

00522, 00523:

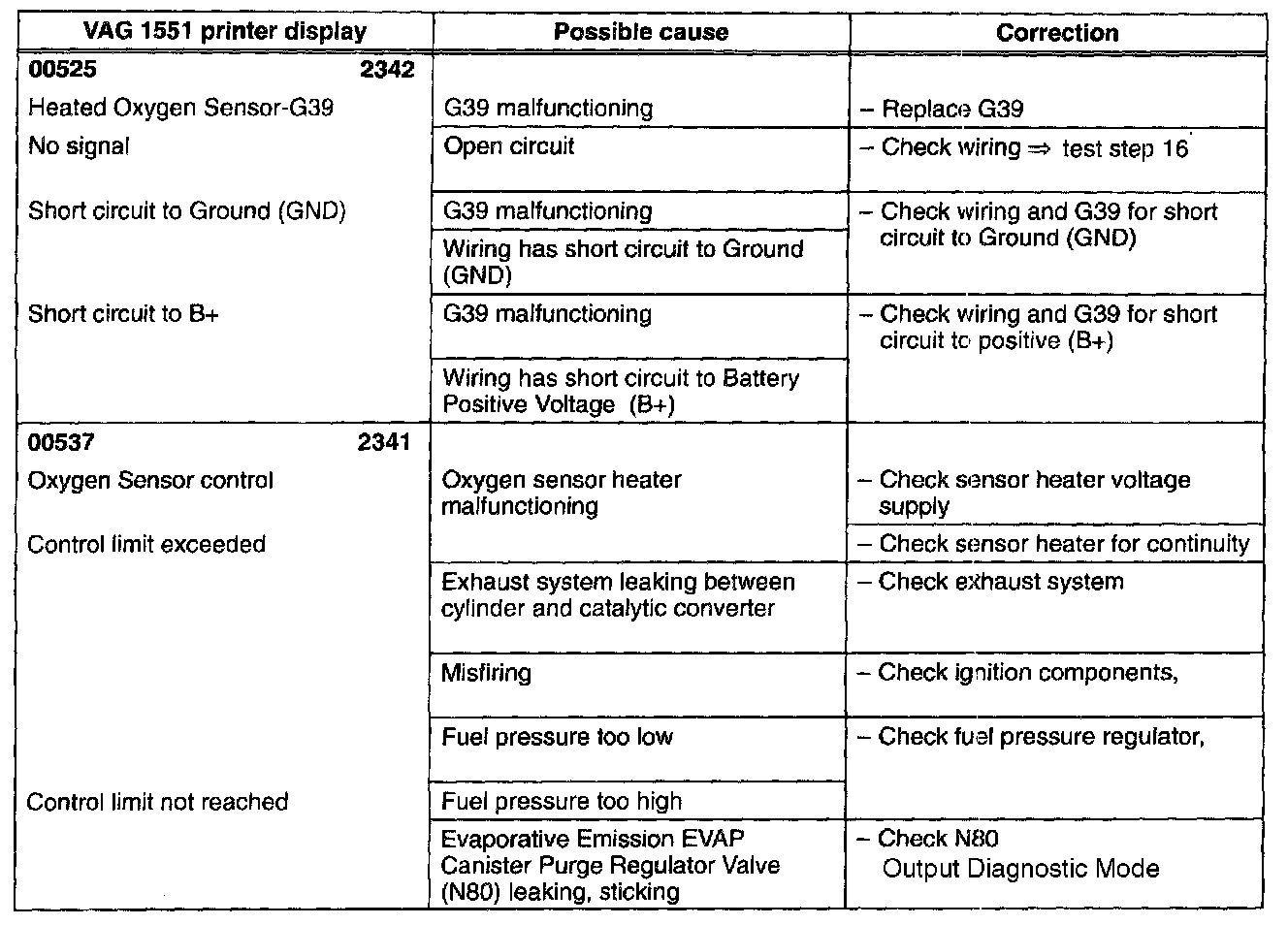

00525, 00537:

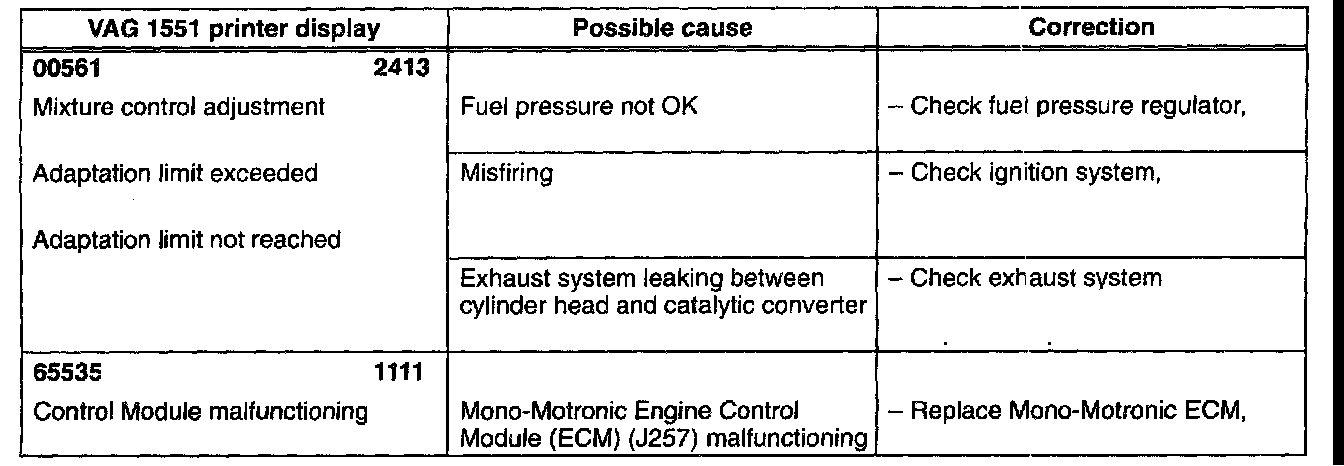

00561, 65535:
