On Board Diagnostic Troubleshooting Guide - Corrections
Group: 01Number: 93-08
Date: December 31, 1993
Subject:
On Board Diagnostic Troubleshooting Guide, corrections
Model(s):
GTI, Jetta GLI (Engine code 9A) 1990-1992 m.y.
Passat (Engine code 9A) 1990-1993 m.y.
This Technical Bulletin contains two corrected pages for the Volkswagen On Board Diagnostic Troubleshooting Guide, Volumes I and II.
An incorrect Differential fuel pressure regulator adaptive value is currently shown and has been corrected.
Volume I

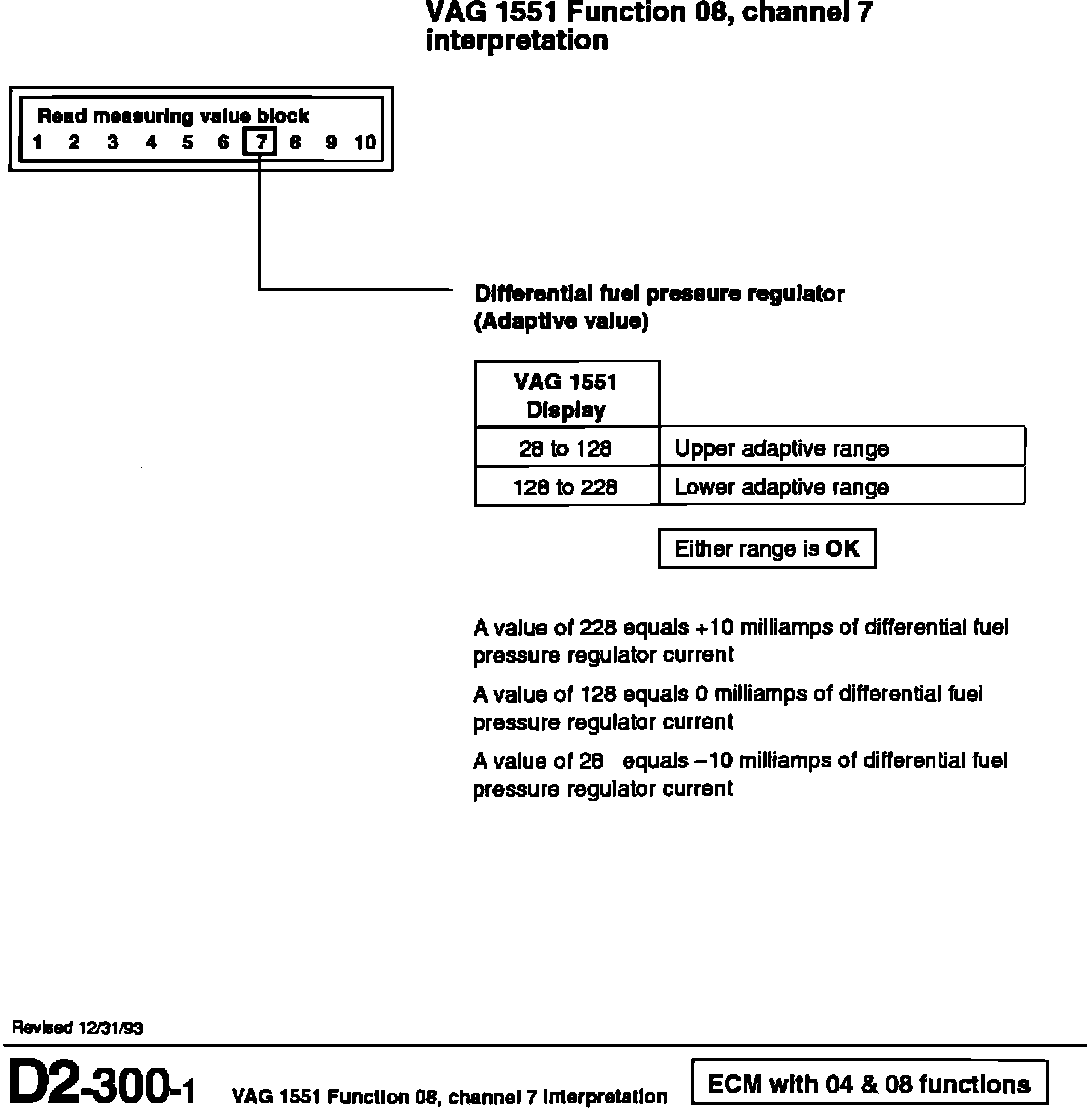

Remove page D2-290-1/D2-300-1 from behind the "Jetta/Golf/GTI D2 Fuel and Ignition" divider tab and replace with the corrected page D2-290-1/D2-300-1.
Volume II

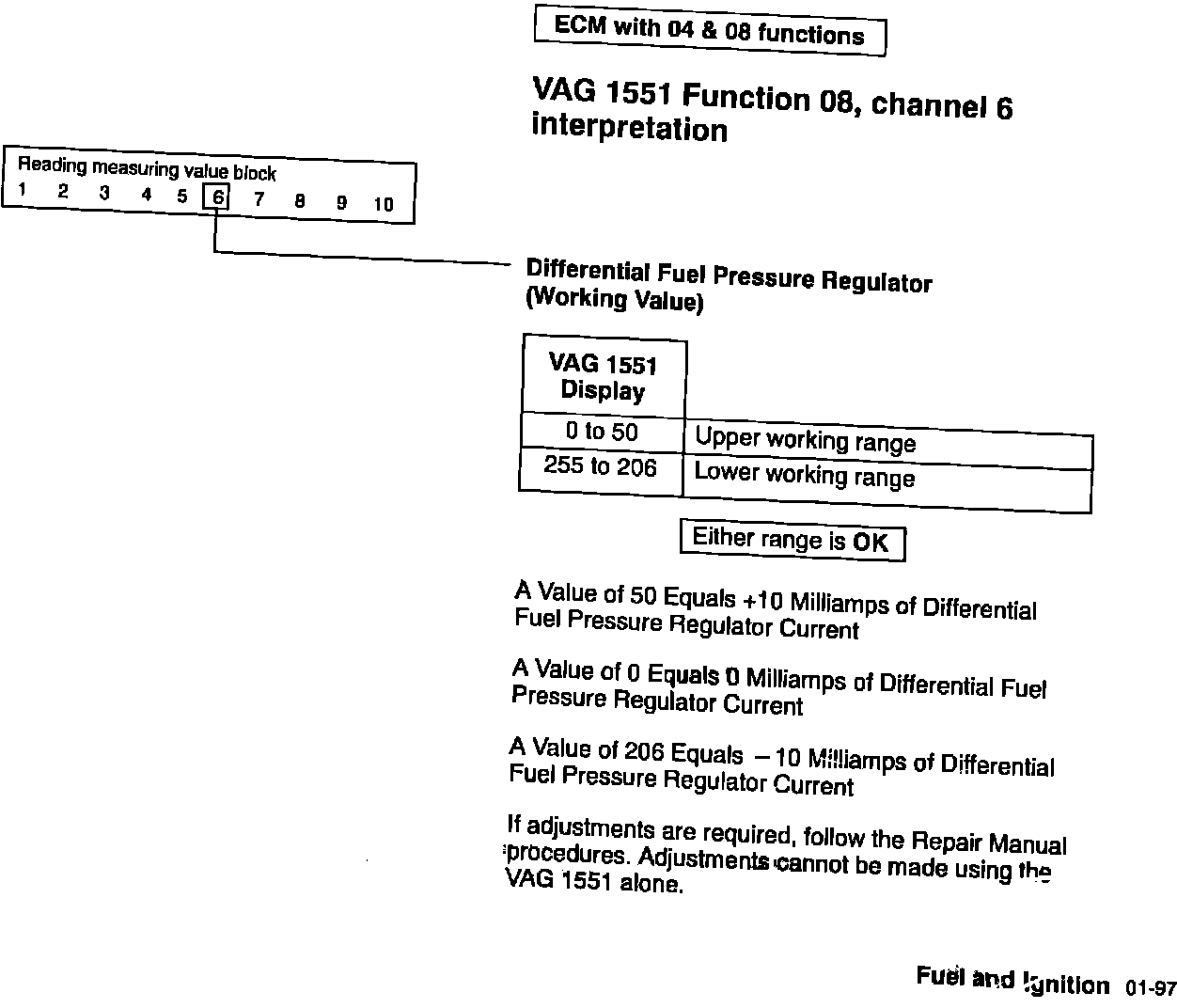

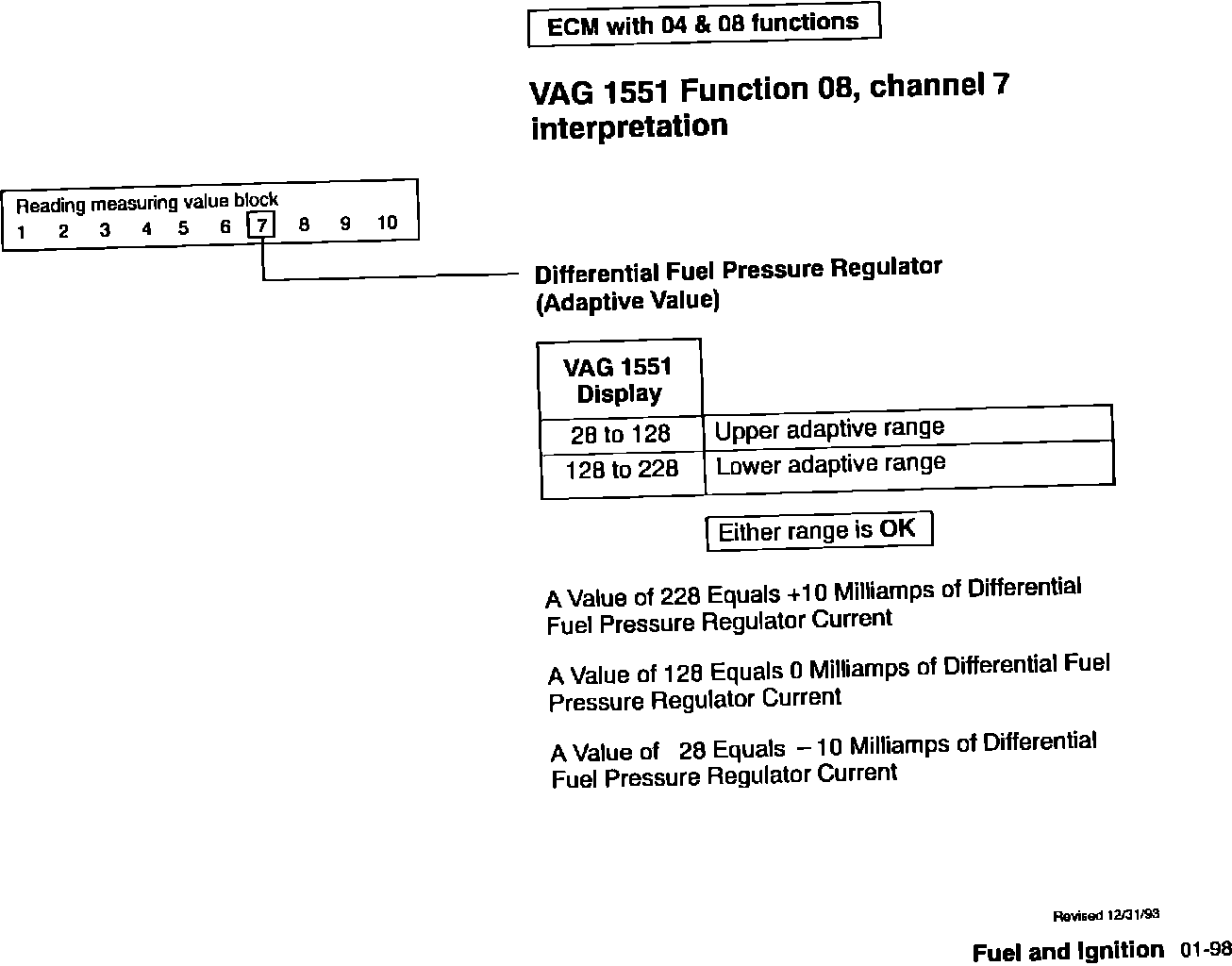

Remove page 01-97/01-98 from behind the "Passat 01 Fuel and Ignition" divider tab and replace with the corrected page 01-97/01-98.
Please note
the corrected pages are identified with the date 12/31/93.
