With Air Conditioning

Cables, installing and adjusting







Note:
- First attach cables to removed controls and then adjust air conditioner levers and secure.
- Ends of sleeves on cables which are marked with color stripes must be secured to the controls.
- Position sleeves of cables to controls and then secure.
- After you installed the controls, adjust cables at the levers for the flaps.
- When you turn the knobs to their stops, you must be able to hear all flaps close.

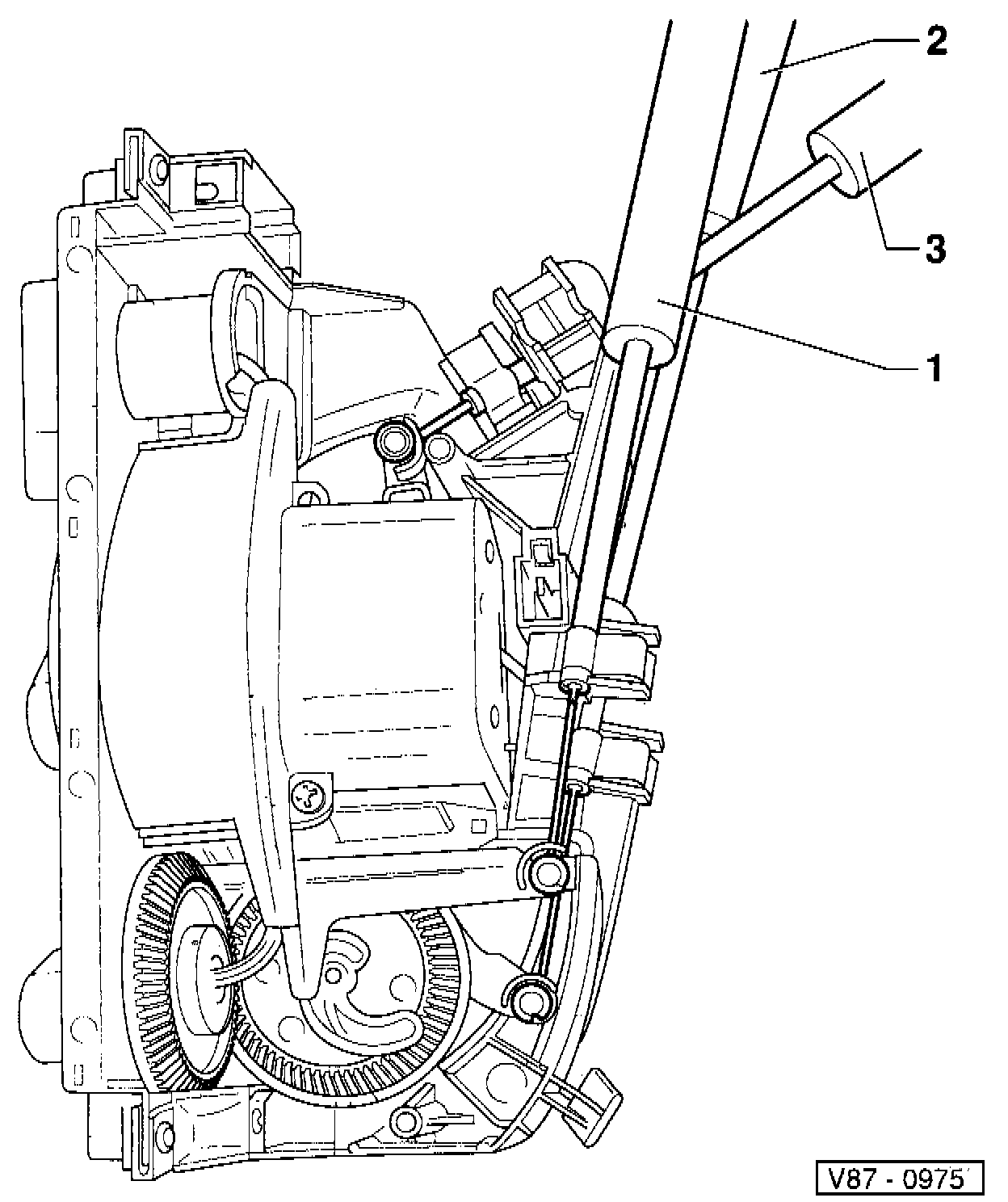

1 - Cable for footwell and defrost
- From air distribution control knob to footwell and defrost flap
- Black sleeve, length 954 mm (3.75 in.)
- Cable for footwell and defrost flap, adjusting ~ Fig. 1
2 - Cable for center flap
- From air distribution control knob to center flap
- Black sleeve, length 634 mm (2.5 in.)
- Cable for center flap, adjusting ~ Fig. 2
3 - Cable for temperature flap
- From temperature control knob to temperature flap
- Blue sleeve, length 535 mm (2.1 in.)
- Cable for temperature flap, adjusting ~ Fig. 3

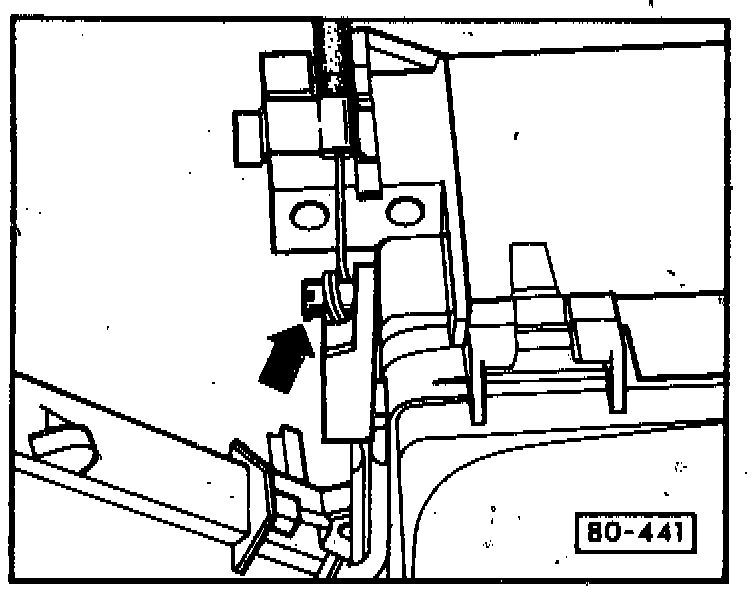

Fig. 1 - Footwell/defroster flap cable, adjusting

- install A/C (ventilation) control head
- adjust air distribution control knob to "DEFROST" position (against stop)
- connect footwell/defroster flap cable (black sleeve) to footwell/defroster flap lever
- push lever in direction of -arrow- to stop
- hold lever in this position and secure cable with cable retaining clip

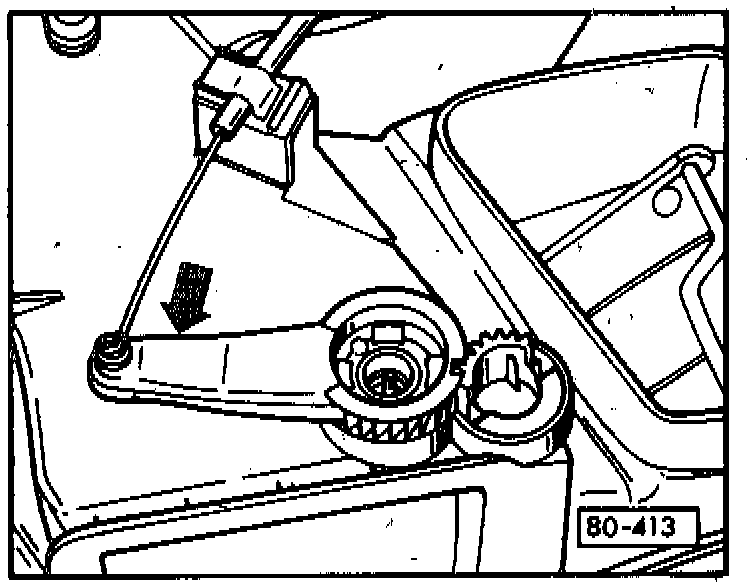

Fig. 2 - Central flap cable, adjusting

- install A/C (ventilation) control head
- adjust air distribution control knob to "INSTRUMENT PANEL VENT" position (against stop)
- connect central flap cable (black sleeve) to central flap lever
- push lever in direction of -arrow- to stop
- hold lever in this position and secure cable with cable retaining clip

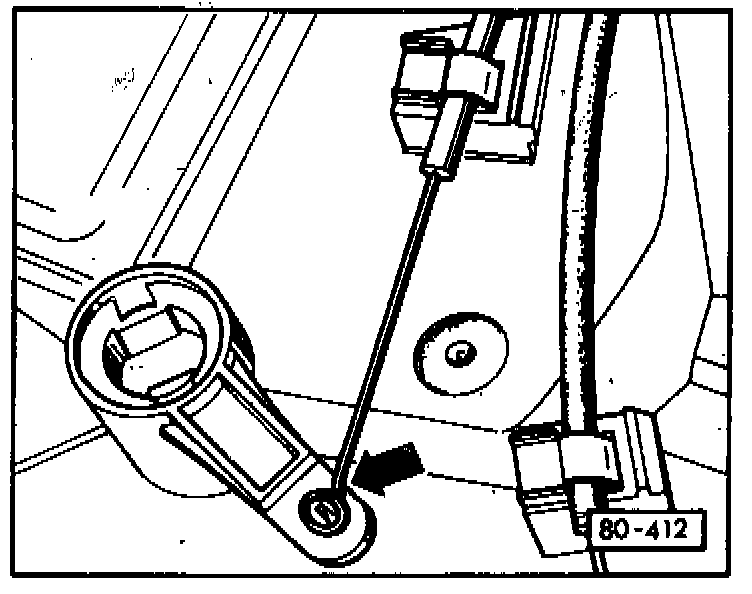

Fig. 3 - Temperature flap cable, adjusting

- install A/C (ventilation) control head
- adjust temperature control knob to full cold (against stop)
- connect temperature flap cable (blue sleeve) to temperature flap lever
- push lever in direction of -arrow- to stop
- hold lever in this position and secure cable with cable retaining clip
