Insufficient or No Heat Output

Test Conditions:




- Engine running, at normal operating temperature
- Fresh air blower -1- runs in all four speeds

Test Procedure:

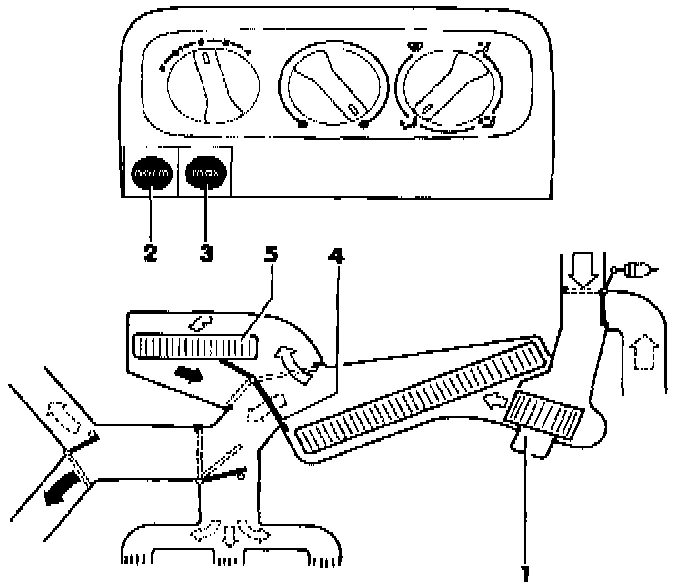

Set ventilation control knobs as shown in image.
- A/C switch -E35- OFF
- "Norm" button -2 not pressed
- "Max" button -3- not pressed

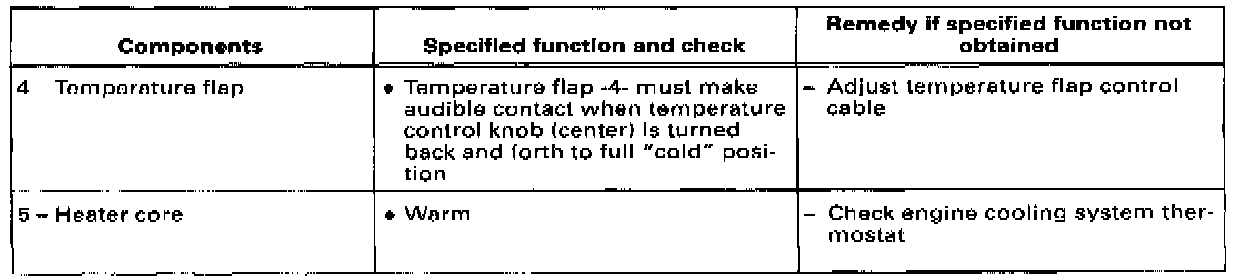

Check components and specified functions using above table (image).
