Emission Control Systems
>>
Evaporative Emissions System
Evaporative Emissions System

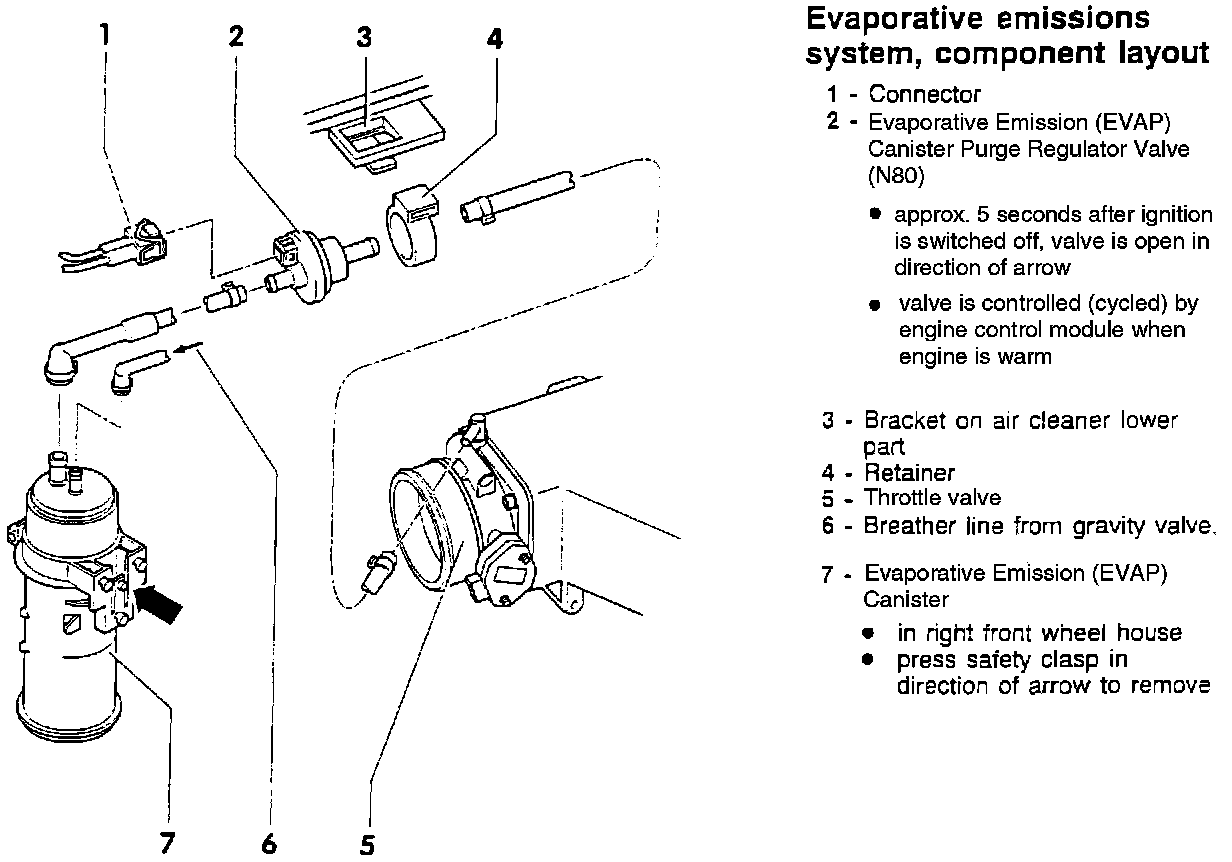

Evaporative System Component Layout:
