Dust and Pollen Filter - Removing and Installing
Group: 80Number: 92-02
Date: December 31, 1992
Subject:
Dust and Pollen Filter, Installing
Model(s):
Passat from 1991 M.Y.
Beginning January 1992, a dust and pollen filter is available from the Parts Dept. and can be installed in vehicles beginning with model year 1991.

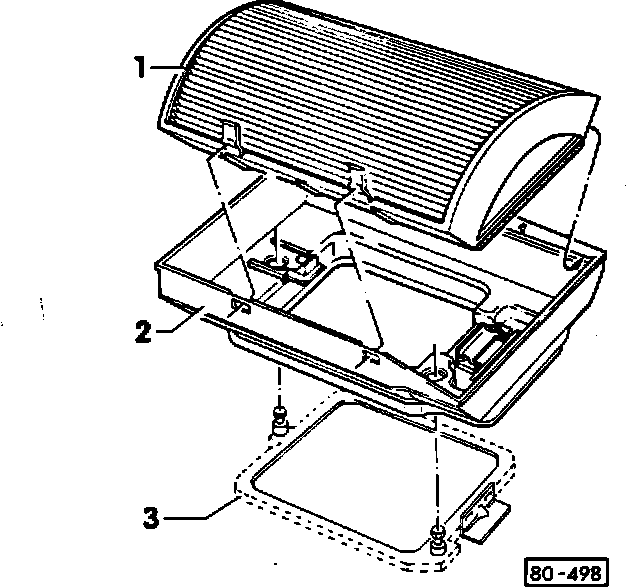

Dust and pollen filter, removing and installing
1 - Dust and pollen filter
2 - Filter housing
3 - Seal
Caution!
Part numbers are for reference only. Always check with your Parts Dept. for latest information.
For installation of the dust and pollen filter into vehicles from model year 1991, order the following parts.
Description Part Number
Filter 357 091 700
Housing 357 091 720
Water deflector trim, right 357 853 830 A 01C
Water deflector trim, center 357 853 845 A 01C
Water deflector trim, left 357 853 829 A 01C
In vehicles up to VIN 31 M 240 000, also install water deflector Part No. 357 819 415 A.
