Power Heated Mirrors - Wiring Diagram


9226vw01

Number: 92-09


February 29, 1992


Applies To:
PASSAT 1992


Subject:
Power heated mirrors

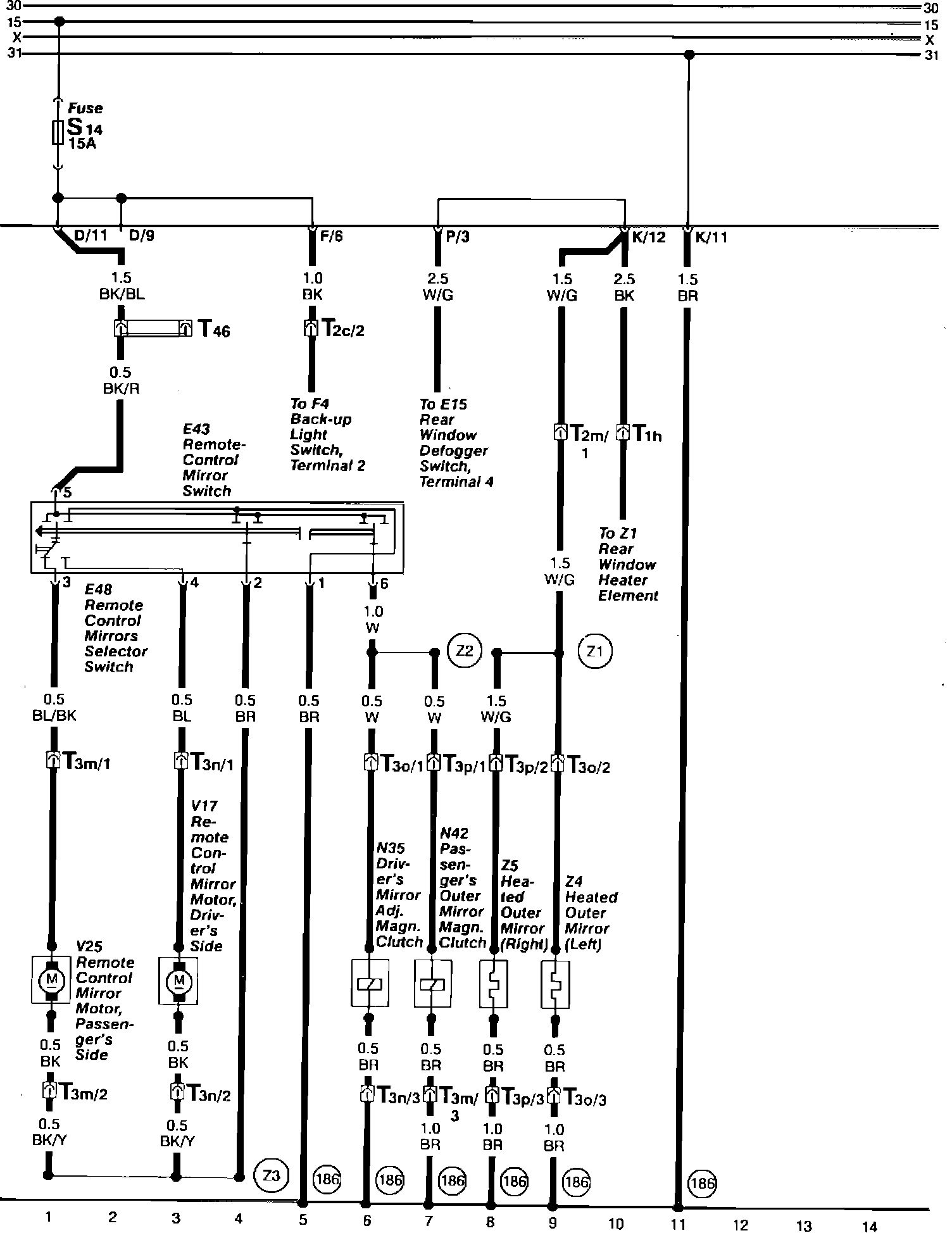

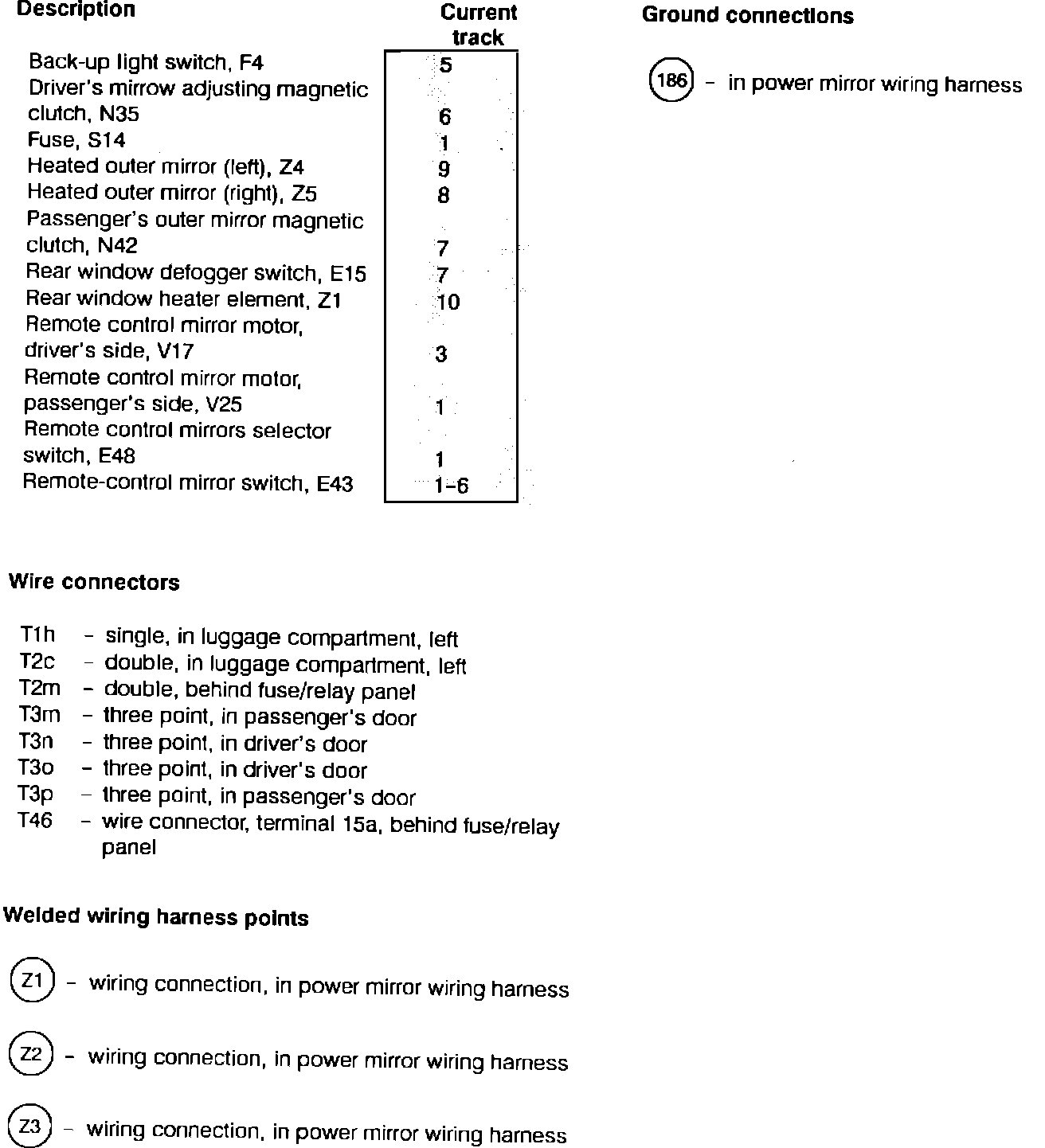

POWER HEATED MIRRORS WIRING DIAGRAM
