With Air Conditioning
Fresh Air and Blower -V2-, Removing and Installing:
- Shelf on right side, remove.
- Glove box, remove.

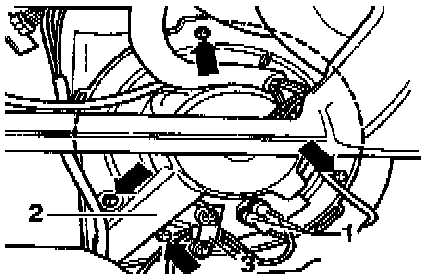

- Pull off connector -1-.
- Clamp -3- remove.
- Remove Qty. 4 screws -arrows- and remove fresh air blower -2- downward.
- Shelf on right side, remove.
- Glove box, remove.
- Pull off connector -1-.
- Clamp -3- remove.
- Remove Qty. 4 screws -arrows- and remove fresh air blower -2- downward.
