Muffler: Service and Repair

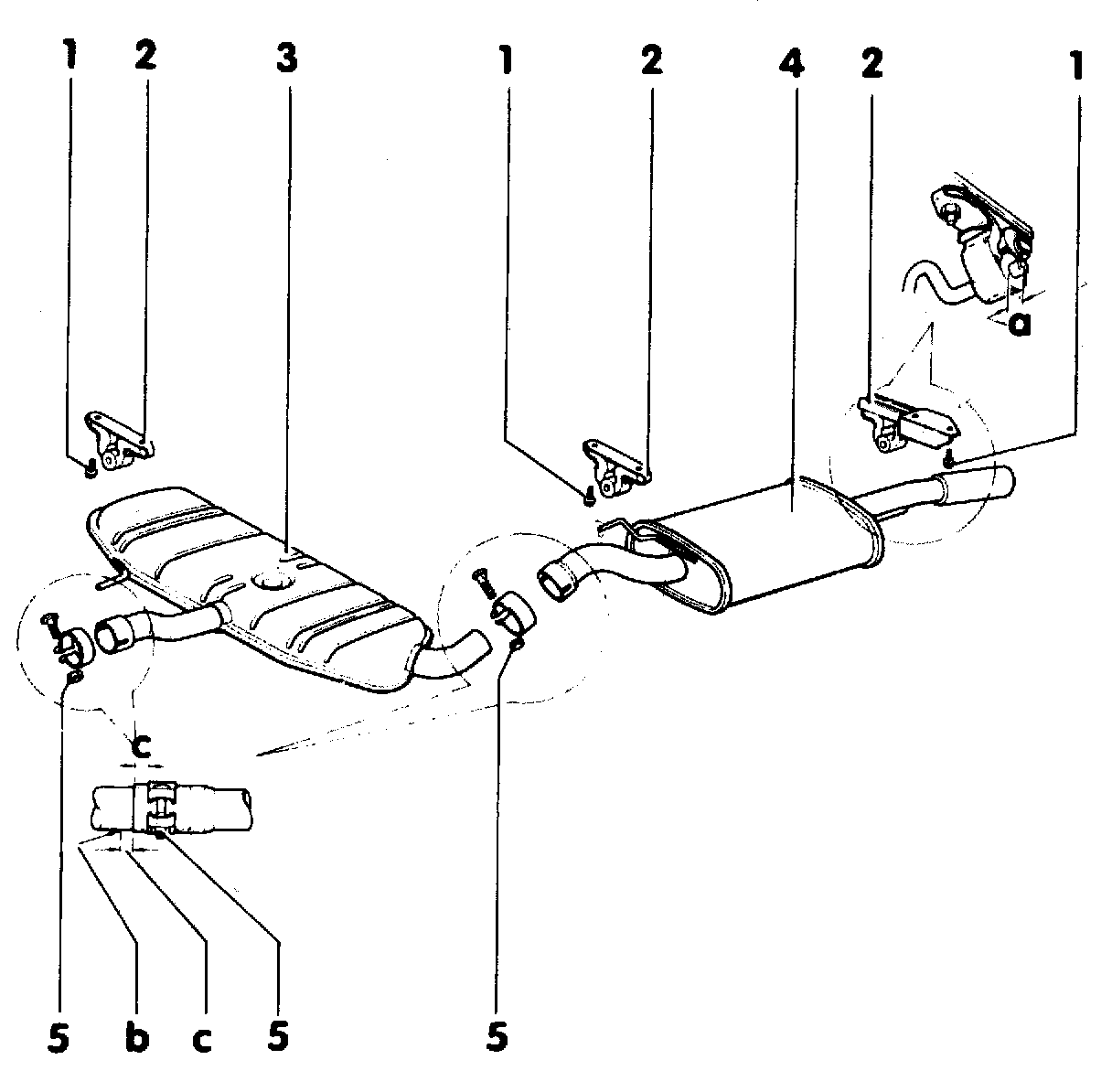

Muffler System Component Layout

NOTE: Align the system in a longitudinal direction using the dual clamp, such that dimension "a" is maintained.





a = approx. 10mm

b = marking on pipe

C = approx. 5 mm

1- 25Nm (18 ft lb)

2- Bracket

3- Middle muffler

4- Rear muffler
