Piston Ring Groove Clearance, Checking



Piston Ring Groove Clearance, Checking

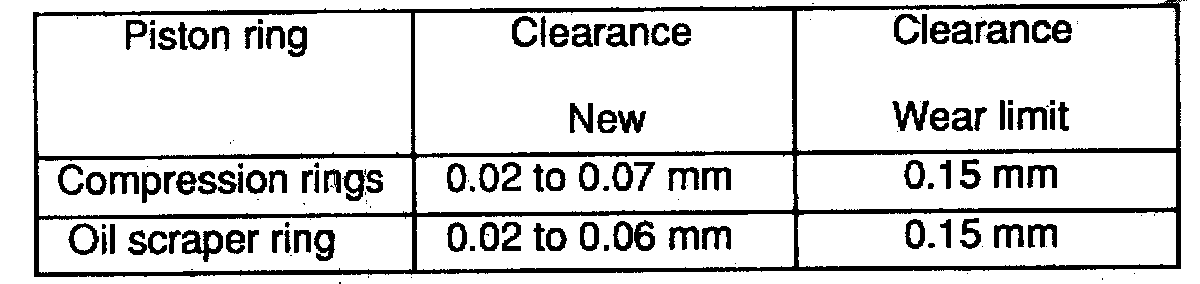

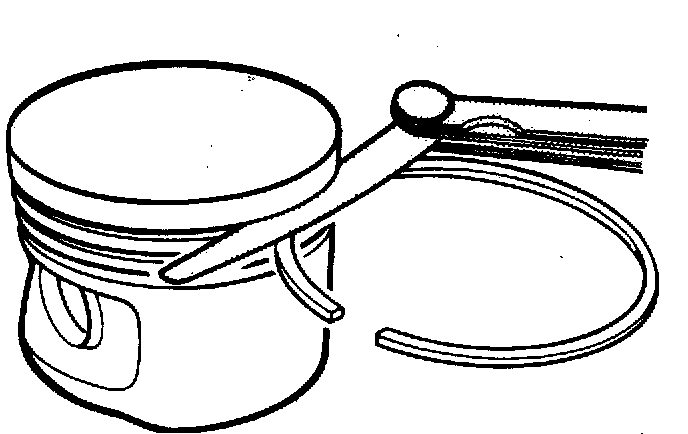

- Clean groove, insert ring as shown and measure gap using feeler gauges
