Rear

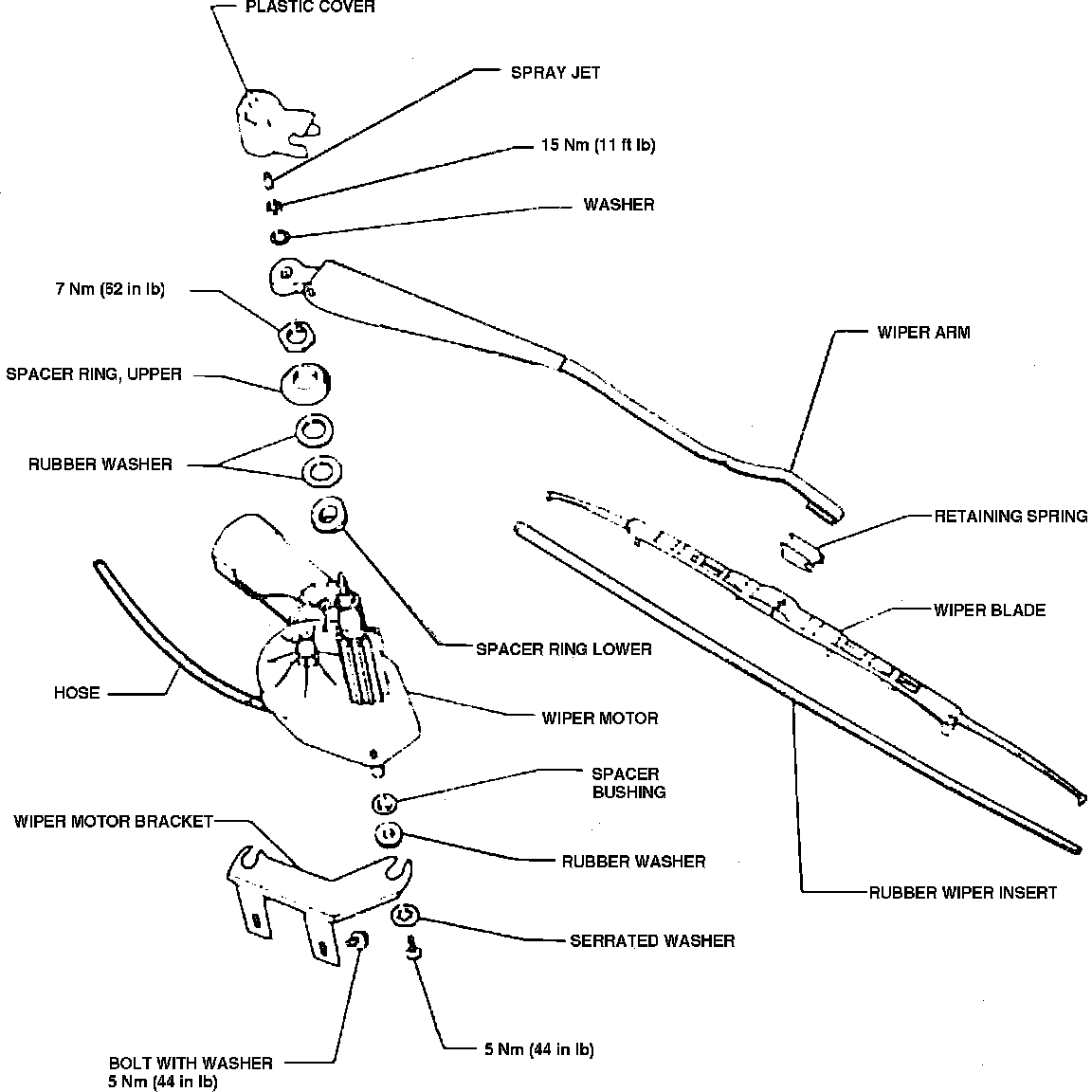

Fig. 10 Rear Windshield Wiper Assembly.:

Refer to Fig. 10 for wiper motor removal and installation.
