Radiator: Locations

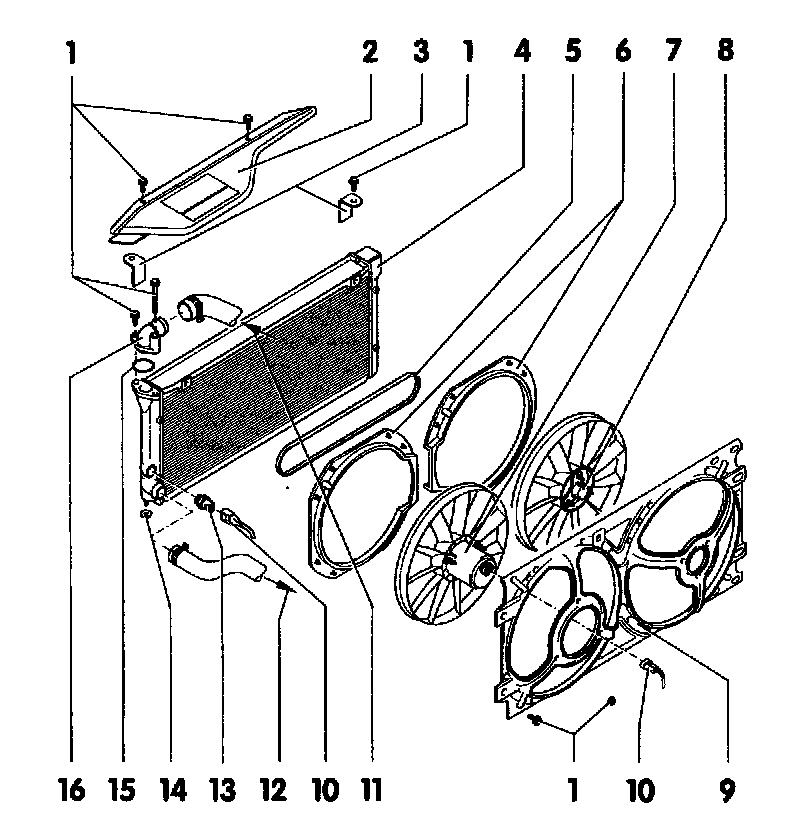

Radiator, cooling fan, assembly

CAUTION
Coolant/antifreeze must not be reused when replacing engine, cylinder head, cylinder head gasket, radiator and heater core.

WARNING
DO NOT re-use any fasteners that are worn or deformed in normal use. Many fasteners are designed to be used only once and become unreliable and may fail when used a second time. This includes, but is not limited to. nuts, bolts, washers. self-locking nuts or bolts, circlips, cotter pins. Always follow recommendations. For replacements always use new parts.

Note
- always replace all gaskets and 0-rings
- all components shown can be removed/installed with the engine in vehicle.
- during repairs, the original spring type hose clamps may be replaced by the screw type
- install spring clamps using pliers Hazint 799-5 or a commercial plier equivalent

1- 10 Nm (7 ft lb)
2- Cover
3- Upper radiator mount
note installation position
4- Radiator
removing and installing. Service and Repair
5- V-belt
6- Guide rings
note installation position
secured to fan Shroud 9 with clips
7- Fan (V7)
removing and installing. Service and Repair
8- Additional fan for cooling
removing and installing. Service and Repair
9- Fan shroud
note installation position
10- Connector
11- Coolant hose, upper
from upper connector on thermostat housing
12- Coolant hose, tower
to regulator on thermostat housing
13- Thermo-switch (F18) - 35 Nm (26 ft lb)
for coolant fan
switch temperatures:
1st stage:
on: 92-97°C (198-208°F)
off: 94-91°C (143-164°F)
2nd Stage:
on: 99-105°C (178-189°F)
off: 91-98°C (164-176°F)
14- Washer mount
15- 0-ring replace
16- Upper radiator hose flange
