System Diagram

Anti-Lock Brakes (ABS) 1992, 94 Corrado Engine Code AAA (6 Cyl)

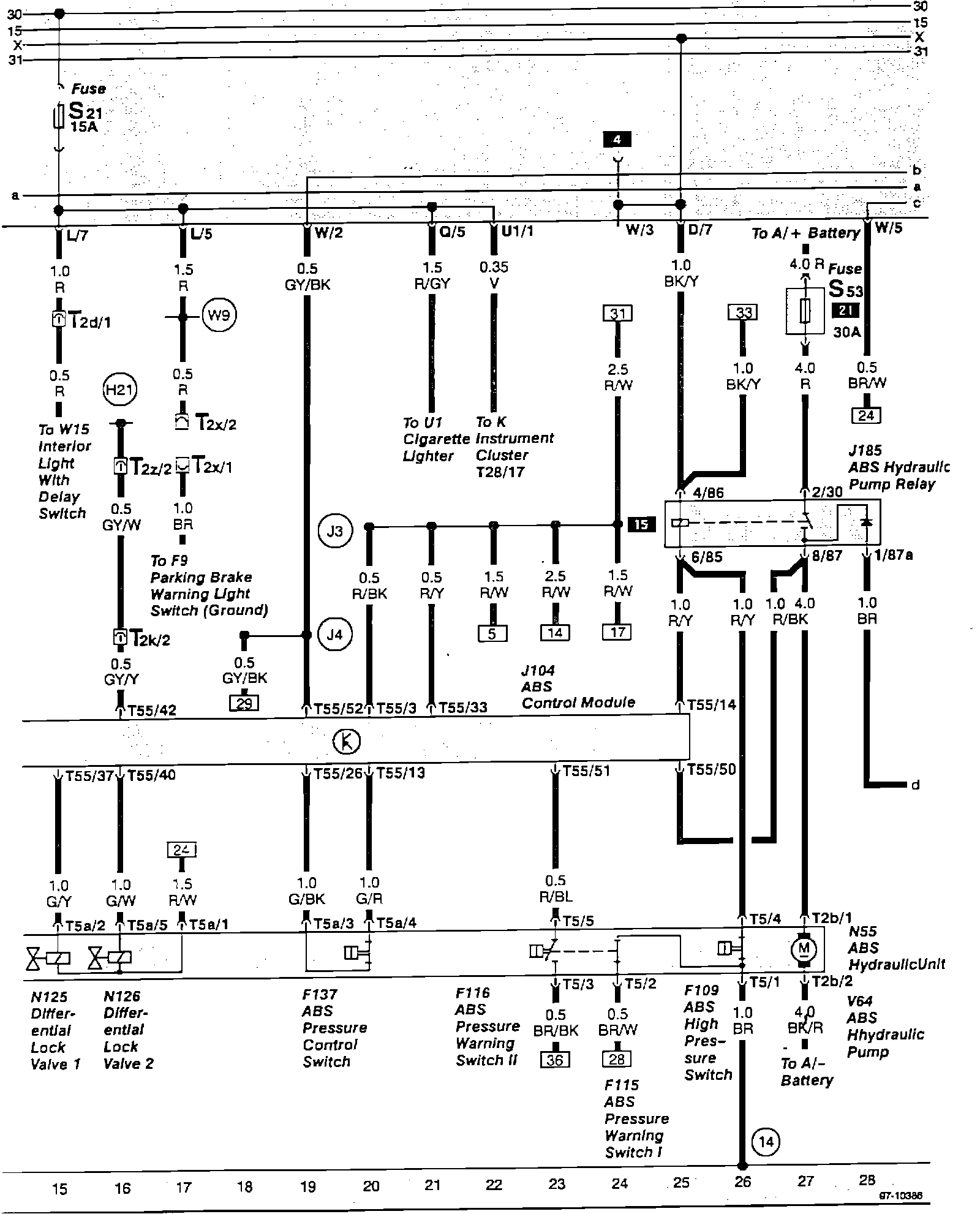

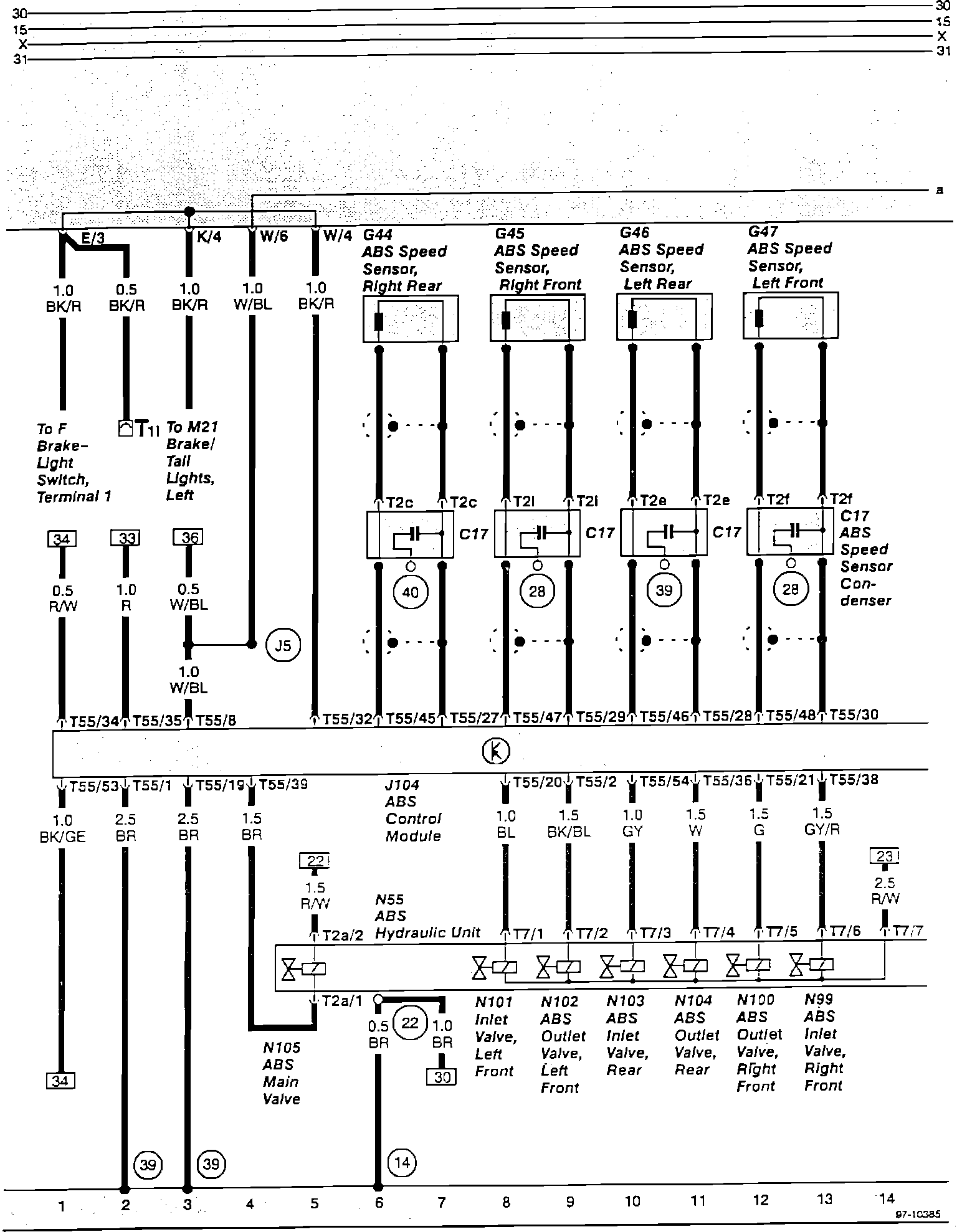

Track 1-14:

Track 15-28:

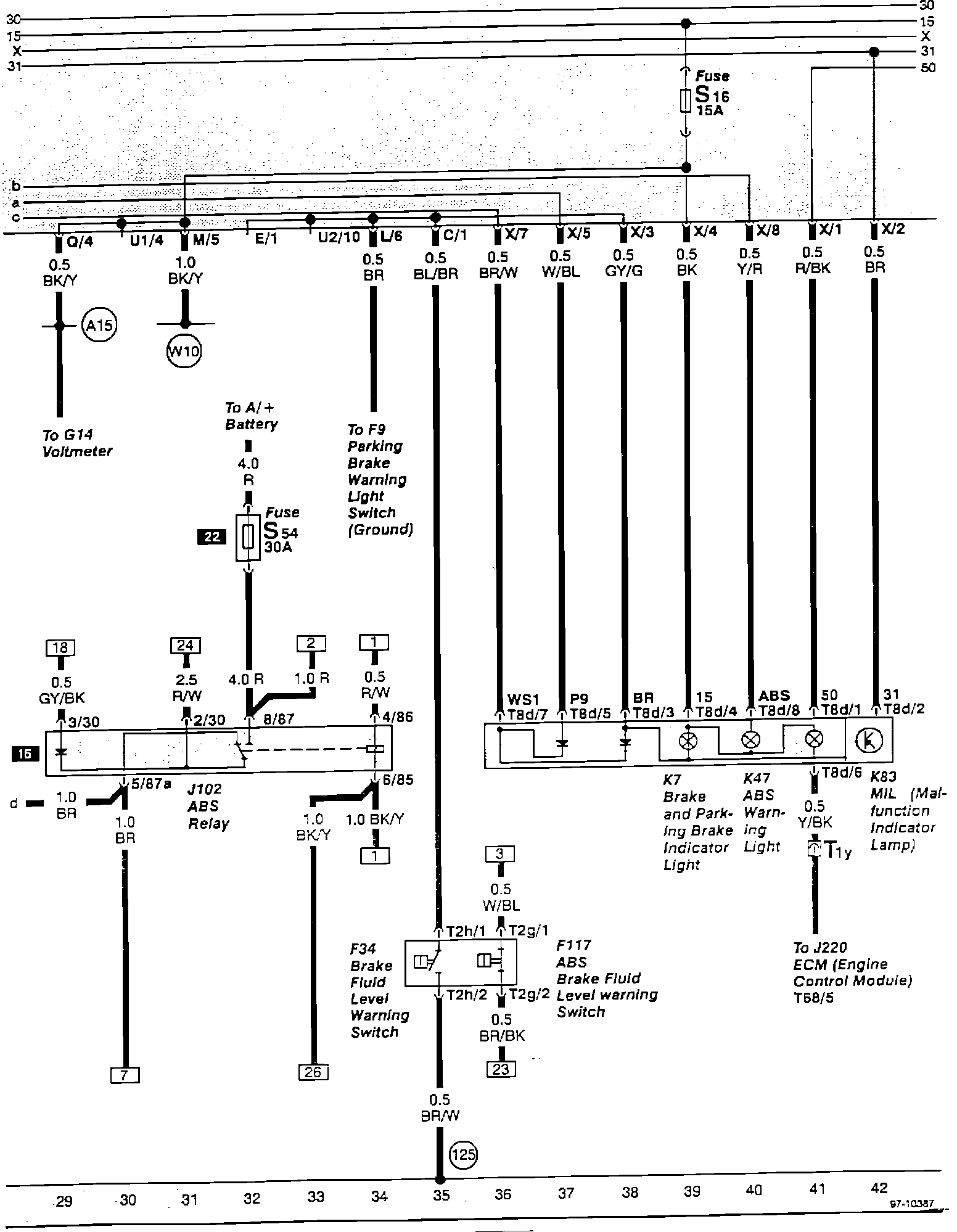

Track 29-42:

Description Current Track

ABS Brake Fluid Level Warning Switch, F117 36
ABS Control Module, J104 1, 25
ABS High Pressure Switch, F109 26
ABS Hydraulic Pump, V64 27
ABS Hydraulic Pump Fuse, S53 27
ABS Hydraulic Pump Relay, J185 25, 28
ABS Hydraulic Unit, N55 5, 27
ABS Inlet Valve, Left Front, N101 8
ABS Inlet Valve, Rear, N103 10
ABS Inlet Valve, Right Front, N99 13
ABS Main Valve, N105 5
ABS Outlet Valve, Left Front, N102 9
ABS Outlet Valve, Right Front, N100 12
ABS Outlet Valve, Rear, N104 11
ABS Pressure Control Switch, F137 20
ABS Pressure Warning Switch I, F115 24
ABS Pressure Warning Switch II, F116 23
ABS Speed Sensor Condenser, C17 6, 13
ABS Speed Sensor, Left Front, G47 12, 13
ABS Speed Sensor, Left Rear, G46 10, 11
ABS Speed Sensor, Right Front G45 8, 9
ABS Speed Sensor, Right Rear, G44 6, 7
ABS Relay. J102 29, 34
ABS Valves Fuse, S54 32
ABS Warning Light, K47 40
Brake and Parking Brake Indicator Light, K7 39
Brake Fluid Level Warning Switch, F34 35
Diflerential Lock Valve 1, N125 15
Difterential Lock Valve 2, N126 16
Fuse, S16, 15A 39
Fuse, S21, 15A 15
MIL (Maltunction Indicator Lamp), K83 41

Wire Connectors

T1i - single, behind relay panel plate
T1y - single. behind relay panel plate
T2a - double, on ABS Main Valve
T2b - double, on ABS Hydraulic Purno
T2c - double. rear seat, right
T2d - double, on A-pillar, left, near relay panel
T2i - double, on firewall, right
T2e - double, rear seat, left
T2f - double, on firewall, left
T2g - double, on ABS Brake Fluid Level Warning Switch
T2h - double, on Brake Fluid Level Warning Switch
T2k - double, near gearshift lever
T2x - double, below selector lever cover
T2z - double. below selector lever cover
T5 - five point, on ABS Hydraulic Unit
T5a - five point, on ABS Hydraulic Unit
T7 - seven point, on ABS Hydraulic Unit
T8d - eight point. on Brake and Parking Brake indicator Light
T28 - twenty-eight point, on Instrument Cluster
T55 - fifty-live point, on ABS Control Module
T68 - sixty-eight point, on ECM (Engine Control Module)


Welded Wiring Harness Points

A15 - plus connection (15), in instrument wiring harness
J1 - plus connection (30), in ABS wiring harness
J4 - wire connection (diagnostic), in ABS wiring harness
J5 - wire connection -2-, In ABS wiring harness
W9 - Plus connection (30), in rear wiring harness
W10 - Plus connection (15), in rear wiring harness


Ground Connections

14 - ground connection, on transmission
22 - ground connection, on hydraulic unit
28 - ground connection on bulkhead
39 - ground-connection, below rear seat bench. left
40 - ground-connection, below rear seat bench, right
86 - ground-connection -1-, in rear wiring harness
125 - ground connection -3-, in headlight wiring harness
