Corrado L4-1781cc 1.8L SOHC SC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Mechanical Diagrams
Mechanical Diagrams

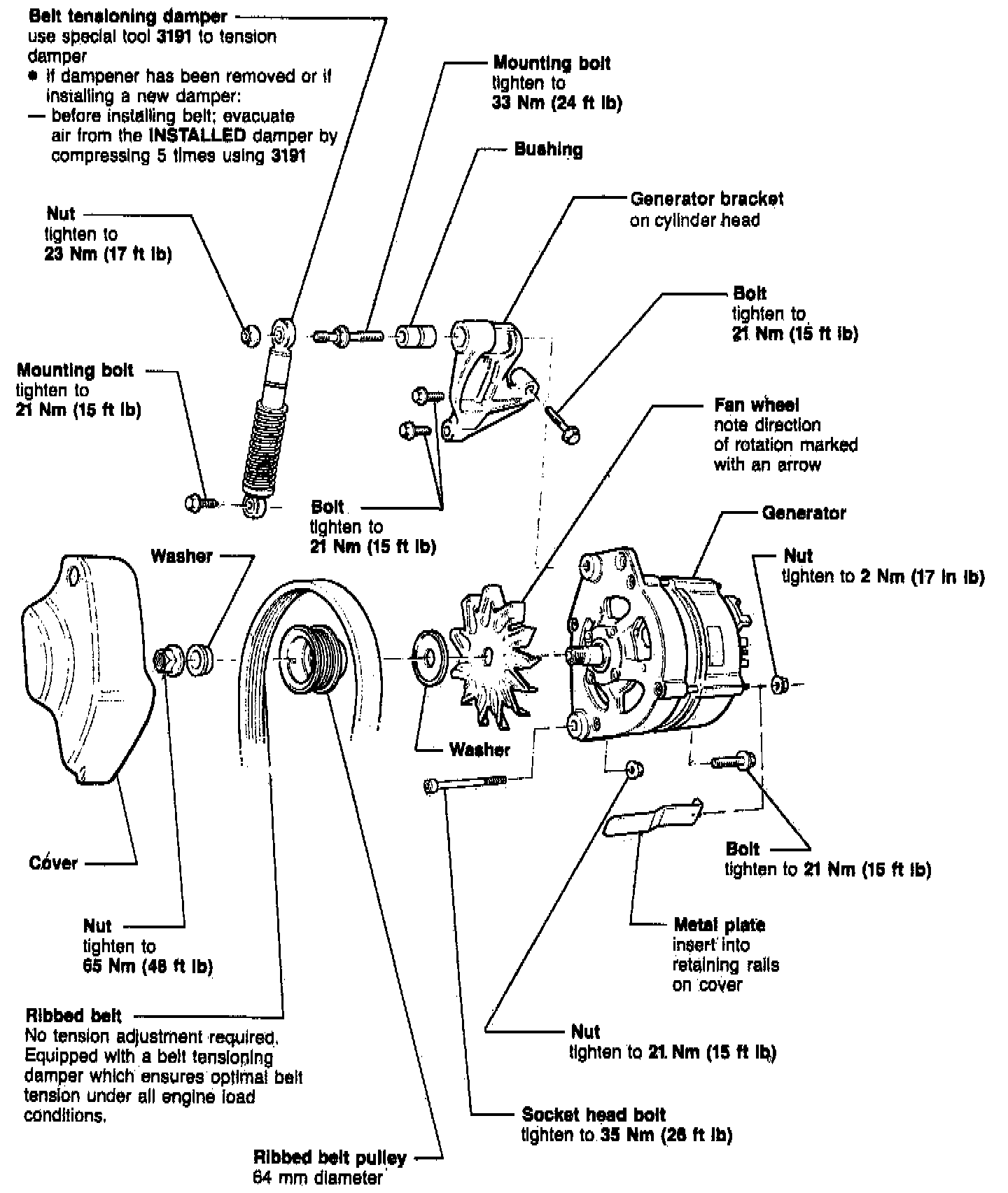

Generator Components, Layout:
