A/T - Valve Body Conductor Strip w/Fluid Temp Sensor

Group: 37

Number: 96-01

Date: Mar. 1, 1996

Subject:
Valve Body Conductor Strip with Transmission Fluid Temperature Sensor, Removing and Installing

Model(s):
Corrado w/Auto. Trans. 096 1990 -->

If necessary, the conductor strip can be replaced with the transmission installed without removing the valve body.

Removing

- Drain Automatic Transmission Fluid (ATF).

- Raise vehicle and remove protective plate beneath ATF pan.

- Disconnect conductor strip harness connector.





- Remove ATF pan and ATF screen.

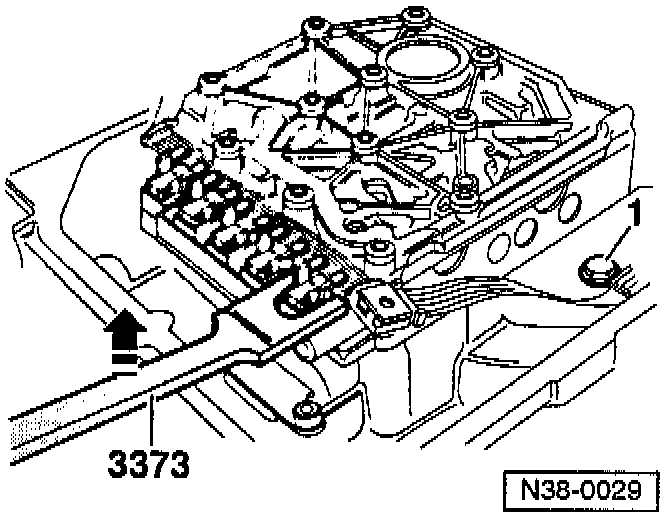

- Place special tool 3373 into position on stop under solenoid valve connector, and pry conductor strip off in direction shown (arrow).

- Remove bolt -1- and remove conductor strip.

Note:
If The locating points are damaged, the valve body must be replaced.

Installing

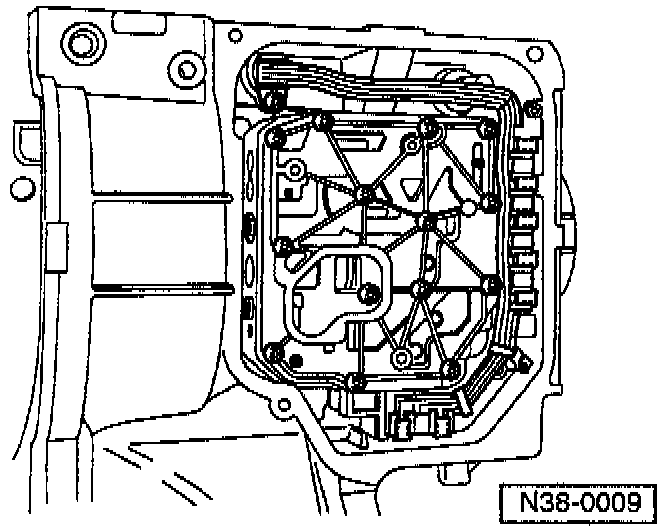

- Route conductor strip as shown; do not kink or twist.

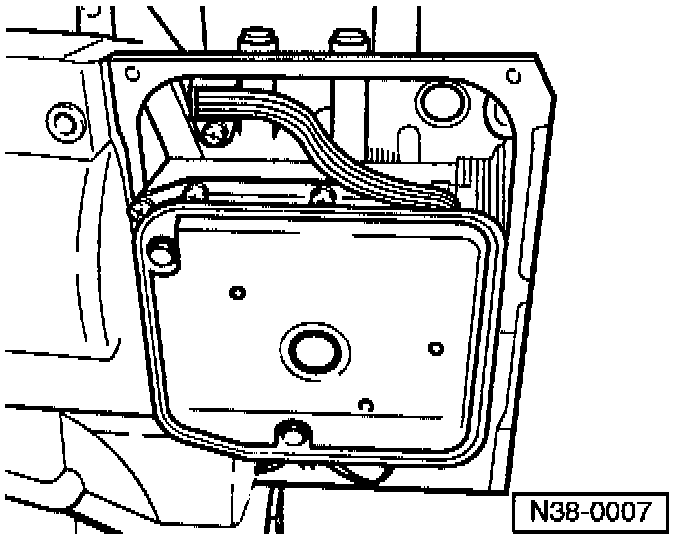

- Press gasket into ATF screen before installing screen.

- Replace ATF pan gasket.

Clip bushing into gasket.

Tightening torques

Conductor strip to transmission housing 10 Nm (7 ft.lb)

ATF screen to valve body 8 Nm (71 in.lb)

ATF pan to transmission housing 12 Nm (9 ft.lb)

- Add 3 liters (3.2 US qt.) ATF, check ATF level, and top up as necessary -> Repair Manual microfiche, Automatic Transmission 096, Repair Group 37.
