Routing W/O AC

Belt Routing, Vehicles Without Air Conditioning

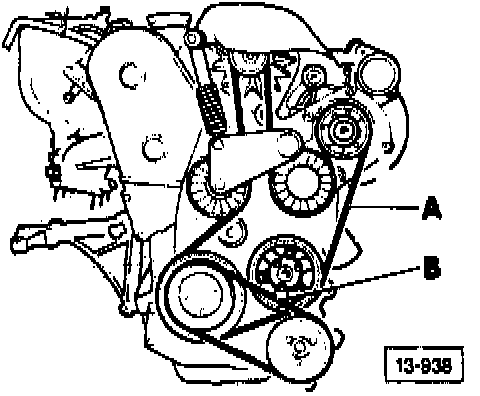

A - Ribbed belt for: Generator, G-charger and water pump
B - Vee belt for: power steering pump

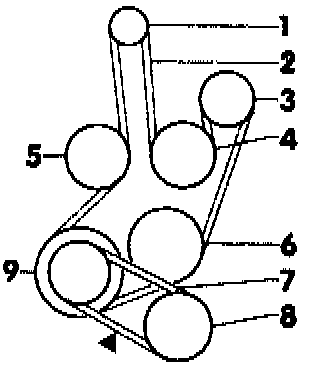

1 - Ribbed belt pulley - Generator
2 - Ribbed belt
- 21.36 mm wide x 1653 mm circumference (0.84 in. wide x 65.0 in. circumference)
3 - Ribbed belt pulley - G-charger.
4 - Ribbed belt idler pulley
5 - Ribbed belt tensioning pulley
6 - Ribbed belt pulley - Water pump
7 - Vee belt
- 9.5 mm wide x 663 mm circumference (0.37 in. wide x 26.1 in. circumference)
- arrow = tension checking point
8 - Vee belt pulley - Power steering pump
9 - Combination vee belt and ribbed belt pulley - crankshaft
